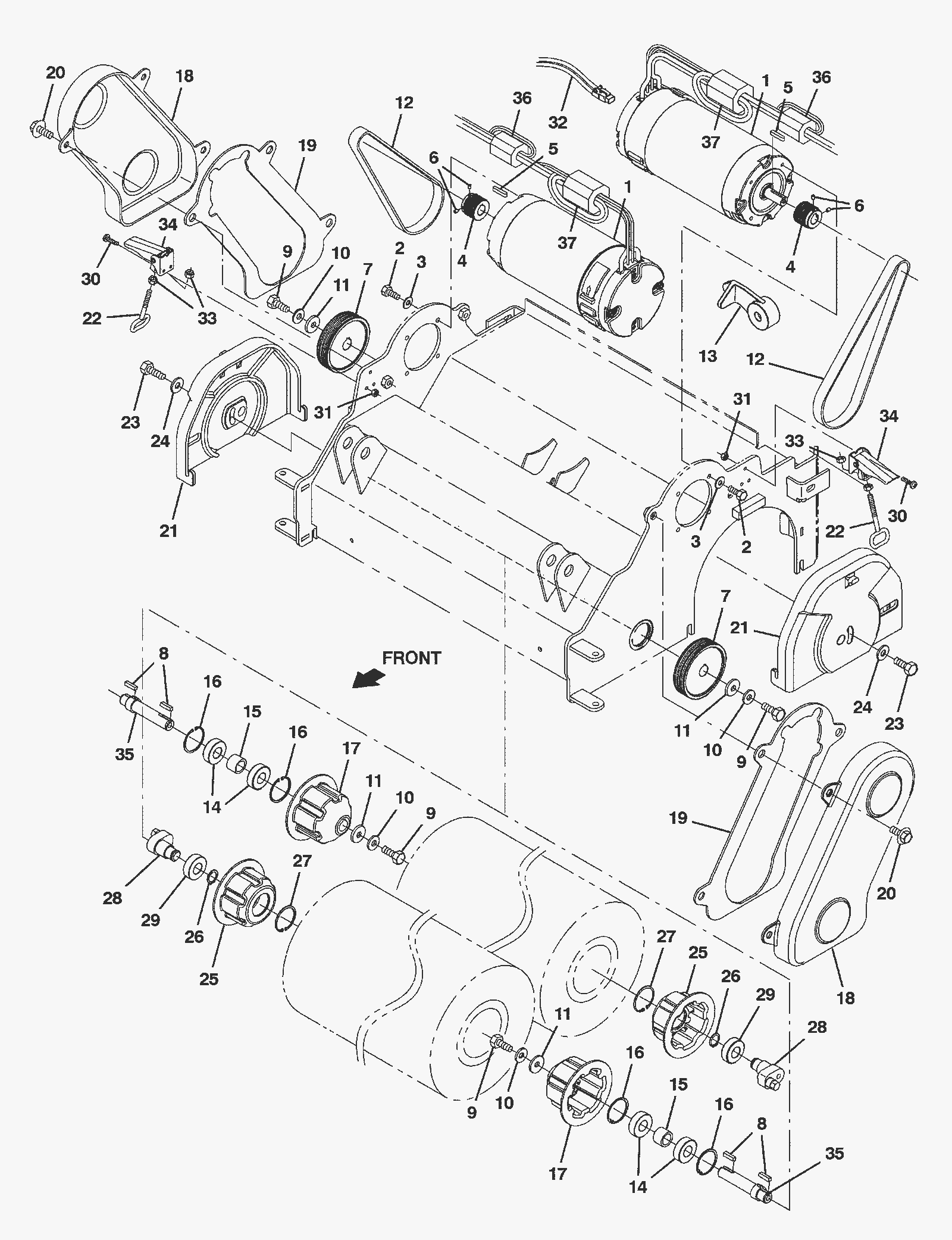

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
775-0468
|
36V 22amp 1HP electric motor |
2 |
(includes 38-40) |
|
N/S |
275-1277
|
Brush motor kit |
1 |
|
|
N/S |
375-6016
|
Motor bearing |
1 |
|
|
N/S |
675-9741
|
VR, BEARING, MOTOR, ELE |
1 |
|
|
2 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
8 |
|
|
3 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
|
4 |
275-7663
|
Sheave (Tennant Industrial)(OBSOLETE) |
2 |
|
|
5 |
275-1468
|
Square keyway |
2 |
|
|
6 |
475-8070
|
SCREW, SET, SOC, 08-32 X 0.25, NL SS (Tennant Industrial) |
4 |
|
|
7 |
275-1278
|
Sheave (Tennant Industrial) |
2 |
|
|
8 |
175-8818
|
Square keyway |
4 |
|
|
9 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
4 |
|
|
10 |
475-9390
|
WASHER, BELLEVILLE, .31 SS (Tennant Industrial) |
4 |
|
|
11 |
175-7920
|
Washer M8 flat stainless steel |
4 |
|
|
N/S |
275-1279
|
Belt kit with tool (pkg of 2) (Tennant Industrial) |
1 |
(includes 12-13) |
|
12 |
575-4050
|
BELT, DRIVE, 7GRV [7PJ] (Tennant Industrial) |
2 |
|
|
13 |
575-4883
|
TOOL, INSTALLATION, BELT (Tennant Industrial) |
1 |
|
|
14 |
175-9094
|
Ball bearing |
4 |
|
|
15 |
275-1281
|
Spacer (Tennant Industrial) |
2 |
|
|
16 |
175-9098
|
Basic retaining ring (Tennant Industrial) |
4 |
|
|
17 |
275-1282
|
Brush drive plug (Tennant Industrial) |
2 |
|
|
18 |
275-1283
|
Belt cover (Tennant Industrial) |
2 |
|
|
19 |
275-1284
|
Belt cover gasket (Tennant Industrial) |
2 |
|
|
20 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
6 |
|
|
21 |
275-1285
|
Idler cover (Tennant Industrial) |
2 |
|
|
22 |
275-8633
|
HOOK WLDT, LATCH (Tennant Industrial) |
2 |
|
|
23 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
2 |
|
|
24 |
475-9390
|
WASHER, BELLEVILLE, .31 SS (Tennant Industrial) |
2 |
|
|
N/S |
275-1289
|
Cylindrical brush hub kit (Tennant Industrial) |
2 |
(includes 25-29) |
|
25 |
275-1287
|
Brush idler plug (Tennant Industrial) |
2 |
|
|
26 |
175-2472
|
Retaining ring |
2 |
|
|
27 |
175-9098
|
Basic retaining ring (Tennant Industrial) |
2 |
|
|
28 |
275-1286
|
Brush adjustment (Tennant Industrial) |
2 |
|
|
29 |
275-1288
|
Ball bearing (Tennant Industrial) |
2 |
|
|
30 |
999-9113
|
Screw M4-.7 x 16mm pan head phillips stainless steel |
6 |
|
|
31 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
6 |
|
|
32 |
275-7667
|
Wire adapter harness (Tennant Industrial) |
1 |
|
|
33 |
999-0740
|
Nut M5-.8 hex stainless steel |
4 |
|
|
34 |
575-2393
|
LATCH (Tennant Industrial) |
2 |
|
|
35 |
275-1280
|
Drive shaft (Tennant Industrial) |
2 |
|
|
36 |
575-0329
|
INDUCTOR, 12.7MMID [156 IMP AT 25MHZ] (Tennant Industrial) |
2 |
|
|
37 |
475-3303
|
INDUCTOR, 18MMID [225 IMP AT 25MHZ] |
2 |
|
|
