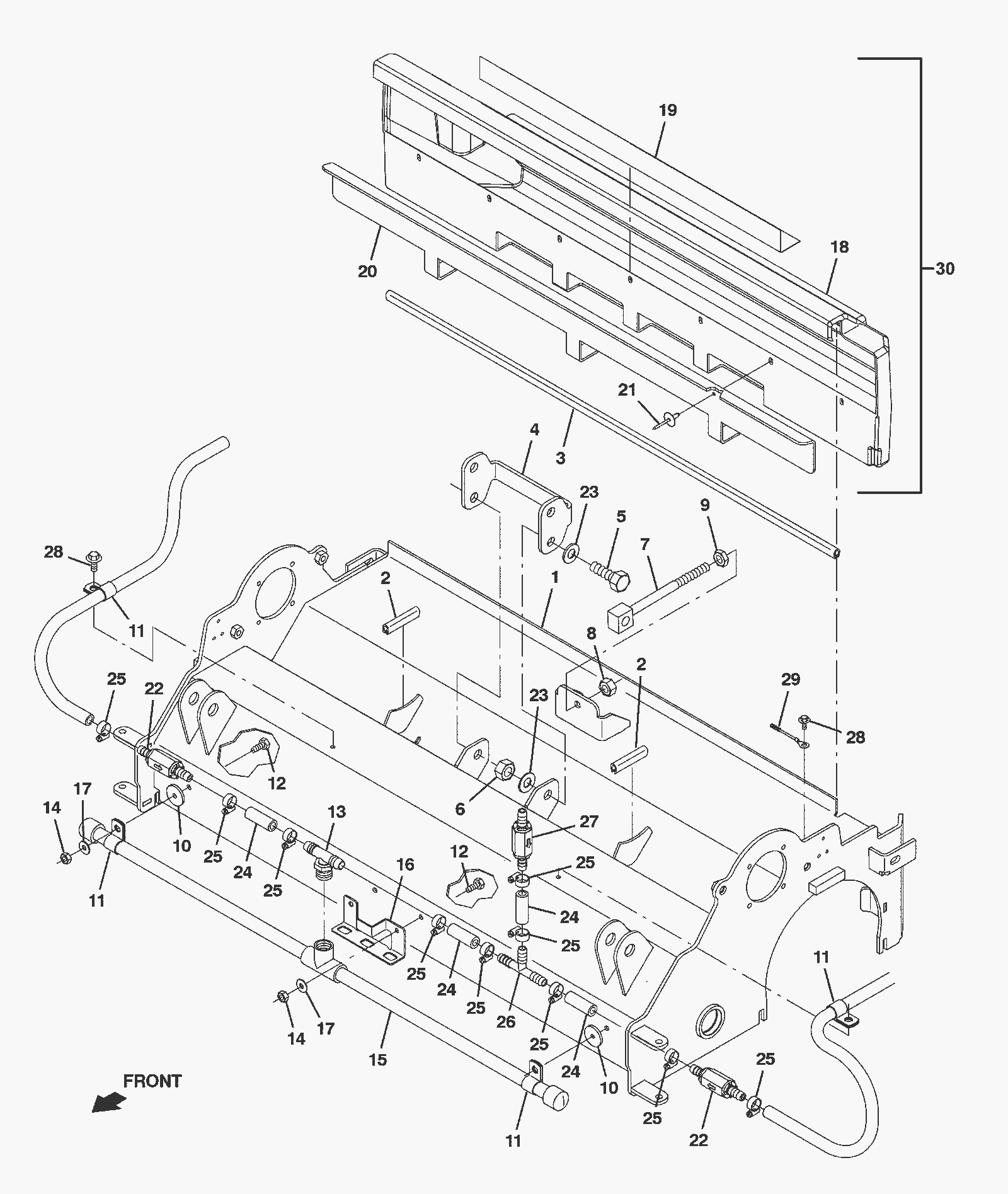

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
775-0462
|
Cylindrical Scrub Head Weldment |
1 |
|
|
2 |
275-8203
|
Molding |
2 |
|
|
3 |
275-1269
|
3 foot trim molding |
1 |
|
|
4 |
275-1270
|
Cylindrical head lift channel (Tennant Industrial) |
1 |
|
|
5 |
175-9656
|
Screw 12-1.75 x 40 hex head stainless steel |
2 |
|
|
6 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
2 |
|
|
7 |
275-1271
|
Bolt M10-1.5 x 140mm eye (Tennant Industrial) |
1 |
|
|
8 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
1 |
|
|
9 |
999-1625
|
Nut M10-1.5 hex jam stainless steel |
1 |
|
|
10 |
275-1464
|
WASHER, FLAT, 0.25B 1.12D .12, SS (Tennant Industrial) |
2 |
|
|
11 |
175-0559
|
P clamp |
4 |
|
|
12 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
4 |
|
|
13 |
175-8663
|
Fitting 1/8 X 3/8 |
1 |
|
|
14 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
4 |
|
|
15 |
775-0464
|
Spray manifold assembly |
1 |
|
|
16 |
775-0465
|
Manifold mounting bracket |
1 |
|
|
17 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
30 |
275-7347
|
Debris tray kit (Tennant Industrial) |
1 |
(includes 18-21) |
|
18 |
275-1274
|
Debris hopper (Tennant Industrial) |
1 |
|
|
19 |
275-1275
|
Perforated steel angle (Tennant Industrial) |
1 |
|
|
20 |
275-1276
|
Debris tray lip (Tennant Industrial) |
1 |
|
|
21 |
175-5936
|
Pop rivet |
7 |
|
|
22 |
775-0466
|
Check Valve |
2 |
|
|
23 |
999-1346
|
Washer M12 flat stainless steel |
4 |
|
|
24 |
275-4939
|
1 foot PVC hose clear |
1 |
|
|
25 |
475-0119
|
CLAMP, HOSE, WORMDRIVE, SS, 0.22-0.63D |
10 |
|
|
26 |
175-6943
|
FITTING, PLSTC, TEE, BM06/BM06/BM06 (Tennant Industrial) |
1 |
|
|
27 |
775-0467
|
Vent valve |
1 |
|
|
28 |
999-0778
|
Screw M6-1 x 10mm hex head |
2 |
|
|
29 |
375-7740
|
Electrical harness |
1 |
|
|
