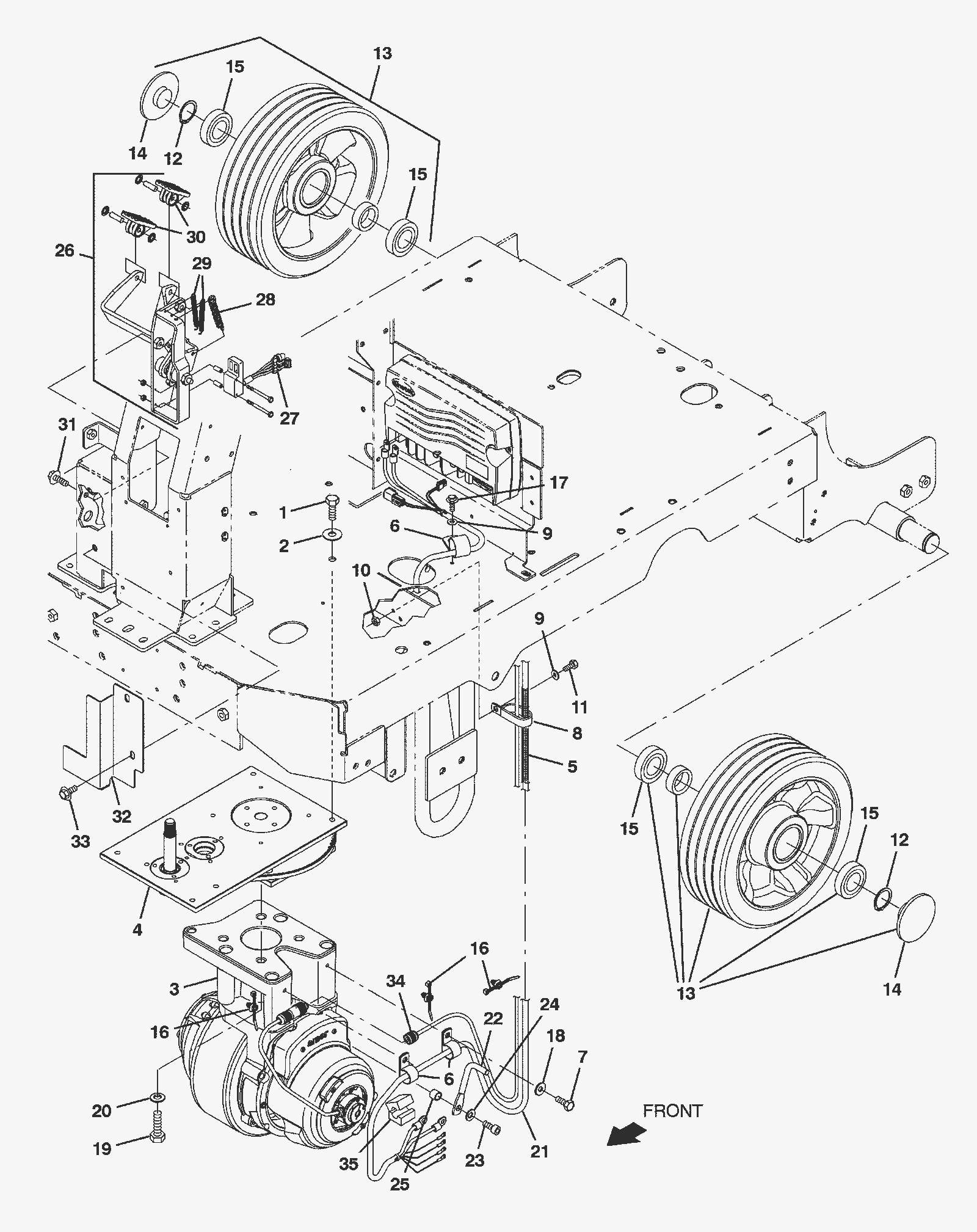

Wheels and Directional Pedal Assembly

#PartDescription ReqNotesAvailability
1 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel 3
2 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 3
3 775-0457 36V 250 mm drive wheel with encoder 1 (includes N/S)
N/S 775-0458 Wheel motor brush kit 1
4a 275-2734 Drive wheel control assembly (Tennant Industrial) 1 (Before SN 010041)
4b 275-2734 Drive wheel control assembly (Tennant Industrial) 1 (After SN 010040)
5 275-2810 SLEEVE, NYL, 1.22ID 35.0L (Tennant Industrial) 1
6 175-9979 Clamp (Tennant Industrial) 3
7 999-1415 Screw M8-1.25 x 12mm hex head stainless steel 2
8 175-3171 Cable clamp 1
9 999-0016 Washer 1/4 flat plain finish 1
10 999-0497 Nut M6-1 nylon insert lock stainless steel 1
11 999-1312 Screw M6-1 x 20mm hex head stainless steel 1
12 275-7559 Retaining ring (Tennant Industrial) 2
13 275-7558 Tire assembly (urethane) (Tennant Industrial) 2 (includes 14-15)
14 275-2739 Hub cap 1
15 375-4062 Ball bearing (Tennant Industrial) 2
17 175-0536 Bolt M6-1 x 20mm hex head thread forming 1
18 999-0024 Washer 5/16 flat stainless steel 2
19 475-8612 SCREW, HEX, M12 X 1.75 X 45, 10.9 (Tennant Industrial) 4
20 999-1346 Washer M12 flat stainless steel 4
21 775-0460 Propel electrical harness 1
22 275-7561 Support rod 1
23 475-8076 SCREW, SOC, M10 X 1.50 X 45, 12.9 (Tennant Industrial) 1
24 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
25 275-9799 Bushing 1
26 275-9358 Pedal assembly 1 (includes 27-30)
27 275-7039 Hall sensor 1
28 275-9360 Extension spring 1
29 275-7040 Extension spring (Tennant Industrial) 2
30 475-3183 PEDAL, FOOT, W/ TREAD 2
31 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) 3
32 775-0461 Foot guard plate 1
33 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 2
34 375-7723 Traction encoder cable 1
35 575-0368 INDUCTOR, 32.5MML [FERRITE 25-300MHZ] (Tennant Industrial) 1
