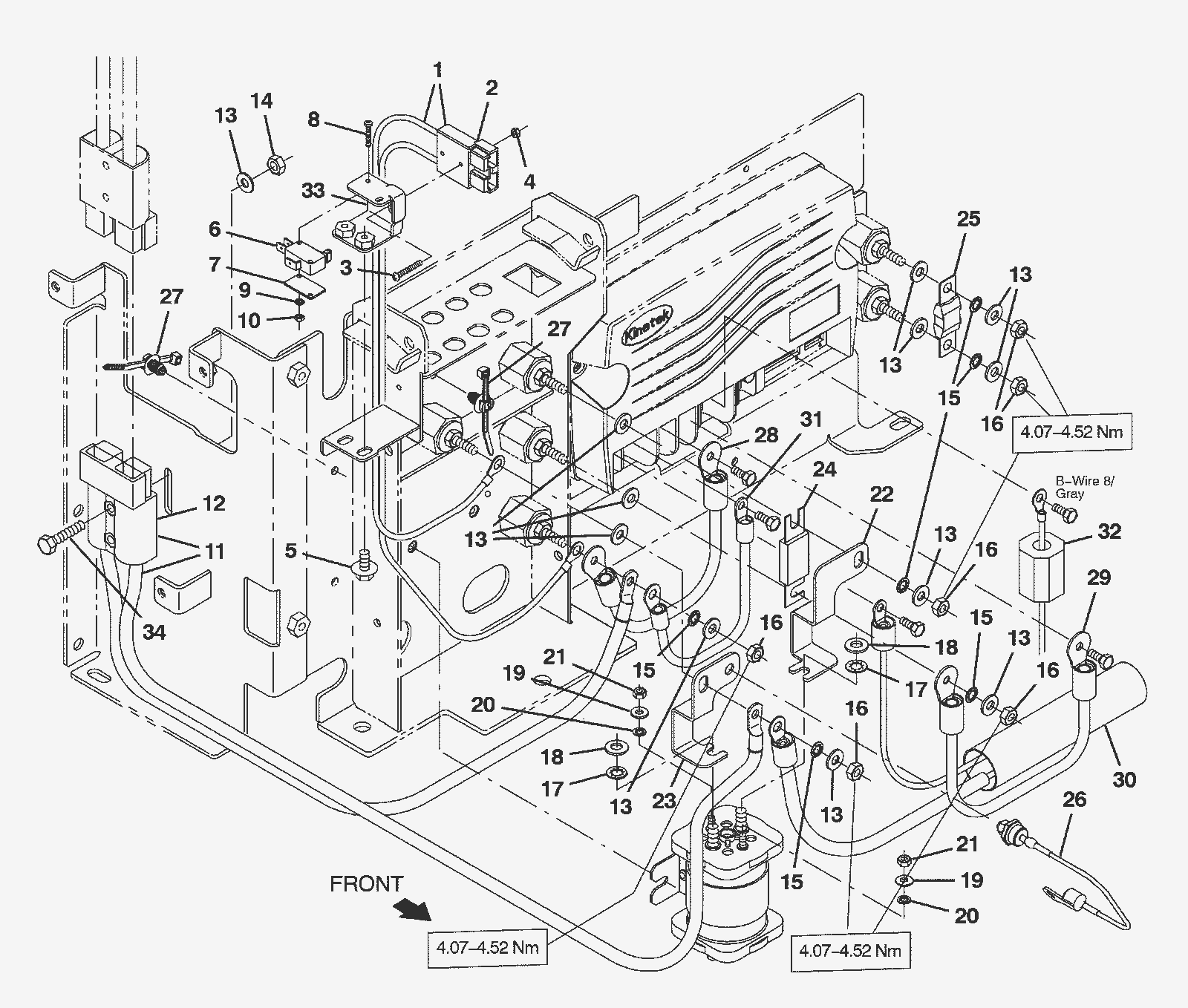

Electrical Box Assembly

#PartDescription ReqNotesAvailability
1 275-7750 Cable assembly (Tennant Industrial) 1 (includes 2)
2 991-2105 SB50 50amp charger plug with pins (gray) 1
3 275-8223 SCREW, PAN, PHL, 06-32 X 1.00, G1 (Tennant Industrial) 2
4 175-3224 Nut 6-32 hex lock 2
5 999-1383 Screw M6-1 x 16mm hex head stainless steel 2
6 175-1199 Snap switch 1
7 175-1200 Switch backing plate 1
8 999-1040 Screw M3-.5 x 20mm pan head 2
9 999-0479 Washer #4 internal star lock zinc plated 2
10 999-0768 Nut M3-.5 hex coarse thread plain finish 2
11 275-2711 175amp cable assembly (Tennant Industrial) 1 (includes 12)
12 991-2112 175amp charger plug with pins (gray) SB175 1
13 999-0016 Washer 1/4 flat plain finish 17
14 999-0469 Nut M6-1 nylon insert lock zinc plated 2
15 999-0238 Washer 1/4 internal star lock zinc plated 12
16 999-0190 Nut 1/4-20 hex plain finish 6
17 999-1053 Washer 5/16 internal star lock stainless steel 2
18 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
19 999-0998 Washer #10 flat stainless steel 1
20 999-1026 Washer #10 internal lock stainless steel 2
21 275-8219 Nut 10-32 hex head stainless steel 2
22 775-0449 Busbar 1
23 775-0450 Busbar 1
24 175-0847 FUSE, 150A, 0.88 2.4L [SLO-BLO] (Tennant Industrial) 1
25 775-0451 58V 125amp fuse 1
26 375-7777 Electrical harness 1
27 275-5197 Fir tree clip 7
28 775-0452 Battery negative electrical cable 1
29 775-0453 Battery positive electrical cable 1
30 775-0454 Shunt positive electrical cable 1
31 775-0455 Shunt negative electrical cable 1
32 575-0329 INDUCTOR, 12.7MMID [156 IMP AT 25MHZ] (Tennant Industrial) 1
33 775-0456 Switch mounting bracket weldment 1
34 175-0574 Bolt 6mm-1 x 35 hex head 2
