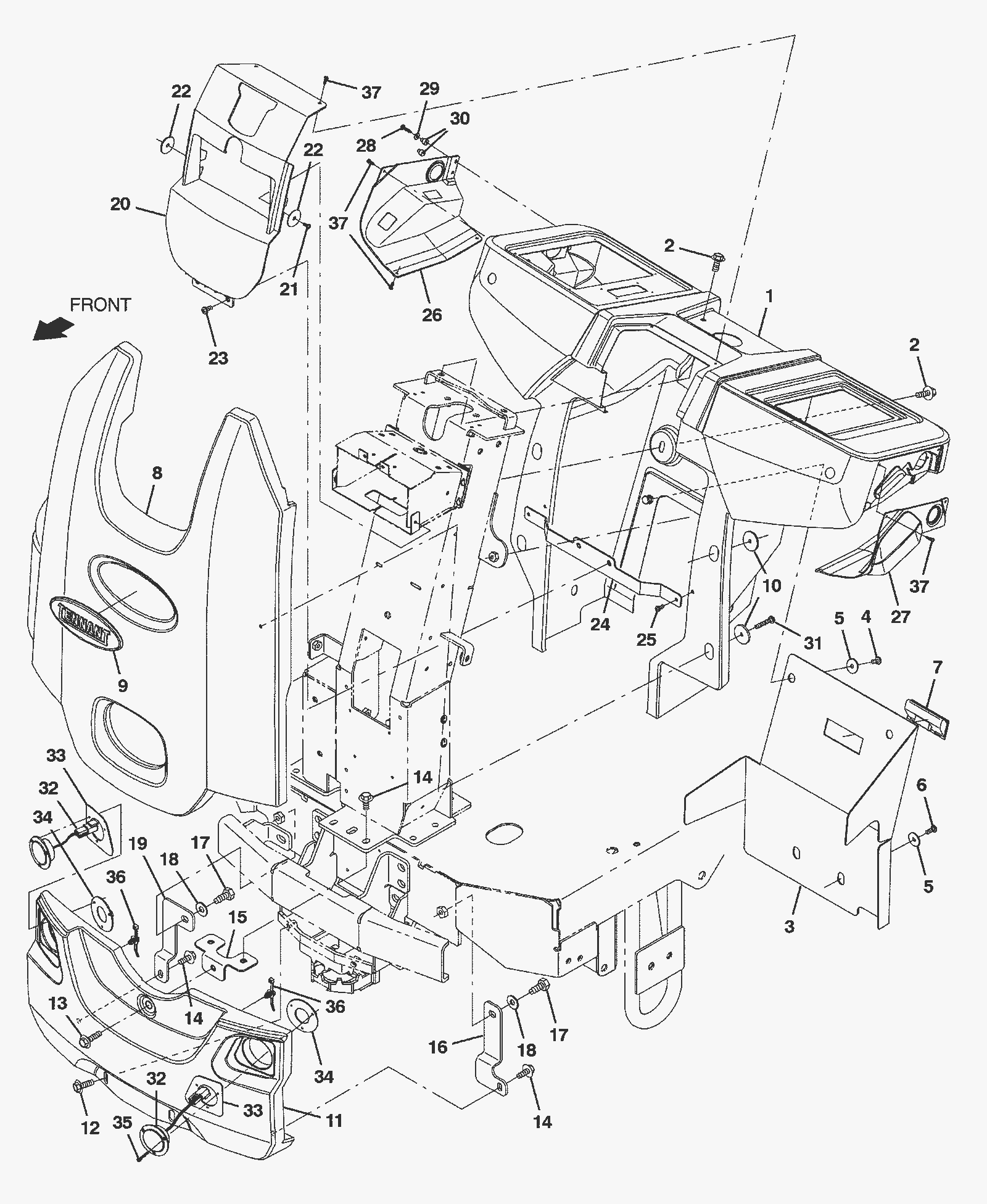

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
775-0427
|
Aftermarket trimmed instrument shroud |
1 |
|
|
2 |
675-9578
|
SCREW, HEX, M8 X 1.25 X 25, SEMS, LOCK (Tennant Industrial) |
6 |
|
|
3 |
775-0491
|
Standard electrical panel with decals |
1 |
|
|
4 |
999-1041
|
Screw M6-1 x 12mm pan head phillips stainless steel |
2 |
|
|
5 |
275-0093
|
WASHER, FLAT, 0.28B 1.00D .06, STL (Tennant Industrial) |
4 |
|
|
6 |
999-1257
|
Screw M6-1 x 16mm pan head Phillips |
2 |
|
|
7 |
575-0944
|
HANDLE, PANEL (Tennant Industrial) |
1 |
|
|
8 |
775-0429
|
Trimmed front shroud with label |
1 |
(includes 9) |
|
9 |
275-7759
|
Nameplate |
1 |
|
|
10 |
475-8043
|
WASHER, FLAT, 0.28B 1.38D .12, HRS PL (Tennant Industrial) |
4 |
|
|
11 |
775-0492
|
Front lower shroud |
1 |
|
|
12 |
275-9575
|
SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) |
2 |
|
|
13 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
1 |
|
|
14 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
4 |
|
|
15 |
775-0431
|
Shroud mounting plate weldment |
1 |
|
|
16 |
775-0432
|
Left hand shroud mounting plate |
1 |
|
|
17 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
1 |
|
|
18 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
19 |
775-0433
|
Right hand shroud mounting plate |
1 |
|
|
20 |
775-0434
|
Center bezel |
1 |
|
|
21 |
999-0534
|
Screw M4-.7 x 10mm pan head slotted zinc |
2 |
|
|
22 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
2 |
|
|
23 |
999-1041
|
Screw M6-1 x 12mm pan head phillips stainless steel |
2 |
|
|
24 |
775-0435
|
Bezel mounting bracket weldment |
1 |
|
|
25 |
999-0531
|
Screw M5-.8 x 16mm pan head slotted zinc |
2 |
|
|
26 |
775-0436
|
Right hand bezel |
1 |
(Before SN 010445) |
|
27 |
775-0437
|
Left hand bezel |
1 |
(Before SN 010445) |
|
28 |
175-5326
|
Screw M4-.7 x 20mm pan head phillips stainless steel |
2 |
(Before SN 010514) |
|
29 |
999-0266
|
Washer #8 SAE flat stainless steel |
2 |
(Before SN 010514) |
|
30 |
375-7691
|
Sleeve |
2 |
(Before SN 015014) |
|
31 |
275-5062
|
Screw M6-1 x 35mm hex head |
4 |
|
|
32 |
775-0438
|
36V LED light |
2 |
|
|
33 |
775-0439
|
Headlight bezel plate |
2 |
|
|
34 |
775-0440
|
Rear headlight mounting plate weldment |
2 |
|
|
35 |
999-1221
|
Screw M3-.5 x 25mm pan head stainless steel |
6 |
|
|
36 |
275-5197
|
Fir tree clip |
2 |
|
|
37 |
175-2146
|
Screw 6-20 x 1/2 pan head |
9 |
|
|
38 |
775-0493
|
Screw M4-.7 x 10mm pan head phillips black |
2 |
(After SN 010513) |
|
39 |
775-0494
|
Right hand bezel |
1 |
(After SN 010444) |
|
40 |
775-0495
|
Left hand bezel |
1 |
(After SN 010444) |
|
