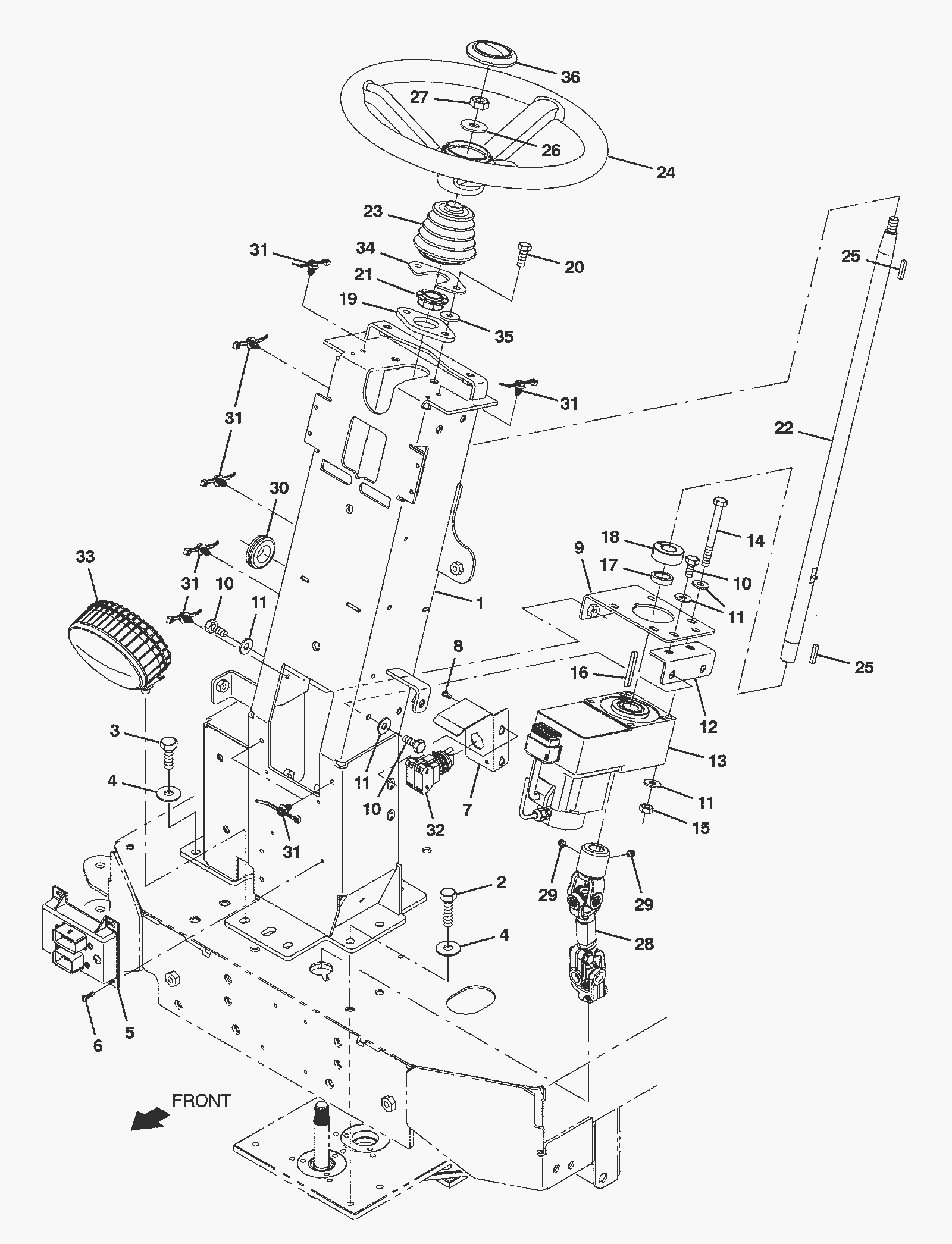

Steering Assembly

#PartDescription ReqNotesAvailability
1 775-0415 Steering column weldment 1
2 175-3258 Bolt M10-1.5 x 35mm hex head 2
3 275-0025 Screw M10-1.5 x 25 hex head 8.8 4
4 999-0033 Washer 7/16 SAE flat 4
5 775-0416 Aftermarket motor control amplifier 1 Requires Tennant True service or an authorized Tennant service provider
6 999-9113 Screw M4-.7 x 16mm pan head phillips stainless steel 4
7 375-7939 Switch mounting bracket 1
8 999-0534 Screw M4-.7 x 10mm pan head slotted zinc 2
9 375-7672 Steering motor plate weldment 1
10 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 1
11 999-0024 Washer 5/16 flat stainless steel 14
12 375-7673 Steering motor plate weldment 1
13 775-0417 36V electric steering motor assembly 1
14 275-0444 SCREW, HEX, M8 X 1.25 X 90, 8.8 (Tennant Industrial) 4
15 999-0471 Nut M8-1.25 nylon insert lock zinc plated 4
16 375-7671 50mml square keyway 1
17 475-9761 SLEEVE, P/M, 0.79B 1.14D 0.3L [430SS] (Tennant Industrial) 1
18 775-0418 Collar M6 x 15mm 1
19 675-9466 Adapter plate 1
20 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 2
21 675-9467 Bearing 1
22 675-9465 Steering shaft 1
23 275-8081 Steering shaft bellows 1
24 775-0419 Steering wheel 1
25 175-3200 Square keyway 2
26 999-0187 Washer 1/2 flat plain finish 1
27 999-0519 Nut M12-1.75 nylon insert lock stainless steel 1
28a 775-0420 Steer shaft 1 (Before SN 010470)
28b 775-0487 Steering shaft assembly 1 (After SN 010469)
29 175-4926 Screw 5/16-18 x 3/8 set nylon lock 2
30 175-0840 Rubber grommet 2
31 275-5197 Fir tree clip 17
32 375-7767 Rotary switch 1
33 675-9518 Blue LED spot light 1
34 775-0421 Stop bearing plate 1
35 175-7920 Washer M8 flat stainless steel 2
36 275-5333 Steering wheel cap 1
37 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 1
38 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 1
