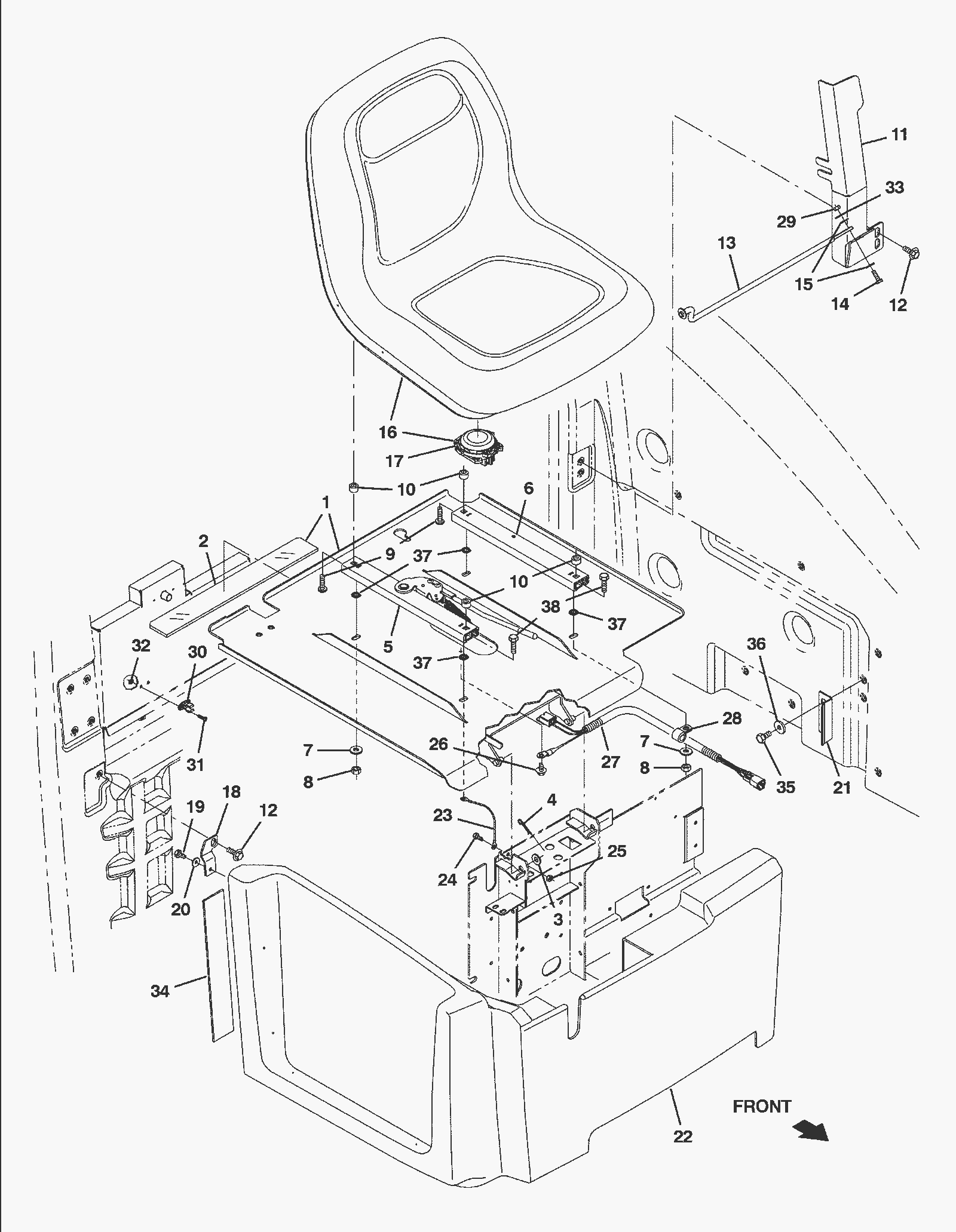

Seat Assembly

#PartDescription ReqNotesAvailability
1a 775-0412 Aftermarket seat plate weldment with labels 1 (includes 2)
1b 775-0413 Aftermarket commercial equipment seat plate weldment 1 (includes 2)
2 275-8159 Rubber pad 1
3 999-0120 Washer 3/8 SAE flat 1
4 175-2113 Cotter pin 1
5 275-2671 11 1/2 inch seat adjuster rail (Tennant Industrial) 1
6 675-9511 Seat track no stud 1
7 999-0024 Washer 5/16 flat stainless steel 3
8 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
9 275-9278 SCREW, PAN, PHL, .31-18 X 1.00, G2 (Tennant Industrial) 4
10 275-9333 Spacer 4
11 275-2678 Wire cover weldment (Tennant Industrial) 1
12 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 5
13 275-2679 Prop rod weldment (Tennant Industrial) 1
14 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 1
15 175-2289 Washer 2
16 275-2669 Standard seat (Tennant Industrial) 1 (includes 17)
17 275-2670 Seat switch (Tennant Industrial) 1
18 275-2682 Seat shroud mounting angle (Tennant Industrial) 1
19 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 1
20 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
21 275-2683 Seat shroud angle keeper (Tennant Industrial) 1
22 275-2688 Seat shroud (Tennant Industrial) 1
23 275-2677 Cable (Tennant Industrial) 1
24 999-1228 Screw M5-.8 x 10mm hex head stainless steel 1
25 175-2894 Nut M5-.8 hex nylon locking 1
26 475-8069 SCREW, HEX, M6 X 1.00 X 12, FMG SS (Tennant Industrial) 1
27 775-0414 Seat switch harness 1
28 175-6768 P clamp (Tennant Industrial) 1
29 999-0469 Nut M6-1 nylon insert lock zinc plated 1
30 275-2681 Plastic rod grip clip (black) (Tennant Industrial) 1
31 175-5310 Screw 4 x 45/64 x 16 pan head 2
32 999-0954 Nut M4-.7 nylon insert lock stainless steel 2
33 999-0016 Washer 1/4 flat plain finish 1
34 275-2659 Adhesive foam seal (Tennant Industrial) 1
35 999-0783 Screw M8-1.25 x 16mm hex head 2
36 175-7920 Washer M8 flat stainless steel 2
37 675-9512 Bolt retention push nut 4
38 275-3879 SCREW, HEX, .31-18 X 1.00, G5 (Tennant Industrial) 4
