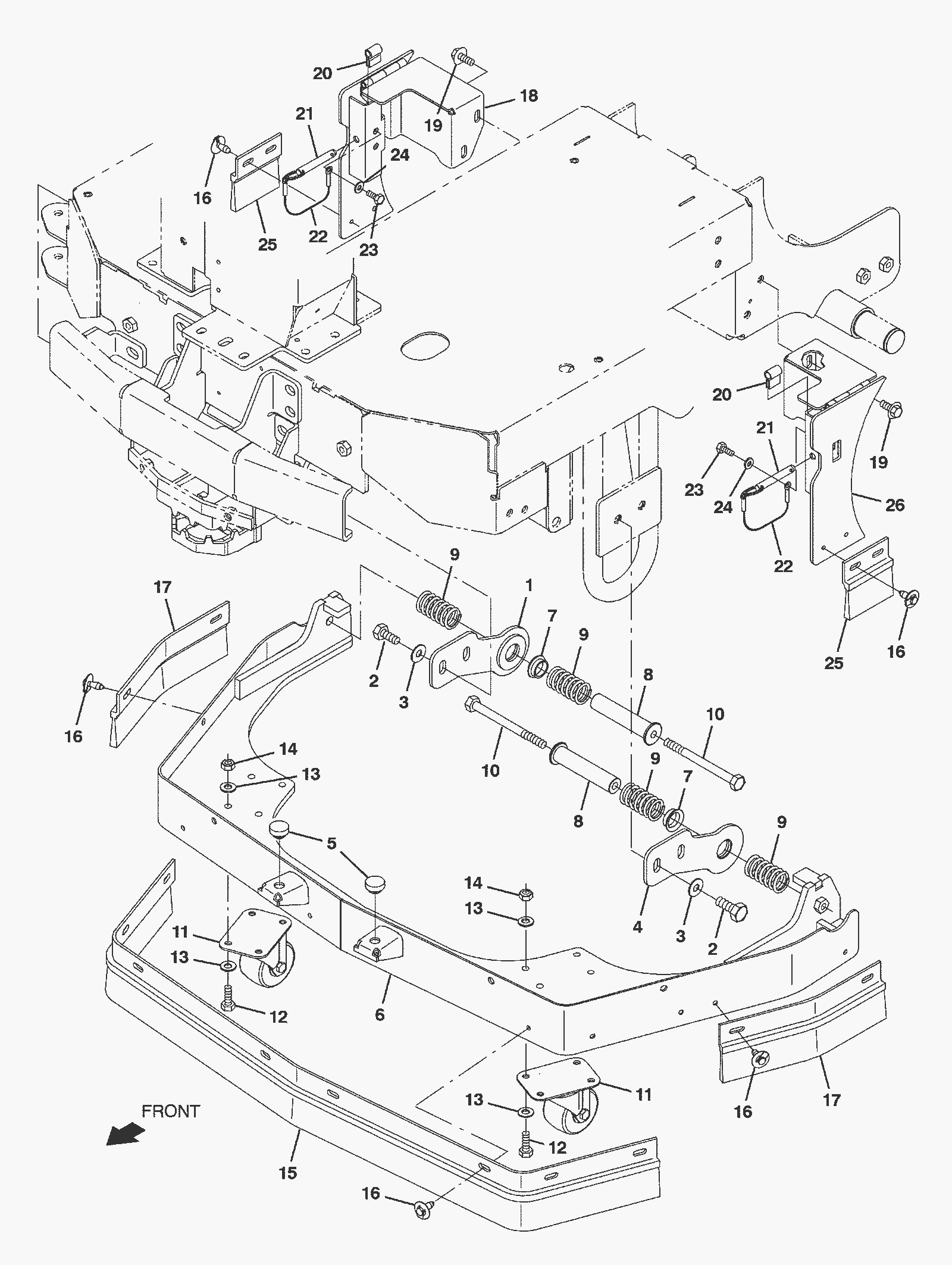

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
775-0404
|
Right hand guard mount plate weldment |
1 |
|
|
2 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
4 |
|
|
3 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
|
4 |
775-0405
|
Left hand guard mounting plate weldment |
1 |
|
|
5 |
175-5941
|
BUMPER, RBR, 1.0D 0.69TH 0.50 TIP (Tennant Industrial) |
2 |
|
|
6 |
775-0406
|
Front guard weldment |
1 |
|
|
7 |
375-0729
|
Flanged bushing (Tennant Industrial) |
2 |
|
|
8 |
775-0407
|
Flanged sleeve stainless steel (Tennant Industrial) |
2 |
|
|
9 |
375-7658
|
Compression spring |
4 |
|
|
10 |
475-9845
|
SCREW, HEX, M10 X 1.50 X 130 (Tennant Industrial) |
2 |
|
|
11 |
275-6261
|
Swivel caster wheel |
2 |
|
|
12 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
8 |
|
|
13 |
999-0120
|
Washer 3/8 SAE flat |
16 |
|
|
14 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
8 |
|
|
15 |
375-7905
|
Front guard bumper with bristles |
1 |
|
|
16 |
175-3378
|
Rivet 1/4 x 57/64 plastic |
14 |
|
|
17 |
775-0408
|
Side bristles guard |
1 |
|
|
18 |
775-0409
|
Right hand rear guard weldment |
1 |
|
|
19 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
4 |
|
|
20 |
575-3642
|
SEAL, AFMKT, BULB, STR, .50D F/11GA 01FT (Tennant Industrial |
2 |
|
|
21 |
375-8283
|
Hitch pin |
2 |
|
|
22 |
275-2677
|
Cable (Tennant Industrial) |
2 |
|
|
23 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
|
24 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
25 |
775-0410
|
Rear bristles guard |
2 |
|
|
26 |
775-0411
|
Left hand rear guard weldment |
1 |
|
|
