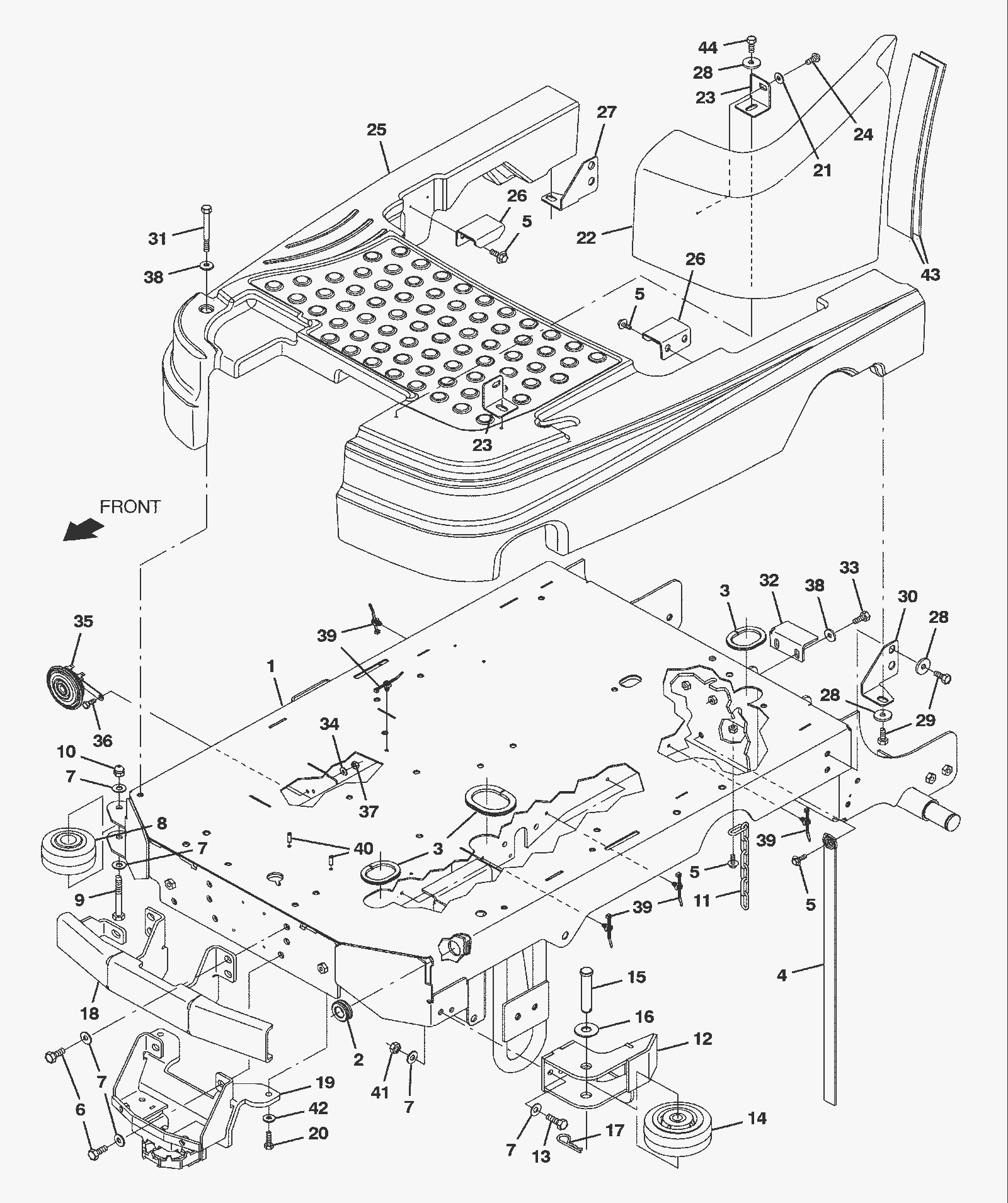

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
775-0386
|
Frame weldment |
1 |
|
|
2 |
275-2655
|
Rubber grommet (Tennant Industrial) |
1 |
|
|
3 |
275-8203
|
Molding |
1 |
|
|
4 |
275-9261
|
Static strip with grommet |
1 |
|
|
5 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
6 |
|
|
6 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
3 |
|
|
7 |
275-1169
|
Washer .40 x 12mm flat |
10 |
|
|
8 |
275-7566
|
Wheel (Tennant Industrial) |
1 |
|
|
9 |
475-8327
|
SCREW, HEX, M10 X 1.50 X 90, SS (Tennant Industrial) |
2 |
|
|
10 |
275-2656
|
Nut M10 x 1 1/2 low crown black (Tennant Industrial) |
2 |
|
|
11 |
175-2094
|
Chain |
1 |
|
|
12 |
775-0387
|
Wheel bracket weldment |
1 |
|
|
13 |
999-0774
|
Bolt M10-1.5 x 30mm hex head stainless steel full thread |
3 |
|
|
14 |
275-5658
|
Wheel (gray) (Tennant Industrial) |
1 |
|
|
15 |
275-3007
|
PIN, CLEVIS, 0.75D X 3.50L (Tennant Industrial) |
1 |
|
|
16 |
275-9590
|
WASHER, FLAT, 0.78B 1.75D .18, SS (Tennant Industrial) |
1 |
|
|
17 |
275-0028
|
Cotter hair pin |
1 |
|
|
18 |
775-0388
|
Bumper weldment |
1 |
|
|
19 |
375-7662
|
Sensor guard weldment |
1 |
|
|
20 |
999-0770
|
Screw M8-1.25 x 30mm flat head socket stainless steel |
2 |
|
|
21 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
22 |
275-2657
|
Left hand corner shroud (Tennant Industrial) |
2 |
|
|
23 |
275-2658
|
Corner shroud mounting bracket (Tennant Industrial) |
1 |
|
|
24 |
175-4927
|
Screw M8-1.25 x 20mm button head |
1 |
|
|
25 |
275-2661
|
Frame shroud (Tennant Industrial) |
1 |
|
|
26 |
275-2664
|
Shroud frame mounting bracket (Tennant Industrial) |
2 |
|
|
27 |
275-2665
|
Right hand shroud mounting bracket (Tennant Industrial) |
1 |
|
|
28 |
175-7920
|
Washer M8 flat stainless steel |
8 |
|
|
29 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
8 |
|
|
30 |
275-2666
|
Left hand shroud mounting bracket (Tennant Industrial) |
1 |
|
|
31 |
175-6979
|
SCREW, HEX, M8 X 1.25 X 100, 8.8 (Tennant Industrial) |
1 |
|
|
32 |
275-2668
|
Tank mounting bracket (Tennant Industrial) |
1 |
|
|
33 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
2 |
|
|
34 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
35 |
275-7560
|
36V horn (Tennant Industrial) |
1 |
|
|
36 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
37 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
38 |
275-1169
|
Washer .40 x 12mm flat |
3 |
|
|
39 |
275-5197
|
Fir tree clip |
7 |
|
|
40 |
175-0768
|
PIN, ROLL, .250D X 0.75L, .250/.256 (Tennant Industrial) |
2 |
|
|
41 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
|
42 |
275-6982
|
Washer |
2 |
|
|
43 |
275-2659
|
Adhesive foam seal (Tennant Industrial) |
2 |
|
|
44 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
1 |
|
|
