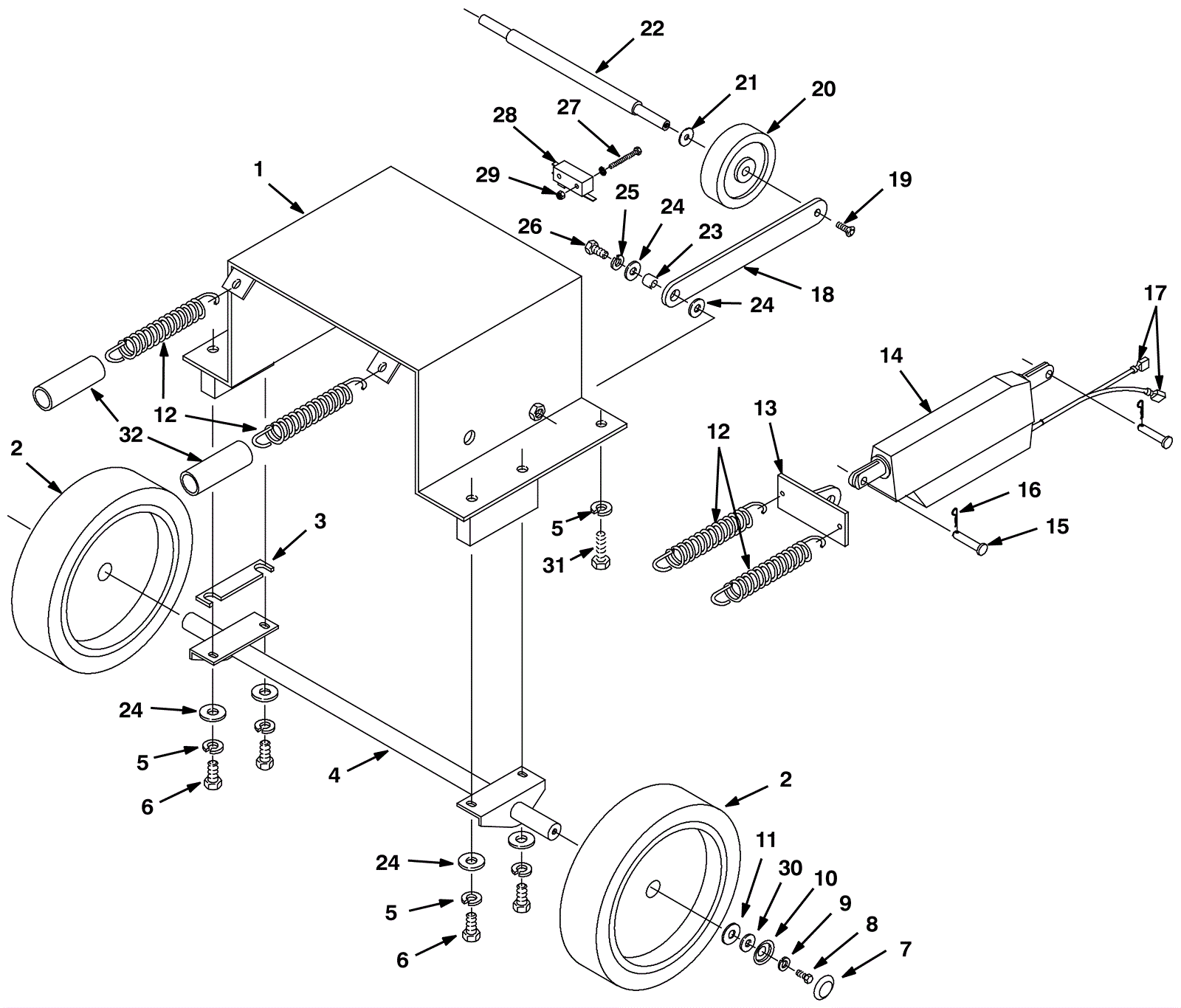

SPEEDGLEAM LEVER Wheel Assembly-Push Model

#PartDescriptionPriceReqNotesAvailability
1 175-1166 Frame weldment $562.43 1 usually ships 10-16 days
2a 175-1072 8 inch wheel $142.78 2 (after 02/2011) ships same day
2b 175-1072 8 inch wheel $142.78 2 (before 02/2011) ships same day
3 175-1170 Spacer $22.22 1 usually ships 1-5 days
4 175-1262 Axle weldment $207.46 1 usually ships 1-5 days
5 999-1081 Washer M10 split lock stainless steel $0.99 6 ships same day
6 999-9081 Screw M10-1.5 x 65mm hex head stainless steel $2.99 4 ships same day
7 175-1096 Wheel cap $4.09 2 usually ships 10-16 days
8 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 2 ships same day
9 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
10 175-1095 Washer $4.75 2 usually ships 10-16 days
11 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
12 175-0943 Extension spring $10.89 4 usually ships 10-16 days
13 175-1174 Bracket $79.42 1 usually ships 10-16 days
14 175-3010 Actuator $480.70 1 usually ships 10-16 days
15 175-3012 Clevis pin $7.70 2 usually ships 10-16 days
16a 175-2113 Cotter pin $3.04 2 (after 02/2011) ships same day
16b 175-5080 Cotter pin $4.09 2 (before 02/2011) ships same day
17 175-0142 1/4 inch male terminal $4.88 2 usually ships 10-16 days
18 175-1175 Pivot arm $55.77 2 usually ships 10-16 days
19 999-1422 Screw M6-1 x 16mm flat head zinc plated $2.26 2 ships same day
20 175-0292 4 inch rear wheel (gray) $38.72 2 ships same day
21 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 ships same day
22 175-1177 Rear axle $72.60 1 usually ships 10-16 days
23 175-2731 Bushing $8.14 2 usually ships 10-16 days
24 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 8 ships same day
25 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
26 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 2 ships same day
27 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
28 175-6532 Snap switch $14.74 1 ships same day
29 999-0144 Nut 6-32 k-lock zinc plated $0.99 2 ships same day
30 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
31 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel $3.06 2 ships same day
32 175-1172 Sleeve (OBSOLETE) $10.89 2 usually ships 10-16 days
