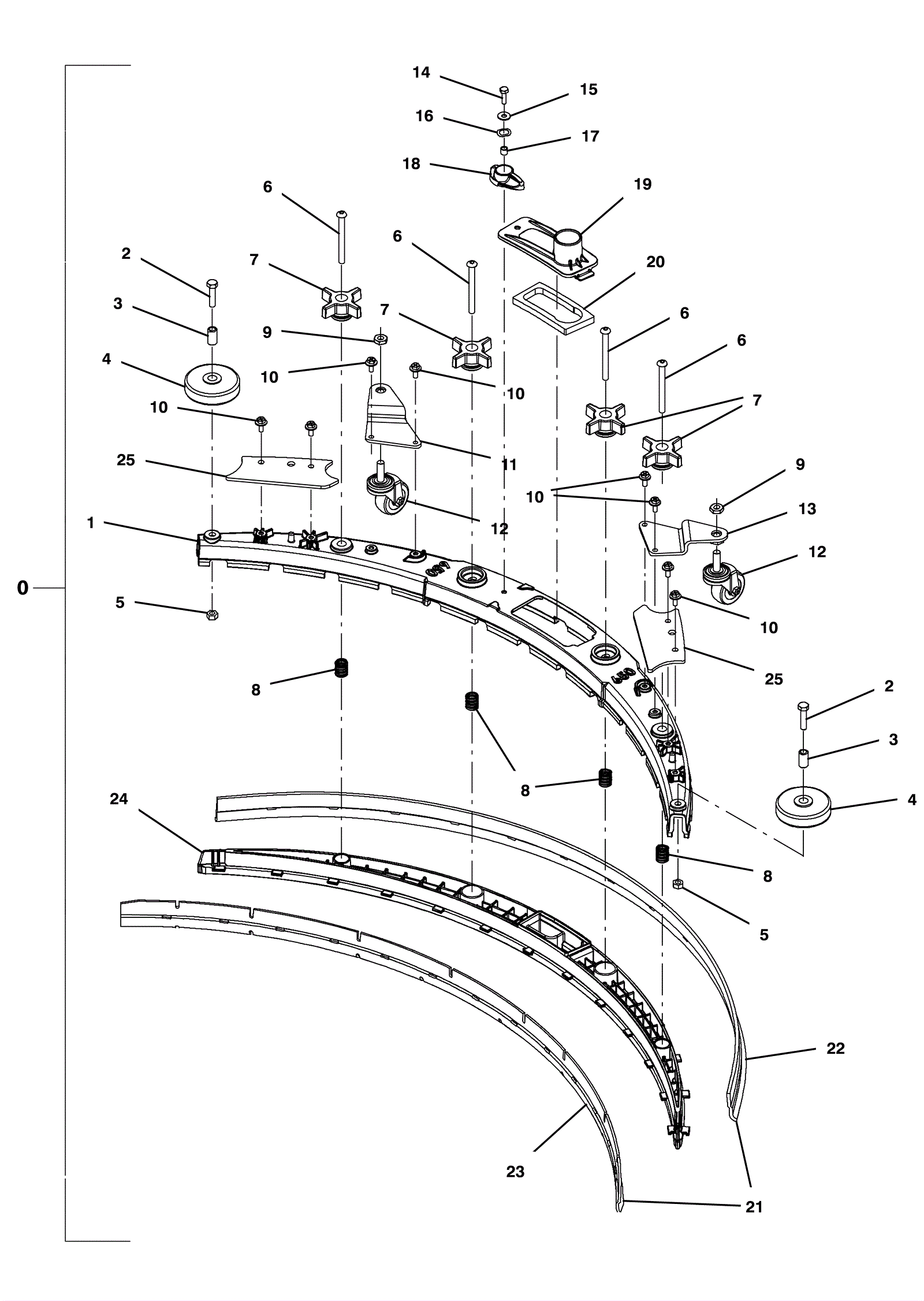

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
375-3277
|
26 inch (650mm) squeegee assembly |
1 |
(includes 1a, 2-21a, 22a, 23a, 24a, 25) (before SN 11005986) (26 inch) |
|
0b |
375-3293
|
28 inch (700mm) squeegee assembly |
1 |
(includes 1b, 2-20, 21b, 22b, 23b, 24b, 25)(before SN 11005986) (28 inch) |
|
0c |
375-3304
|
32 inch (800mm) squeegee assembly |
1 |
(includes 1c, 2-20, 21c, 22c, 23c, 24c, 25) (before SN 11005986) (32 inch) |
|
1a |
375-9375
|
26 inch mach squeegee frame |
1 |
(between SN's 10979888-11005986) (26 inch) |
|
1b |
375-9375
|
26 inch mach squeegee frame |
1 |
(before SN 10979889) (26 inch) |
|
1c |
375-9376
|
28 inch mach squeegee frame |
1 |
(between SN's 10983980 and 11005986) (28 inch) |
|
1d |
375-9376
|
28 inch mach squeegee frame |
1 |
(after SN 10983981) (28 inch) |
|
1e |
375-9377
|
32 inch mach squeegee frame |
1 |
(between SN's 10996995 and 11005986) (32 inch) |
|
1f |
375-3305
|
32 inch (800mm) squeegee weldment (OBSOLETE) |
1 |
(before SN 10996996) (32 inch) |
|
2 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
2 |
|
|
3 |
175-2182
|
Sleeve |
2 |
|
|
4 |
175-2181
|
Wheel |
2 |
|
|
5 |
999-1424
|
Nut M8-1.25 hex stainless steel |
2 |
|
|
6 |
375-0262
|
Screw M8-1.25 x 80mm button socket stainless steel |
4 |
|
|
7 |
275-1552
|
Star knob |
4 |
|
|
8 |
275-0143
|
Compression spring |
4 |
|
|
9 |
999-1625
|
Nut M10-1.5 hex jam stainless steel |
2 |
(before SN 11005986) |
|
10 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
8 |
(before SN 11005986) |
|
11 |
375-4615
|
Right hand squeegee caster bracket weldment |
1 |
(before SN 11005986) |
|
12 |
175-7953
|
Swivel caster wheel |
2 |
|
|
13 |
375-4616
|
Left hand squeegee caster bracket weldment |
1 |
(before SN 11005986) |
|
14 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
15 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
16 |
175-3058
|
Washer 3/4 wave |
1 |
|
|
17 |
175-0152
|
Spacer |
1 |
|
|
18 |
375-3281
|
Squeegee knob |
1 |
|
|
19 |
375-0263
|
Squeegee water trap cover |
1 |
|
|
20 |
375-0265
|
Squeegee water trap gasket |
1 |
|
|
21a |
375-3282
|
Squeegee blade kit 26 inch linatex |
1 |
(includes 22a, 23a) (26 inch) |
|
21b |
375-3295
|
Squeegee blade kit 28 inch linatex/linard |
1 |
(includes 22b, 23b) (28 inch) |
|
21c |
375-3306
|
Squeegee blade kit 32 inch linatex |
1 |
(includes 22c, 23c) (32 inch) |
|
21d |
375-3287
|
Squeegee blade kit 26 inch urethane |
1 |
(includes 22d, 23d) (26 inch) (optional) |
|
21e |
375-3316
|
Squeegee blade kit 28 inch urethane |
1 |
(includes 22e, 23e) (28 inch) (optional) |
|
21f |
375-3310
|
Squeegee blade kit 32 inch urethane |
1 |
(includes 22f, 23f) (optional) (32 inch) |
|
21g |
375-3290
|
Squeegee blade kit 26 inch gum rubber |
1 |
(includes 22g, 23g) (26 inch) (optional) |
|
21h |
375-3301
|
Squeegee blade kit 28 inch gum rubber |
1 |
(includes 22h, 23h) (28 inch) (optional) |
|
21i |
375-3313
|
Squeegee blade kit 32 inch gum rubber |
1 |
(includes 22i, 23i) (32 inch) (optional) |
|
21j |
991-9229
|
BLADE KIT, 800MM, RED |
1 |
(NON-OEM) |
|
21k |
991-9230
|
BLADE KIT, 700MM, URETHANE |
1 |
(NON-OEM) |
|
22a |
375-3283
|
Squeegee blade 26 inch linatex rear |
1 |
(26 inch) |
|
22b |
375-3296
|
Squeegee blade 28 inch linatex rear |
1 |
(28 inch) |
|
22c |
375-3307
|
Squeegee blade 32 inch linatex rear |
1 |
(32 inch) |
|
22d |
375-3288
|
Squeegee blade 26 inch urethane rear |
1 |
(26 inch) (optional) |
|
22e |
375-3299
|
Squeegee blade 28 inch urethane rear |
1 |
(28 inch) (optional) |
|
22f |
375-3311
|
Squeegee blade 32 inch urethane rear |
1 |
(32 inch) (optional) |
|
22g |
375-3291
|
Squeegee blade 26 inch gum rubber rear |
1 |
(26 inch) (optional) |
|
22h |
375-3302
|
Squeegee blade 28 inch gum rubber rear |
1 |
(28 inch) (optional) |
|
22i |
375-3314
|
Squeegee blade 32 inch gum rubber rear |
1 |
(32 inch) (optional) |
|
23a |
375-3284
|
Squeegee blade 26 inch linatex front |
1 |
(26 inch) (optional) |
|
23b |
375-3297
|
Squeegee blade 28 inch linard front |
1 |
(28 inch) |
|
23c |
375-3308
|
Squeegee blade 32 inch linatex front |
1 |
(32 inch) |
|
23d |
375-3289
|
Squeegee blade 26 inch urethane front |
1 |
(26 inch) (optional) |
|
23e |
375-3300
|
Squeegee blade 28 inch urethane front |
1 |
(28 inch) (optional) |
|
23f |
375-3312
|
Squeegee blade 32 inch urethane front |
1 |
(32 inch) (optional) |
|
23g |
375-3292
|
Squeegee blade 26 inch gum rubber front |
1 |
(26 inch) (optional) |
|
23h |
375-3303
|
Squeegee blade 28 inch gum rubber front |
1 |
(28 inch) (optional) |
|
23i |
375-3315
|
Squeegee blade 32 inch gum rubber front |
1 |
(32 inch) (optional) |
|
24a |
375-3285
|
26 inch (600mm) squeegee blade retainer |
1 |
(26 inch) |
|
24b |
375-3298
|
28 inch (700mm) squeegee blade retainer |
1 |
(28 inch) |
|
24c |
375-3309
|
32 inch (800mm) squeegee blade retainer |
1 |
(32 inch) |
|
25 |
375-3286
|
Squeegee bumper bracket |
2 |
(before SN 11005986) |
|
