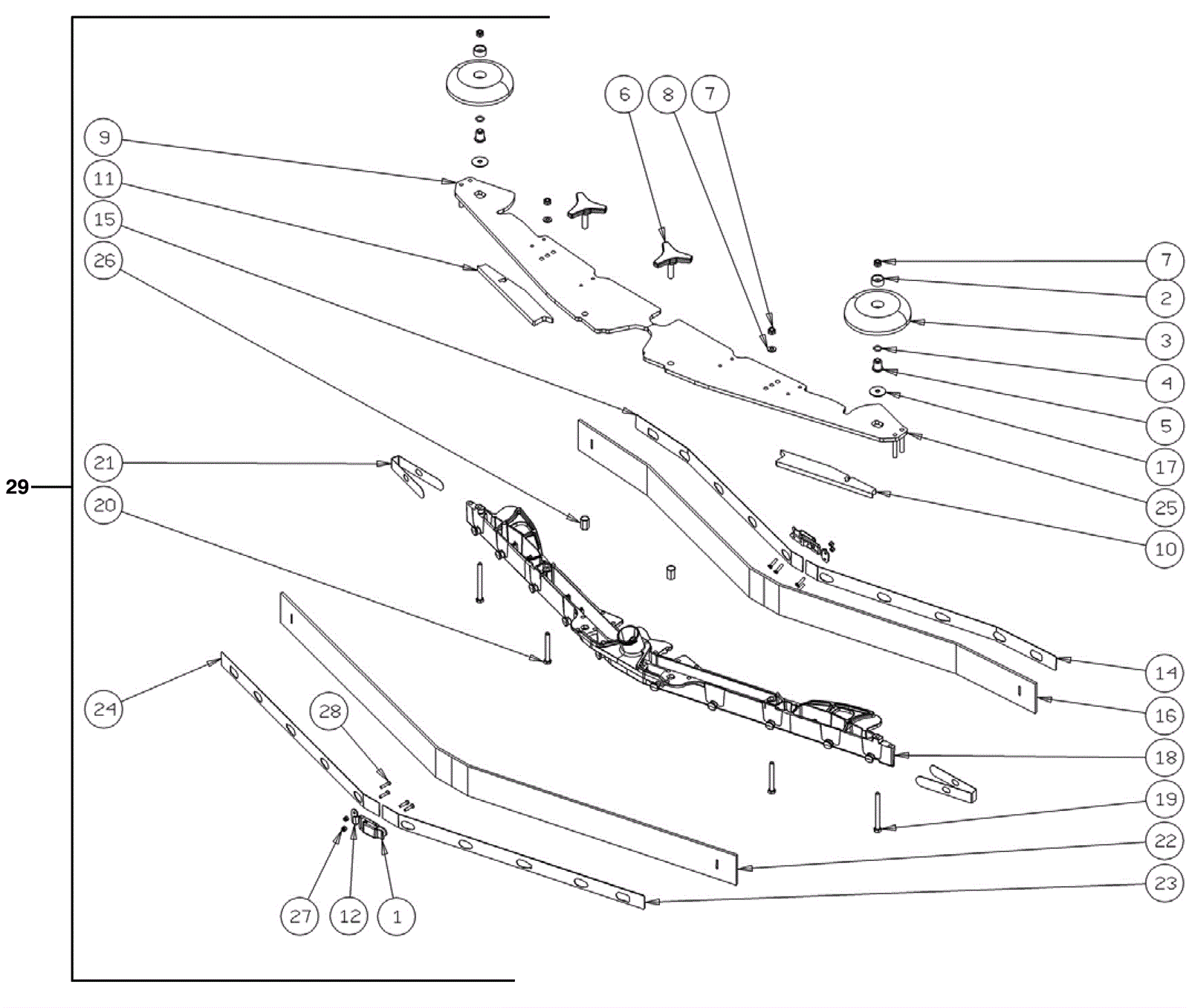

T390 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-9069 Latch $9.79 2 usually ships 10-16 days
2 375-9593 Nylon sleeve $14.41 2 usually ships 10-16 days
3 375-9594 Bumper wheel $7.92 2 usually ships 10-16 days
4 375-9595 O-ring $5.02 2 usually ships 10-16 days
5 375-9596 Spacer $10.34 2 usually ships 10-16 days
6 375-9597 Knob $9.35 2 usually ships 10-16 days
7 375-9499 Nut M6 inox $3.43 4 usually ships 10-16 days
8 375-9508 Washer D. 6 inox $2.90 2 usually ships 10-16 days
9 375-8039 Plate $37.18 1 usually ships 10-16 days
10 375-8040 Gasket $20.57 1 usually ships 10-16 days
11 375-8041 Gasket $20.57 1 usually ships 10-16 days
12 375-9070 Hook $7.15 2 usually ships 10-16 days
14 375-8042 Right hand front squeegee strap $33.00 1 usually ships 10-16 days
15 375-8043 Left hand front squeegee strap $32.45 1 usually ships 10-16 days
16a 375-8044 Front squeegee blade (linatex) $42.13 1 usually ships 10-16 days
16b 375-8045 Front squeegee blade (latex) $16.50 1 (optional) usually ships 10-16 days
16c 375-8046 Front squeegee blade (poly) $64.24 1 (optional) usually ships 10-16 days
17 375-8047 Washer M6 x 24 $2.90 2 usually ships 10-16 days
18 375-8048 Squeegee body $131.02 1 usually ships 10-16 days
19 375-9606 Screw M6 x 65 stainless steel $3.96 2 usually ships 10-16 days
20 375-9607 Screw M6 x 55 stainless steel $3.96 2 usually ships 10-16 days
21 375-8049 Closure $28.68 2 usually ships 10-16 days
22a 375-8050 Rear squeegee blade (linatex) $60.06 1 usually ships 10-16 days
22b 375-8051 Rear squeegee blade (latex) $16.50 1 (optional) usually ships 10-16 days
22c 375-8052 Rear squeegee blade (poly) $74.69 1 (optional) usually ships 10-16 days
23 375-8053 Right hand rear squeegee strap $32.23 1 usually ships 10-16 days
24 375-8054 Left hand rear squeegee strap $33.55 1 usually ships 10-16 days
25 375-8055 Plate $37.51 1 usually ships 10-16 days
26 375-9612 Insert $2.51 2 usually ships 10-16 days
27 999-1419 Nut M3-.5 hex stainless steel $0.99 8 ships same day
28 375-9613 Squeegee strap bolt $3.96 8 ships same day
29 375-8038 28 in squeegee assembly (T390/T490) $382.91 1 (includes 1-16a, 17-22a, 23-28) usually ships 10-16 days
