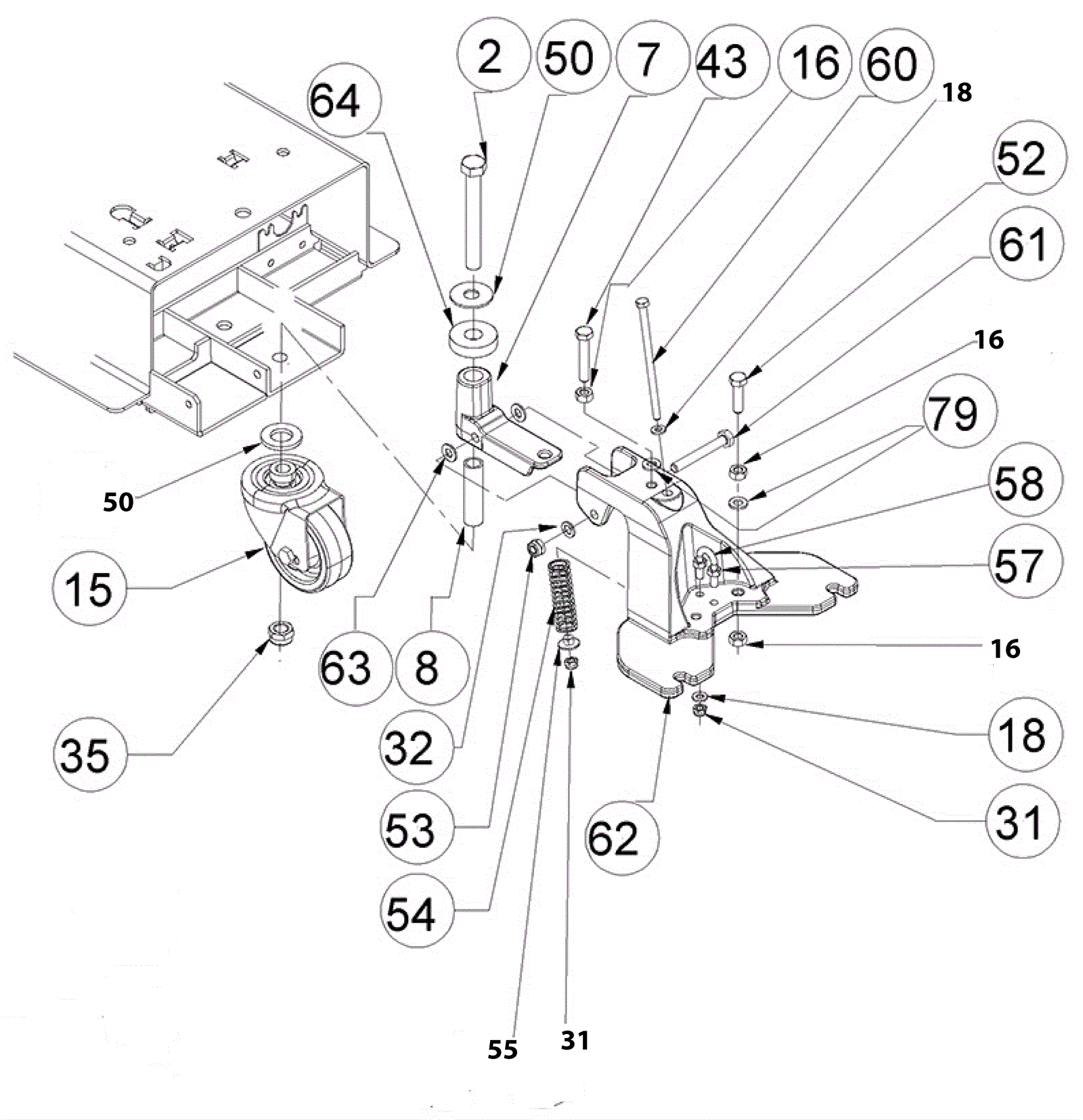

T390 Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
2 375-9687 Screw M12 x 110 $3.96 1 usually ships 10-16 days
7 375-9692 Squeegee support $57.31 1 usually ships 10-16 days
8 375-9693 Pin $14.96 1 usually ships 10-16 days
15 375-9698 Swivel caster $73.26 1 usually ships 10-16 days
16 999-1651 Nut M8-1 hex stainless steel $2.83 3 ships same day
18 375-9508 Washer D. 6 inox $2.90 2 usually ships 10-16 days
31 375-9499 Nut M6 inox $3.43 2 usually ships 10-16 days
32 375-9652 Washer D. 8 inox $2.90 1 usually ships 10-16 days
35 375-9712 Nut M12 inox $3.43 1 usually ships 10-16 days
43 375-9716 Screw M8 x 45 $3.96 1 usually ships 10-16 days
50 375-9731 Washer $2.90 2 usually ships 10-16 days
52 375-9722 Screw M8 x 30 $3.96 1 usually ships 10-16 days
53 375-9619 Nut M8 inox Call for price 1 usually ships 10-16 days
54 375-9723 Spring $3.30 1 usually ships 10-16 days
55 375-9724 Brush deck support bushing $5.50 1 usually ships 10-16 days
57 999-1308 Nut M6-1 hex stainless steel $0.99 2 ships same day
58 375-9726 Bracket $10.89 1 usually ships 10-16 days
60 375-9727 Screw M6 x 110 $3.96 1 usually ships 10-16 days
61 375-9728 Screw M8 x 60 $3.96 1 usually ships 10-16 days
62 375-9729 Squeegee support $52.25 1 usually ships 10-16 days
63 375-9658 Washer nylon $2.90 1 ships same day
64 375-9730 Washer M15 x 40 $5.50 1 usually ships 10-16 days
79 375-9732 Washer D8 $2.90 2 usually ships 10-16 days
