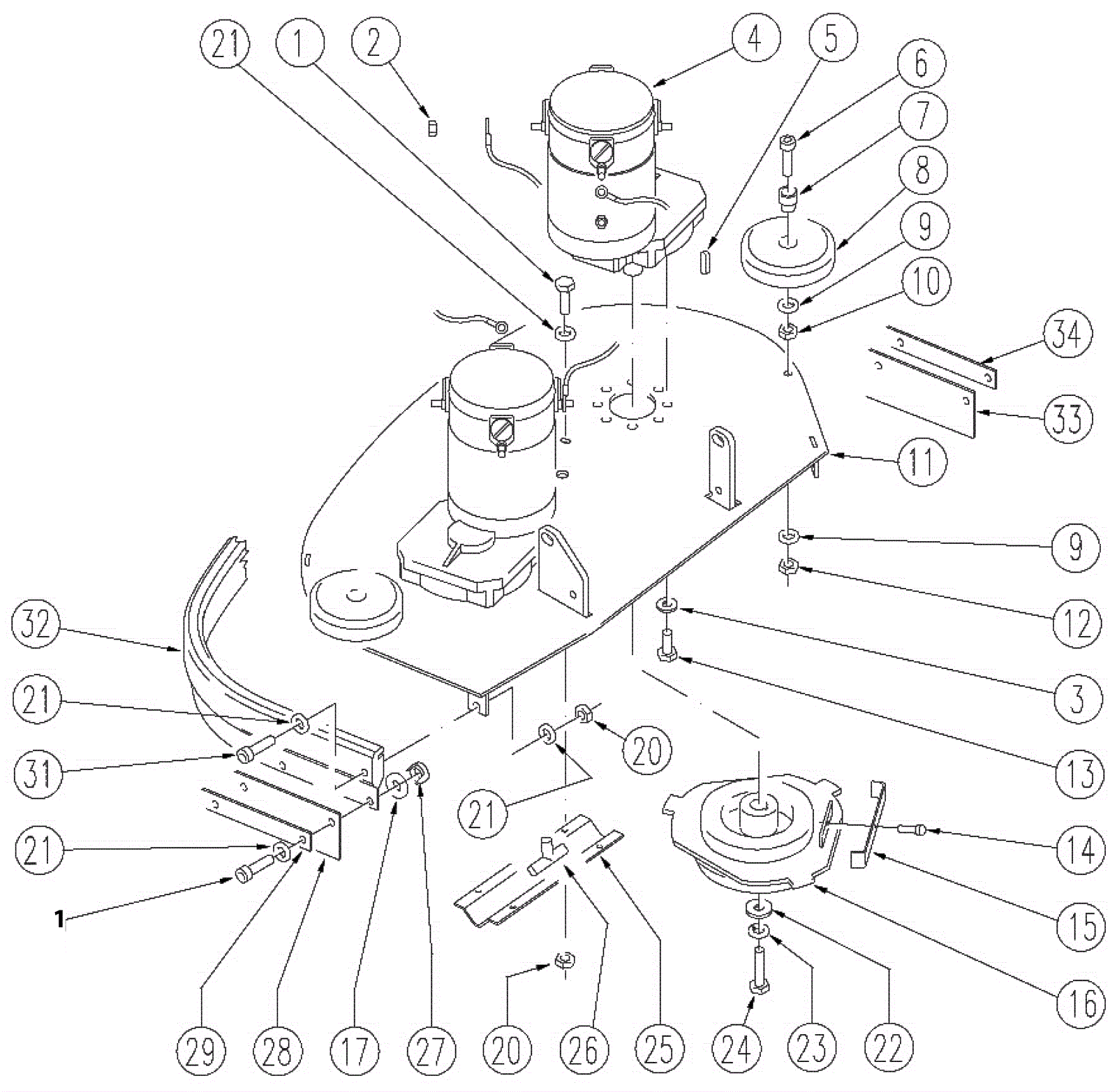

T390 Scrub Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1600 Screw M6 x 16 pan head zinc $0.99 12 ships same day
2 999-1308 Nut M6-1 hex stainless steel $0.99 4 ships same day
3 375-9535 Washer D. 6 inox $2.90 18 usually ships 10-16 days
4a 375-8014 24V brush motor $1,325.50 2 usually ships 10-16 days
4b 375-9626 Brush motor kit $19.58 4 usually ships 10-16 days
5 375-8015 Key $1.32 2 usually ships 10-16 days
6 375-8016 Screw M8 x 40 $3.96 2 usually ships 10-16 days
7 375-9616 Bushing $30.69 2 usually ships 10-16 days
8 375-9594 Bumper wheel $7.92 2 usually ships 10-16 days
9 375-9652 Washer D. 8 inox $2.90 4 usually ships 10-16 days
10 999-1651 Nut M8-1 hex stainless steel $2.83 2 ships same day
11 375-8017 Brush head $490.93 1 usually ships 10-16 days
12 375-9619 Nut M8 inox Call for price 2 usually ships 10-16 days
13 999-1801 Screw M6 X 12mm hex head flange $2.79 14 ships same day
14 375-8018 Screw M4 x 10 $3.96 2 usually ships 10-16 days
15 203-5850 Spring $4.49 2 usually ships 10-12 days
16 375-8019 Driver kit (aluminum) $67.65 2 usually ships 10-16 days
17 375-8020 Rubber washer $3.83 8 usually ships 10-16 days
20 375-9620 Nut M6 inox $33.00 9 usually ships 10-16 days
21 375-9536 Washer D. 6 x 18 inox $2.90 22 usually ships 10-16 days
22 375-9615 Washer D. 8 x 24 inox $2.90 2 ships same day
23 375-9732 Washer D8 $2.90 2 usually ships 10-16 days
24 375-8021 Screw M8 x 20 $3.96 2 usually ships 10-16 days
25 375-8022 Distributor $84.92 1 usually ships 10-16 days
26 N/A Not available Call for price 1 (connector) usually ships 3-26 days
27 375-8023 Nut M.6 $3.43 8 usually ships 10-16 days
28 375-8024 Left hand flap $34.43 1 usually ships 10-16 days
29 375-8025 Left hand flap retainer $9.02 1 usually ships 10-16 days
31 375-8026 Screw M6 x 35 $3.96 5 usually ships 10-16 days
32 375-8027 Bumper $97.68 1 usually ships 10-16 days
33 375-8028 Right hand flap $20.02 1 usually ships 10-16 days
34 375-8029 Right hand retainer flap $17.05 1 usually ships 10-16 days
