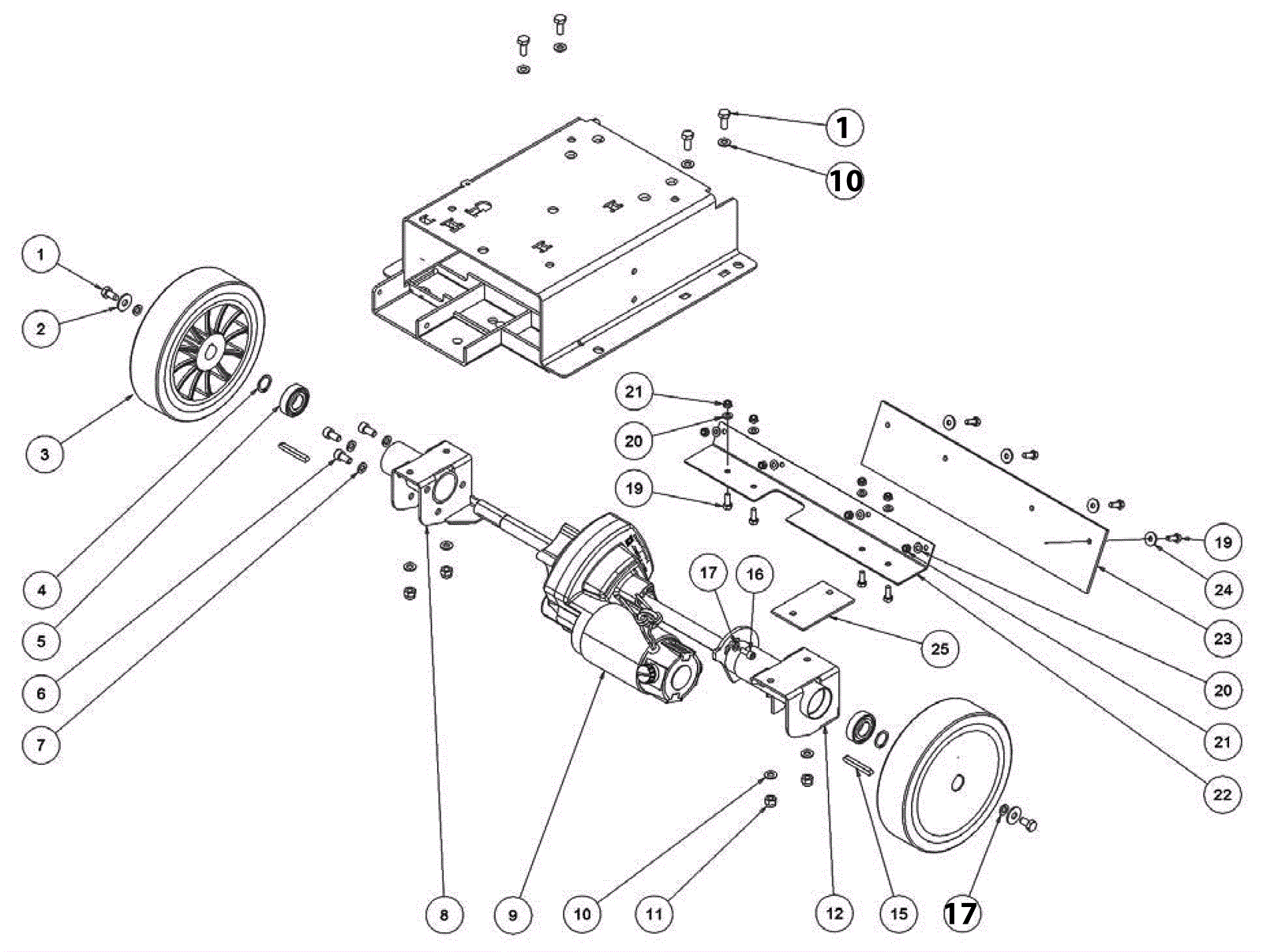

T390 Frame and Drive Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-9684 Screw M8 x 16 $3.96 6 usually ships 10-16 days
2 375-9615 Washer D. 8 x 24 inox $2.90 2 ships same day
3 375-8002 Wheel $154.77 2 usually ships 10-16 days
4 375-9768 Circlip $4.49 2 usually ships 10-16 days
5 375-8003 Wheel bearing $41.80 2 usually ships 10-16 days
6 375-8004 Screw M.8 x 16 $3.96 3 usually ships 10-16 days
7 375-9732 Washer D8 $2.90 3 usually ships 10-16 days
8 375-8005 Support $130.90 1 usually ships 10-16 days
9a 375-8006 24V traction motor $1,170.29 1 usually ships 10-16 days
9b 375-8007 Carbon brush (2pc) $35.31 2 usually ships 10-16 days
10 375-9652 Washer D. 8 inox $2.90 8 usually ships 10-16 days
11 375-9619 Nut M8 inox Call for price 4 usually ships 10-16 days
12 375-8008 Support $147.73 1 usually ships 10-16 days
15 375-8009 Key $5.50 2 usually ships 10-16 days
16 375-8010 Screw M.6 x 16 $3.96 2 usually ships 10-16 days
17 375-9535 Washer D. 6 inox $2.90 4 usually ships 10-16 days
19 999-1600 Screw M6 x 16 pan head zinc $0.99 8 ships same day
20 375-9508 Washer D. 6 inox $2.90 8 usually ships 10-16 days
21 375-9499 Nut M6 inox $3.43 8 usually ships 10-16 days
22 375-8011 Bracket $43.23 1 usually ships 10-16 days
23 375-8012 Flap $19.25 1 usually ships 10-16 days
24 375-9536 Washer D. 6 x 18 inox $2.90 4 usually ships 10-16 days
25 375-8013 Protection $6.49 1 usually ships 10-16 days
