| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

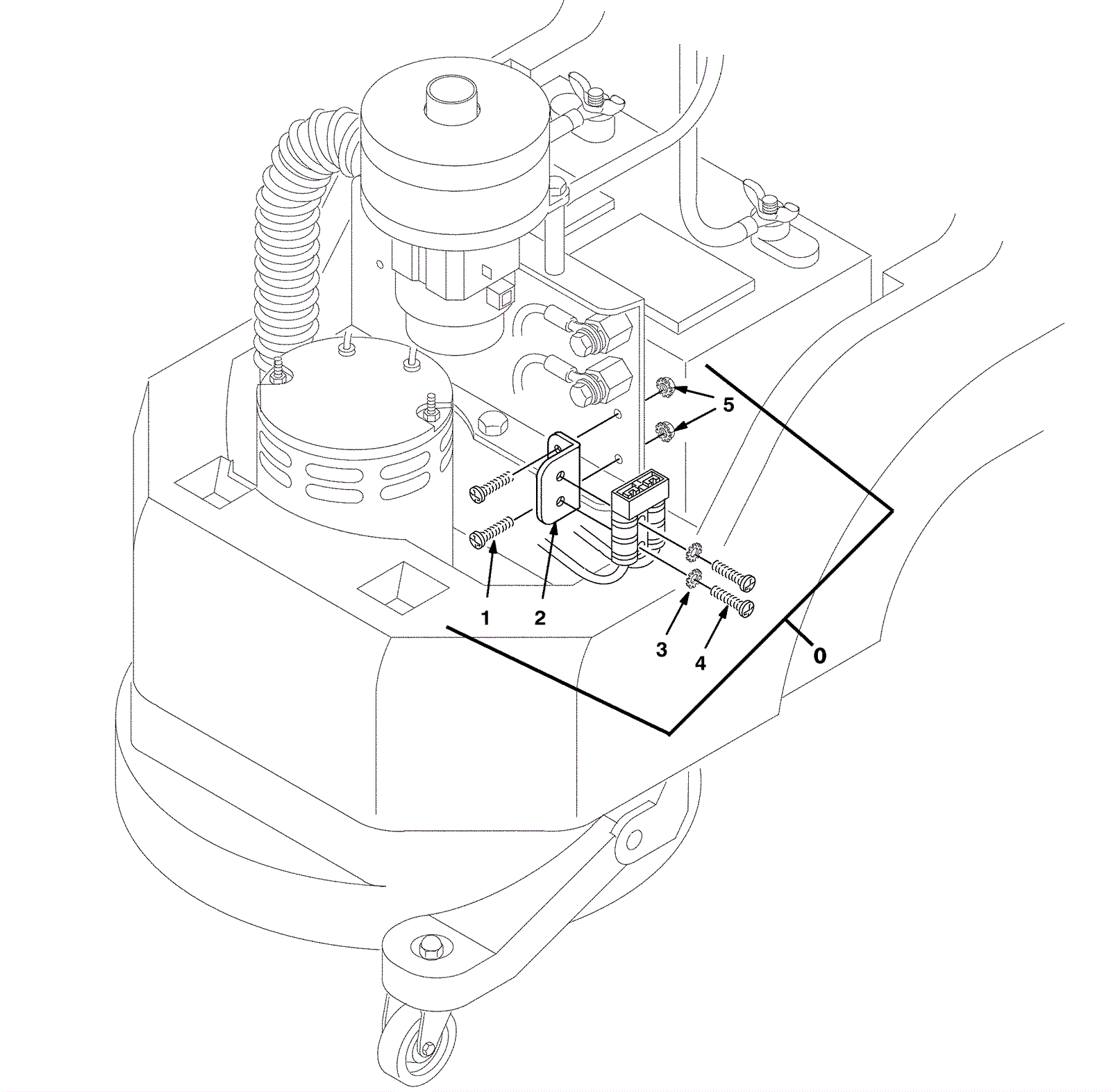

175-5841
|
Battery connector mount kit |
1 |
(includes 1-5) |
|
1 |
999-0811
|
Screw 10-32 x 3/8 pan head phillips stainless steel |
2 |
|
|
2 |
175-5842
|
Battery connector bracket |
1 |
|
|
3 |
999-0148
|
Washer #6 external star lock zinc plated |
2 |
|
|
4 |
999-0249
|
Screw 6-32 x 5/8 round head slotted zinc plated |
2 |
|
|
5 |
999-0356
|
Nut 10-24 lock stainless steel |
2 |
|
|
