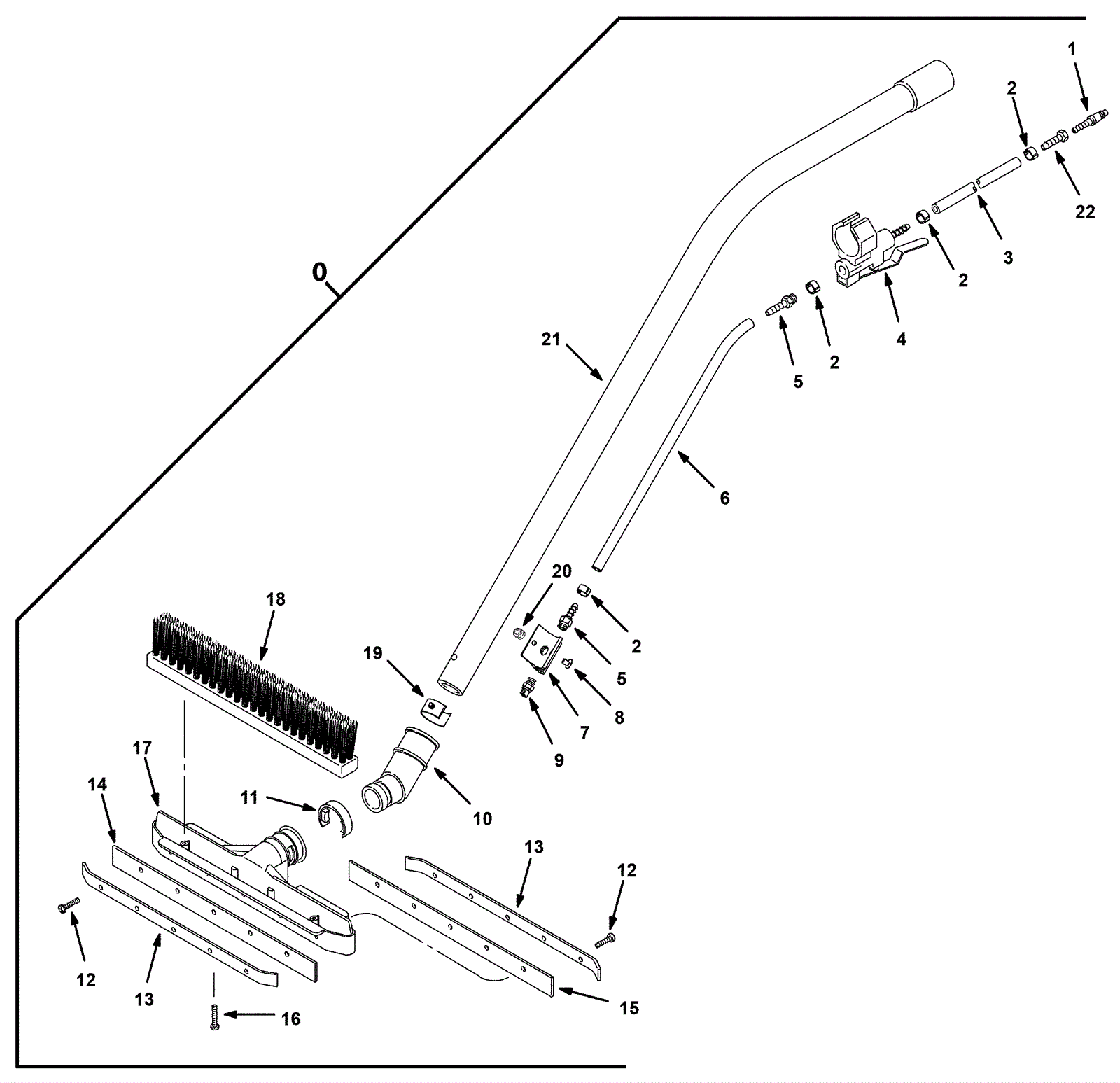

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
175-4677
|
Power wand assembly (OBSOLETE) |
1 |
(includes 1-22) |
|
1 |
175-6374
|
Male quick connect plug |
1 |
|
|
2 |
175-6346
|
Hose clamp |
4 |
|
|
3 |
175-5843
|
Hose |
1 |
|
|
4 |
175-4679
|
Water container valve (OBSOLETE) |
1 |
|
|
5 |
175-1659
|
Fitting |
2 |
|
|
6 |
175-5844
|
Hose |
1 |
|
|
7 |
175-6354
|
Spray nozzle adapter |
1 |
|
|
8 |
175-6355
|
Pop rivet |
2 |
|
|
9 |
175-4681
|
Spray nozzle |
1 |
|
|
10 |
175-4645
|
Swivel wand attachment (OBSOLETE) |
1 |
|
|
11 |
175-4682
|
Attachment ring |
1 |
|
|
12 |
175-4683
|
Screw self-tapping (OBSOLETE) |
10 |
|
|
13 |
175-4648
|
Blade retainer |
2 |
|
|
14 |
175-4649
|
Squeegee blade 13 inch urethane front (OBSOLETE) |
1 |
|
|
15 |
175-4650
|
Squeegee blade 13 inch urethane rear (OBSOLETE) |
1 |
|
|
16 |
175-4651
|
Screw 6 x 1 1/2 self tapping |
2 |
|
|
17 |
175-4652
|
Wand head (OBSOLETE) |
1 |
|
|
18 |
175-4653
|
Two row wand brush |
1 |
|
|
19 |
175-4654
|
Spring clip (OBSOLETE) |
1 |
|
|
20 |
175-6121
|
Brass plug |
1 |
|
|
21 |
175-4655
|
Single bend wand |
1 |
|
|
22 |
175-5468
|
Barbed fitting |
1 |
|
|
