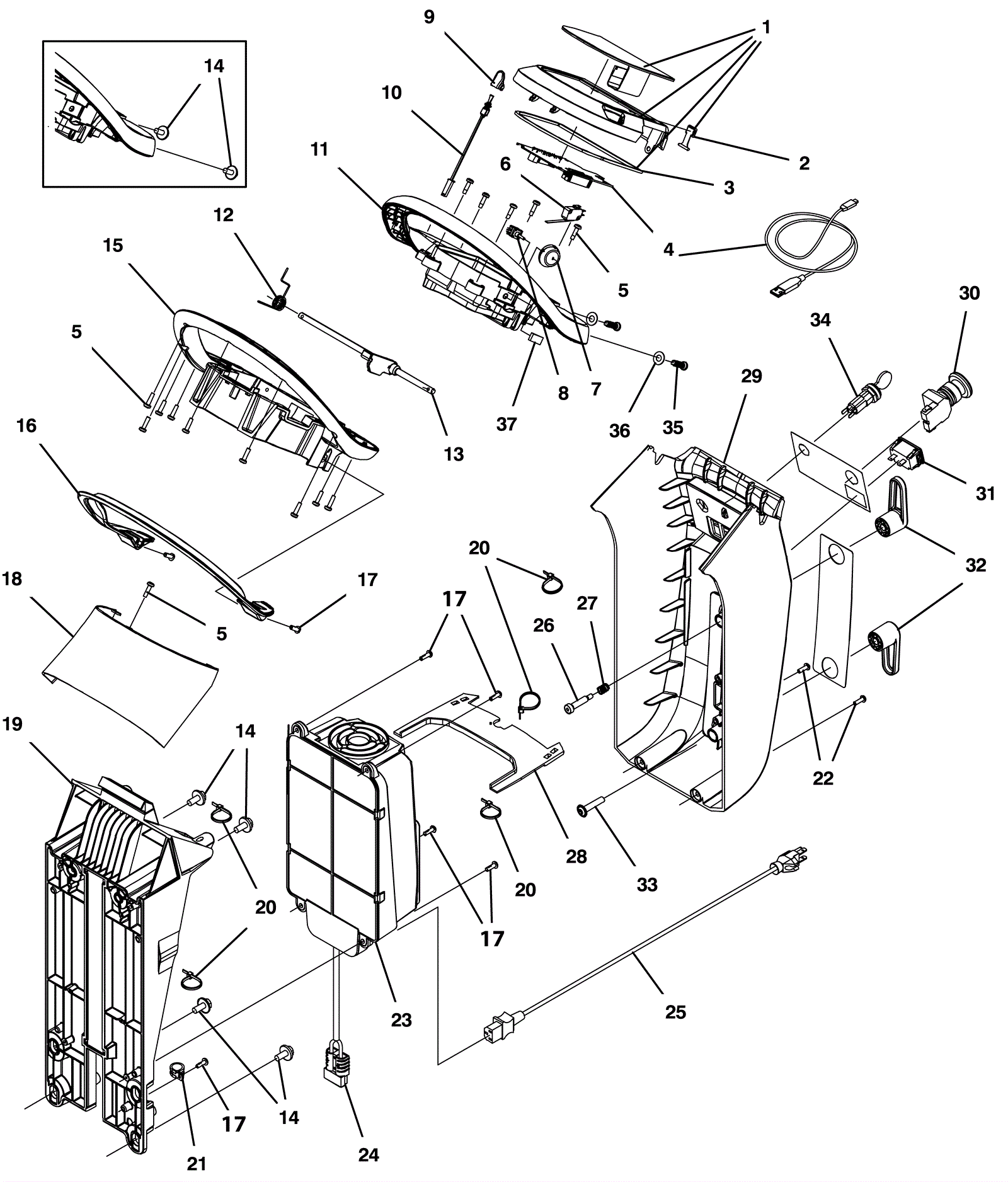

SPEEDGLEAM 7 Base Drive Console Assembly-Onboard Charger

#PartDescriptionPriceReqNotesAvailability
1 275-5450 Bezel kit (propel model) $384.01 1 (includes 2-3) (requires Tennant True service or an authorized Tennant service provider) usually ships 10-16 days
2 275-5430 USB cap $6.82 1 usually ships 10-16 days
3 375-9374 Console gasket $37.18 1 (after 0.3.2020) usually ships 10-16 days
4a 275-5431 Circuit board kit (includes USB cable) $498.08 1 (includes 4b) (requires Tennant True service or an authorized Tennant service provider) ships same day
4b 375-1351 USB to USB mini cable $15.29 1 usually ships 10-16 days
5 175-7660 Screw #10-14 x .675 shoulder self-tapping $3.04 16 ships same day
6 275-5433 Switch $9.57 1 usually ships 10-16 days
7 375-4600 Speed range dial $8.14 1 ships same day
8 275-5452 Potentiometer $81.73 1 ships same day
9 275-5453 Toggle cap $6.82 1 ships same day
10 275-5454 Toggle switch assembly $76.45 1 ships same day
11 275-5434 Top handle housing $85.25 1 usually ships 10-16 days
12 275-5435 Spring $29.26 1 usually ships 1-5 days
13 275-5436 Handle shaft assembly $18.92 1 usually ships 10-16 days
14 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 6 (4 pieces after SN 10795904) (6 pieces before SN 10795905) ships same day
15 275-5437 Bottom handle housing $85.80 1 usually ships 10-16 days
16 275-5438 Bail $46.31 1 usually ships 10-16 days
17 999-1403 Screw M8 x 16mm torx head $2.90 7 ships same day
18 275-5439 Handle cover $18.04 1 usually ships 10-16 days
19 375-0185 Control column frame $265.74 1 usually ships 1-5 days
20 175-7795 Cable tie $4.75 4 ships same day
21 275-5443 P clamp $5.50 1 usually ships 1-5 days
23 275-5447 36V 25amp onboard battery charger $1,236.95 1 (includes 24) ships same day
24 991-2105 SB50 50amp charger plug with pins (gray) $6.72 1 ships same day
25a 275-5446 16/3 power cord 15 foot (black) $56.43 1 (oem) ships same day
25b 991-5006 16/3 replacement power cord 50 foot (yellow) $37.50 1 (non-oem) ships same day
26 175-9855 Bolt M6-.8 x 30mm shield $7.70 2 (1 piece after SN 10980968) (2 pieces before SN 10980969) usually ships 10-16 days
27 175-7507 Compression spring $4.09 2 (1 piece after SN 10980968) (2 pieces before SN 10980969) ships same day
28 275-5448 Charger cover $12.32 1 usually ships 1-5 days
29 275-5444 Console cover $323.40 1 usually ships 10-16 days
30 275-1416 Safety shut-off switch $40.81 1 ships same day
31 275-9900 Hour meter $53.79 1 ships same day
32 275-5449 Cord hook $3.04 2 usually ships 10-16 days
33 375-9373 Screw M6 x 1 x 30, 10.9 $1.32 1 usually ships 10-16 days
34a 175-7872 Key switch with 2 keys $53.13 1 (includes 34b) ships same day
34b 991-1634 Key (pkg of 2) $10.67 1 ships same day
35 375-3186 Screw $9.13 2 (after SN 10795904) usually ships 10-16 days
36 999-0024 Washer 5/16 flat stainless steel $1.34 2 (after SN 10795904) ships same day
37 475-2983 SEAL, AFMKT, RBR, CLSD, ADH, 01FT $3.17 1 (after 03.2020) usually ships 10-16 days
