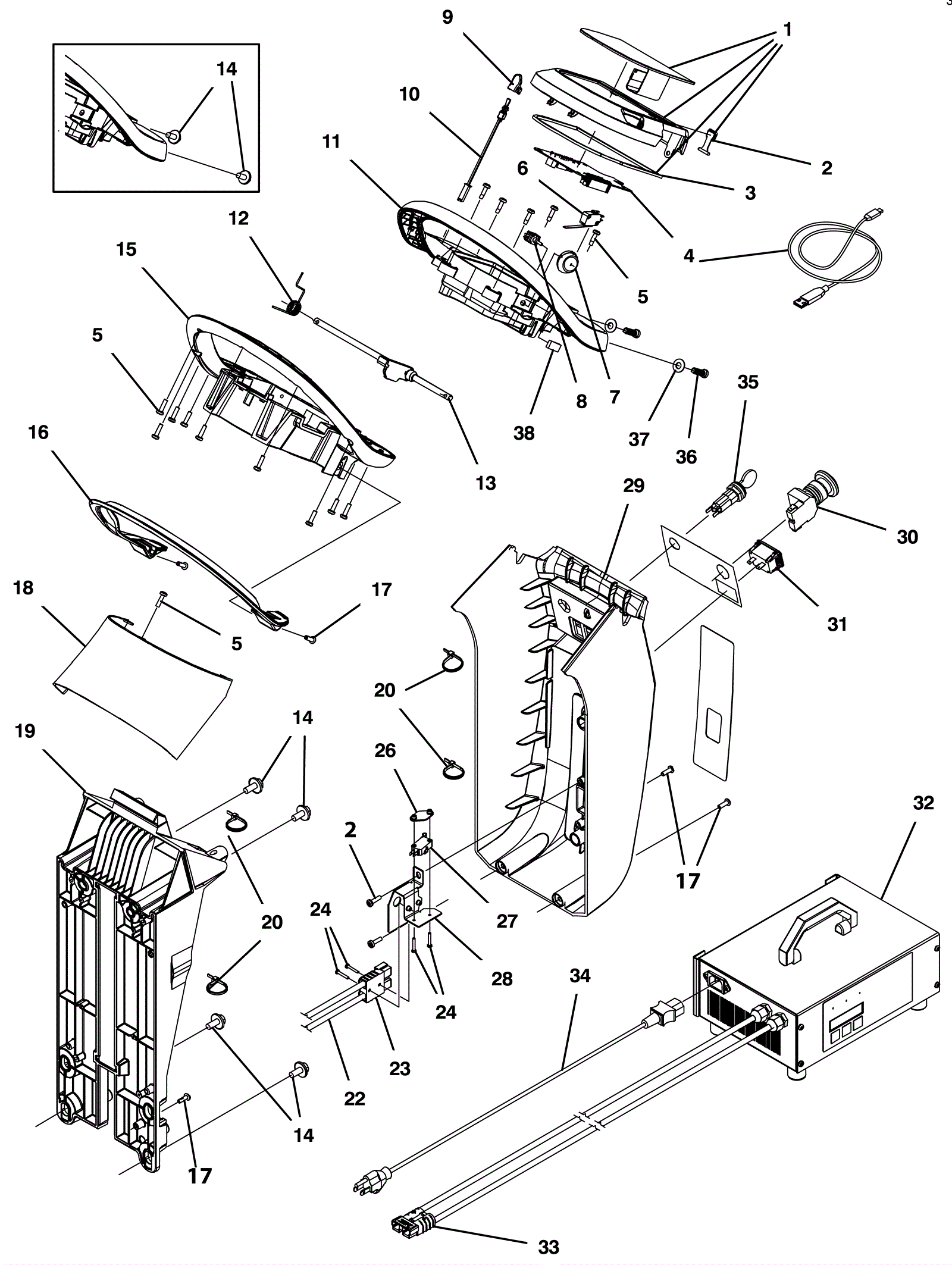

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
275-5450
|
Bezel kit (propel model) |
$410.96
|
1 |
(includes 2-3) (requires Tennant True service or an authorized Tennant service provider) |
usually ships 10-16 days |
2 |
275-5430
|
USB cap |
$7.37
|
1 |
|
usually ships 10-16 days |
3 |
375-9374
|
Console gasket |
$39.82
|
1 |
(after 03.2020) |
usually ships 10-16 days |
4a |
275-5431
|
Circuit board kit (includes USB cable) |
$532.95
|
1 |
(includes 4b) (requires Tennant True service or an authorized Tennant service provider) |
ships same day |
4b |
375-1351
|
USB to USB mini cable |
$16.39
|
1 |
|
usually ships 10-16 days |
5 |
175-7660
|
Screw #10-14 x .675 shoulder self-tapping |
$3.30
|
18 |
|
ships same day |
6 |
275-5433
|
Switch |
$10.34
|
1 |
|
usually ships 10-16 days |
7 |
375-4600
|
Speed range dial |
$8.80
|
1 |
|
ships same day |
8 |
275-5452
|
Potentiometer |
$87.56
|
1 |
|
ships same day |
9 |
275-5453
|
Toggle cap |
$7.37
|
1 |
|
ships same day |
10 |
275-5454
|
Toggle switch assembly |
$81.84
|
1 |
|
usually ships 10-16 days |
11 |
275-5434
|
Top handle housing |
$91.30
|
1 |
|
usually ships 10-16 days |
12 |
275-5435
|
Spring |
$31.35
|
1 |
|
usually ships 1-5 days |
13 |
275-5436
|
Handle shaft assembly |
$20.35
|
1 |
|
usually ships 10-16 days |
14 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
$4.49
|
6 |
(4 pieces for SN's after 10995904) (6 pieces for SN's before 10995905) |
usually ships 10-16 days |
15 |
275-5437
|
Bottom handle housing |
$91.85
|
1 |
|
usually ships 10-16 days |
16 |
275-5438
|
Bail |
$49.61
|
1 |
|
usually ships 10-16 days |
17 |
999-1403
|
Screw M8 x 16mm torx head |
$2.90
|
5 |
|
ships same day |
18 |
275-5439
|
Handle cover |
$19.36
|
1 |
|
usually ships 10-16 days |
19 |
375-0185
|
Control column frame |
$265.74
|
1 |
|
usually ships 1-5 days |
20 |
175-7795
|
Cable tie |
$5.15
|
4 |
|
ships same day |
22 |
275-5441
|
Cable assembly |
$165.44
|
1 |
(includes 23) |
usually ships 10-16 days |
23 |
991-2103
|
50amp charger plug SB50 with pins (red) |
$7.19
|
1 |
|
ships same day |
24 |
999-1040
|
Screw M3-.5 x 20mm pan head |
$0.99
|
4 |
|
ships same day |
26 |
175-7839
|
Switch plate |
$36.08
|
1 |
|
usually ships 10-16 days |
27 |
375-0226
|
Mircroswitch |
$11.11
|
1 |
|
ships same day |
28 |
375-0046
|
Charger plug bracket |
$32.45
|
1 |
|
usually ships 10-16 days |
29 |
275-5444
|
Console cover |
$323.40
|
1 |
|
usually ships 10-16 days |
30 |
275-1416
|
Safety shut-off switch |
$43.67
|
1 |
|
ships same day |
31 |
275-9900
|
Hour meter |
$57.64
|
1 |
|
ships same day |
32a |
275-5445
|
36V 25amp off board battery charger |
$1,280.29
|
1 |
(includes 33) (for 180-250 AH wet lead acid batteries) |
ships same day |
32b |
375-1210
|
36V 25amp off board battery charger |
$1,280.29
|
1 |
(includes 33) (for 200-350 AH AGM batteries) |
usually ships 1-5 days |
32c |
375-1396
|
36V 25amp off board battery charger |
$1,280.29
|
1 |
(includes 33) (for 260-360
(includes 33) (for 260-360 AH Wet lead acid batteries) |
usually ships 10-16 days |
33 |
991-2105
|
SB50 50amp charger plug with pins (gray) |
$7.19
|
1 |
|
ships same day |
34a |
275-5446
|
16/3 power cord 15 foot (black) |
$60.39
|
1 |
(oem) |
ships same day |
34b |
991-5006
|
16/3 replacement power cord 50 foot (yellow) |
$49.95
|
1 |
(non-oem) |
usually ships 11-15 days |
35a |
175-7872
|
Key switch with 2 keys |
$53.13
|
1 |
|
ships same day |
35b |
991-1634
|
Key (pkg of 2) |
$14.21
|
1 |
|
ships same day |
36 |
375-3186
|
Screw |
$9.79
|
2 |
(after SN 10795905) |
usually ships 10-16 days |
37 |
999-0024
|
Washer 5/16 flat stainless steel |
$1.34
|
2 |
(after SN 10795905) |
usually ships 12-18 days |
38 |
475-2983
|
SEAL, AFMKT, RBR, CLSD, ADH, 01FT |
$3.43
|
1 |
(after 03.2020) |
usually ships 10-16 days |
