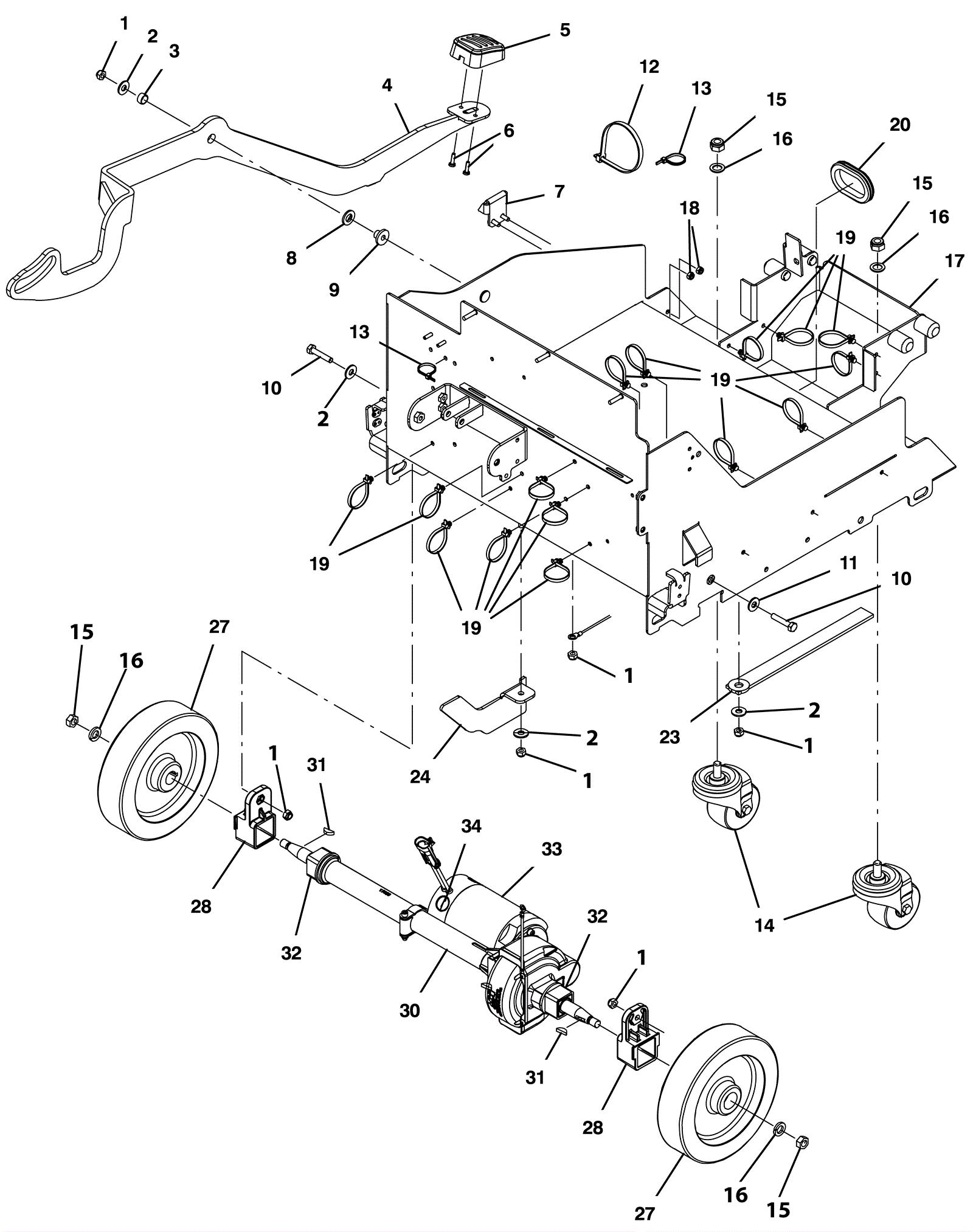

SPEEDGLEAM 7 Drive Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 6 ships same day
2 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 5 ships same day
3 275-5191 Bearing $11.11 1 usually ships 10-16 days
4 275-5361 Pedal weldment $152.13 1 ships same day
5 275-5193 Pedal cover $14.19 1 ships same day
6 175-7660 Screw #10-14 x .675 shoulder self-tapping $3.30 2 ships same day
7 175-7883 Foot pedal locking bracket $58.85 1 usually ships 10-16 days
8 999-9214 Washer M8 flat nylon $0.99 1 usually ships 12-18 days
9 275-5194 Bushing $11.11 1 usually ships 10-16 days
10 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 2 ships same day
12 175-2226 Nylon wire tie $4.49 1 ships same day
13 175-7795 Cable tie $5.15 2 ships same day
14 275-5195 Caster wheel kit $123.31 2 (includes 15-16) ships same day
15 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 6 ships same day
16 175-1825 Washer $5.15 6 usually ships 10-16 days
17 275-5362 Main frame weldment $1,722.38 1 usually ships 10-16 days
18 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
19 275-5197 Fir tree clip $2.38 19 usually ships 10-16 days
20 275-9295 Rubber grommet $5.33 1 usually ships 1-5 days
23 275-9261 Static strip with grommet $28.16 1 usually ships 10-16 days
24 475-0757 BRACKET, FOLLOWER, HEAD $11.11 1 usually ships 10-16 days
27 275-1449 Wheel with taper $180.40 2 (serial numbers between 0 and 10818256 were replaced with this part) ships same day
28 275-5900 Axle mount $16.39 2 usually ships 10-16 days
30 275-5364 Transaxle $1,652.64 1 (includes 31-34) usually ships 10-16 days
31 275-1448 Square keyway $4.49 2 usually ships 10-16 days
32 175-3660 Transaxle sleeve $11.11 2 usually ships 10-16 days
33 175-4018 24V transaxle motor $855.36 1 (includes 34) usually ships 10-16 days
34 175-4019 Carbon brush kit (pkg of 4) $137.17 1 usually ships 10-16 days
