SS3

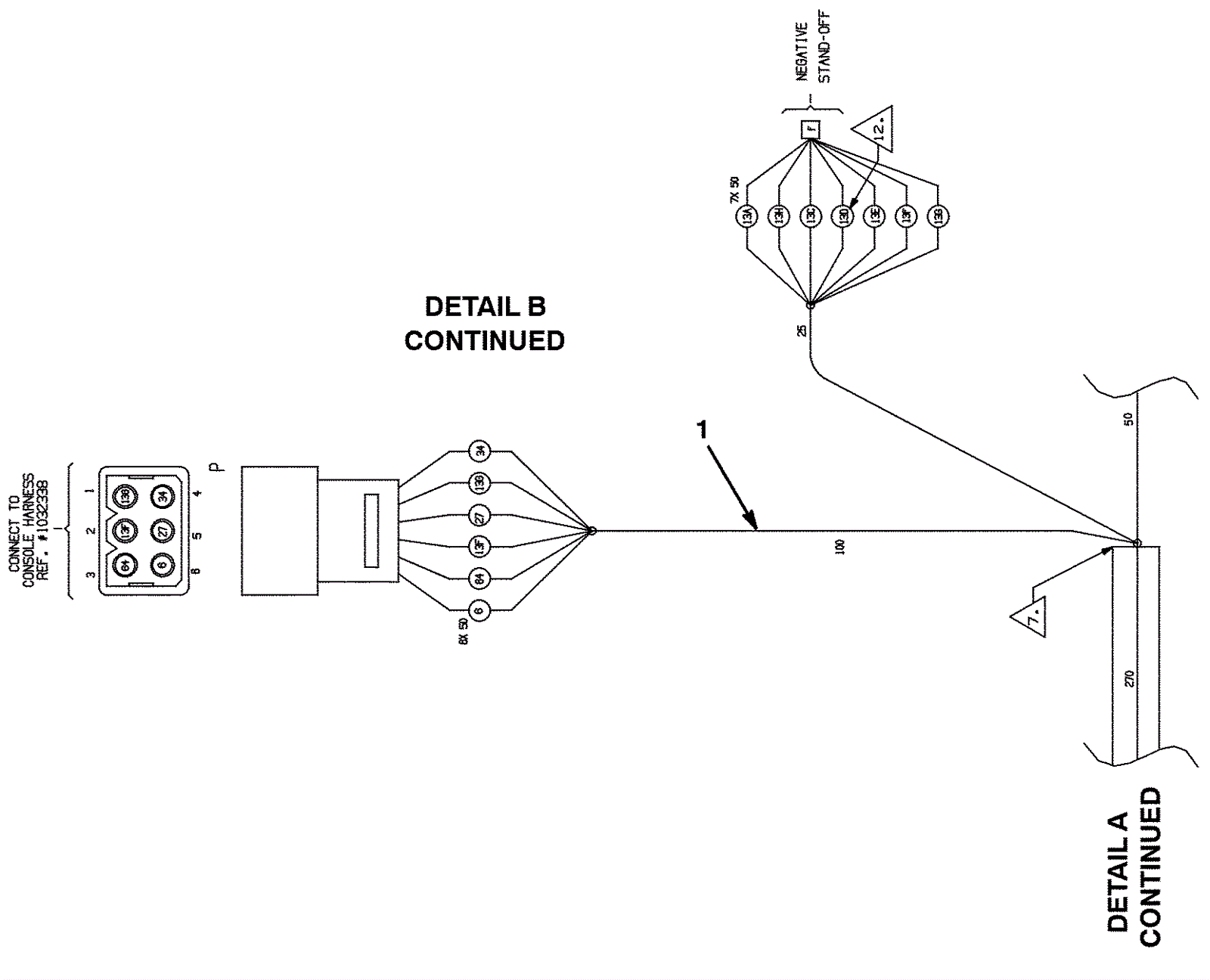

Main Wire Harness Assembly - Brush Assist - Part 3
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
275-6320
Main wire harness
$285.45
1
(includes 2-4)
usually ships 10-16 days
2
175-7880
25amp fuse
$4.49
1
usually ships 10-16 days
3
175-7881
5amp fuse
$4.09
1
usually ships 1-5 days
4
175-2216
Diode plug
$13.20
3
ships same day
