T380AMR

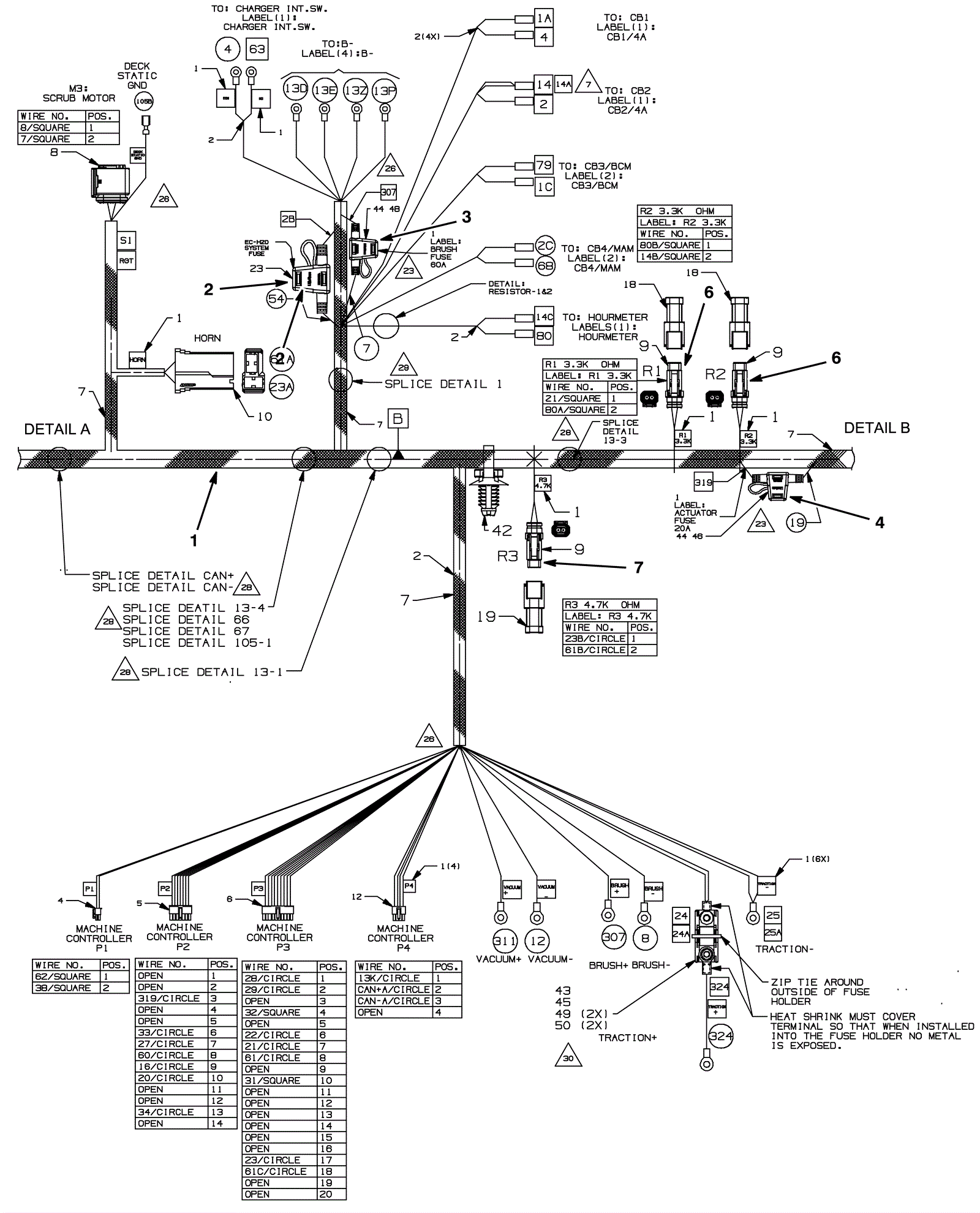

Main Wire Harness Assembly-2
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
375-7967
Main harness
$1,649.20
1
(includes 1-4, 6-7)
usually ships 6-16 days
2
375-7968
125A fuse
$55.10
1
usually ships 6-16 days
3
375-7969
68A fuse
$47.90
1
usually ships 6-16 days
4
375-7970
20A fuse
$47.90
1
usually ships 6-16 days
6
375-7971
Plug resistor
$10.90
2
usually ships 6-16 days
7
375-7972
Plug resistor
$10.40
1
usually ships 6-16 days
N/S
375-7788
Up trunk harness
$1,168.30
1
usually ships 6-16 days
