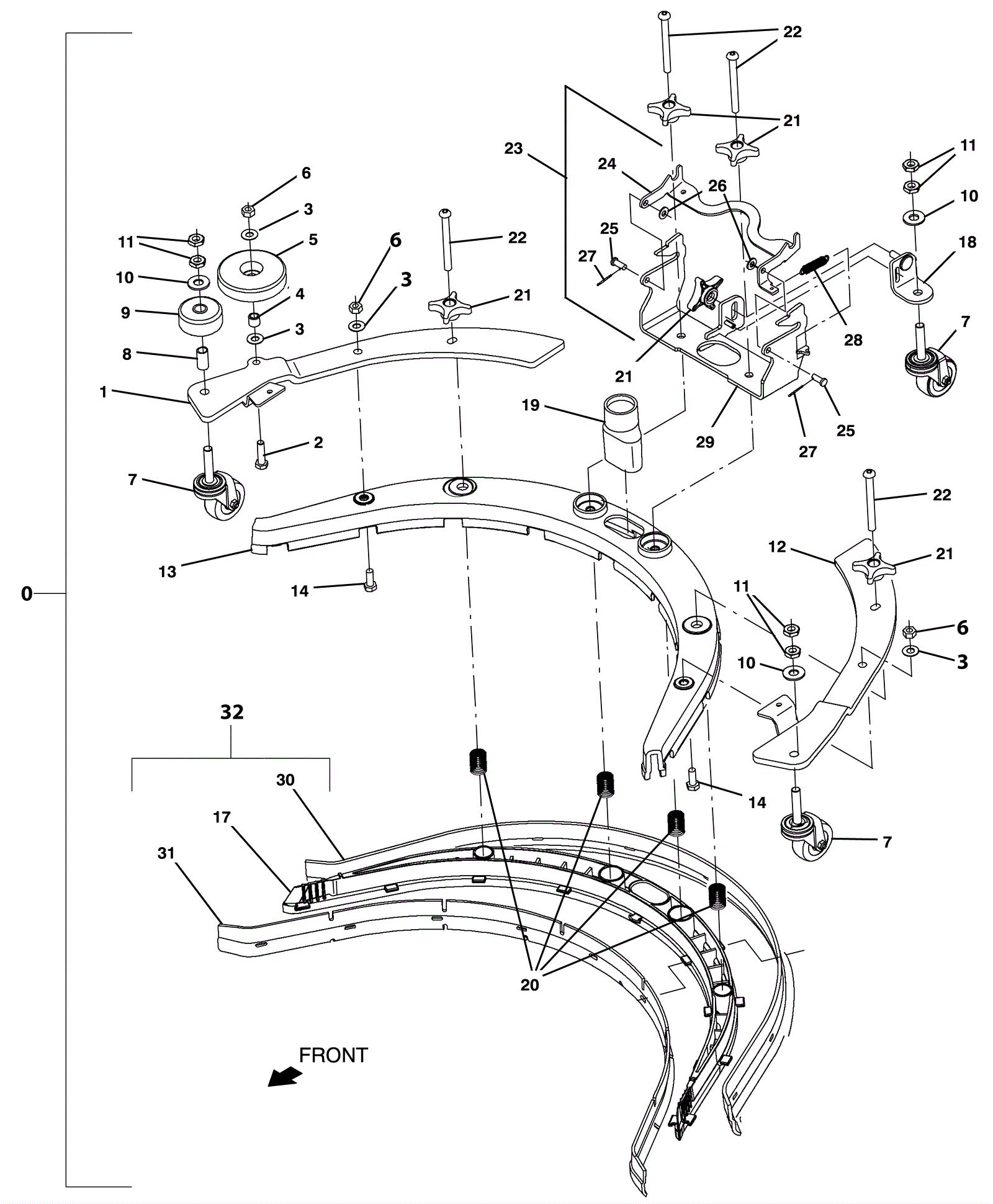

T380AMR Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
0 375-5104 20 inch squeegee kit $602.69 1 (includes 1-30a, 31a, 32a) usually ships 10-16 days
1 375-4200 Right hand squeegee support weldment bracket $85.58 1 usually ships 10-16 days
2 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 1 ships same day
3 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
4 175-2249 Sleeve $3.83 1 ships same day
5 175-7919 Guide wheel $5.50 1 ships same day
6 999-1424 Nut M8-1.25 hex stainless steel $1.65 3 ships same day
7 375-4201 2 inch caster swivel (Tennant Industrial) $7.70 3 usually ships 10-16 days
8 375-4202 Sleeve $6.16 1 usually ships 10-16 days
9 175-2245 Wheel $9.68 1 ships same day
10 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
11 999-1625 Nut M10-1.5 hex jam stainless steel $1.54 4 ships same day
12 375-4203 Left hand squeegee support weldment bracket $84.92 1 usually ships 10-16 days
13 375-4204 50 cm squeegee frame $190.08 1 usually ships 10-16 days
14 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
17 375-4205 50 cm squeegee retainer $52.36 1 usually ships 10-16 days
18 375-4206 Squeegee caster weldment bracket $15.62 1 usually ships 10-16 days
19 375-4207 50 cm squeegee coupling $11.77 1 usually ships 10-16 days
20 275-0143 Compression spring $4.88 4 ships same day
21 375-0261 Star knob M8-1.25 $9.57 5 ships same day
22 375-0262 Screw M8-1.25 x 80mm button socket stainless steel $17.16 4 ships same day
23 375-5105 20 inch squeegee bracket kit $203.28 1 (includes 24-29) usually ships 10-16 days
24 375-4209 Squeegee release bracket $41.25 1 usually ships 10-16 days
25 375-4210 Clevis pin $4.09 2 usually ships 10-16 days
26 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
27 175-2361 Cotter pin $3.04 2 ships same day
28 375-4211 Extension spring $5.50 1 usually ships 10-16 days
29 375-5106 Squeegee bracket weldment $67.32 1 usually ships 10-16 days
30a 375-4213 Squeegee blade 20 inch linatex rear $42.57 1 usually ships 10-16 days
30b 375-4216 Squeegee blade 20 inch gum rubber rear $16.50 1 usually ships 10-16 days
30c 375-4219 Squeegee blade 20 inch urethane rear $49.72 1 usually ships 10-16 days
31a 375-4214 Squeegee blade 20 inch linatex front $36.63 1 usually ships 10-16 days
31b 375-4285 Squeegee blade 24 inch urethane front $33.44 1 usually ships 10-16 days
31c 375-4220 Squeegee blade 20 inch urethane front $32.89 1 usually ships 10-16 days
32a 375-5107 Squeegee blade linatex kit $97.68 1 (includes 30a, 31a) usually ships 10-16 days
32b 375-5108 Squeegee blade gum kit $50.05 1 (includes 30b, 31b) usually ships 10-16 days
32c 375-5109 Squeegee blade urethane kit $77.77 1 (includes 30c, 31c) ships same day
