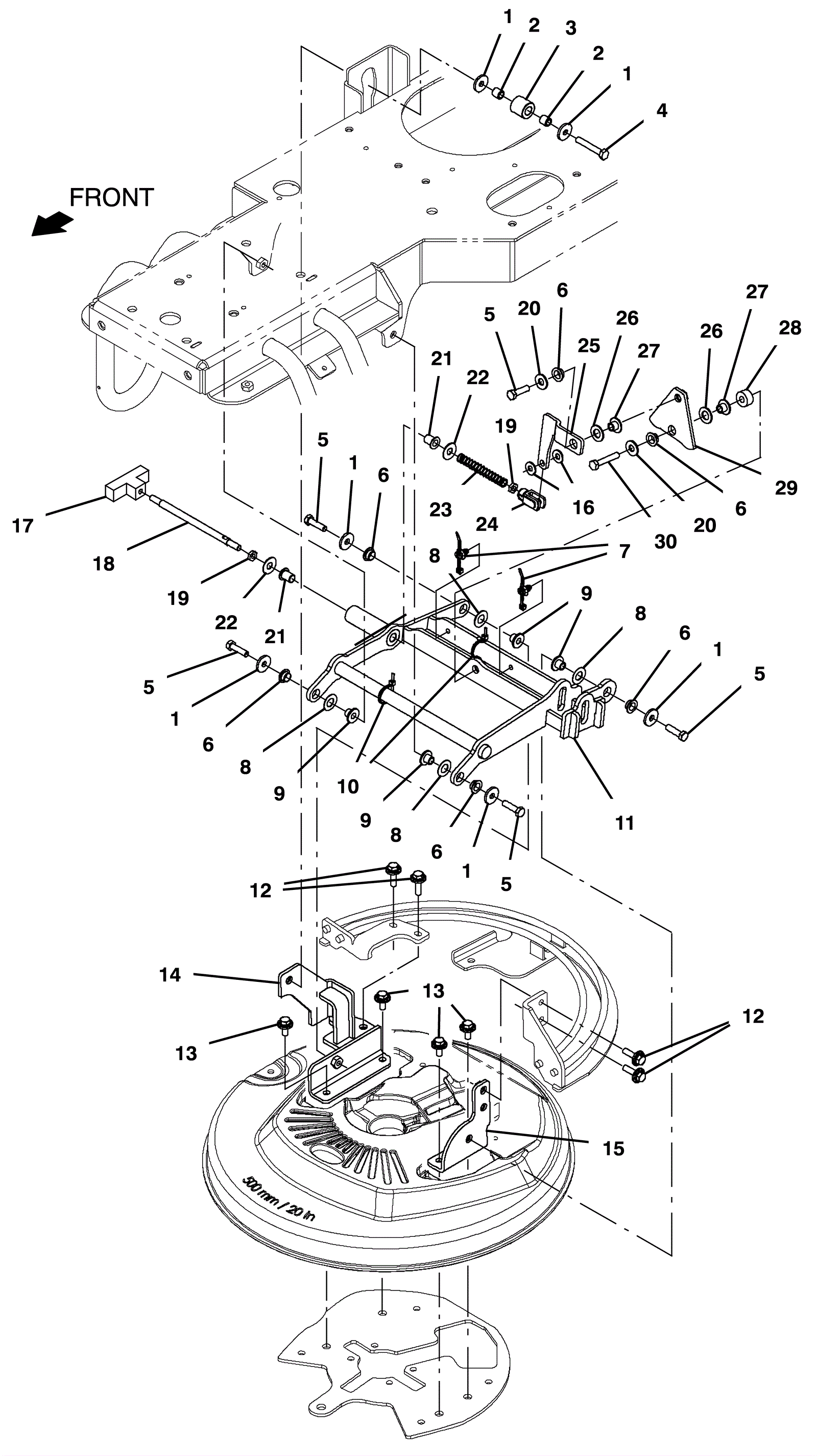

T380AMR Scrub Head Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-7920 Washer M8 flat stainless steel $4.49 6 ships same day
2 175-2249 Sleeve $4.22 2 ships same day
3 175-7911 Roller $10.67 1 usually ships 13-17 days
4 999-1297 Screw M8 x 50mm hex head stainless steel $2.86 1 ships same day
5 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 5 ships same day
6 375-4181 Plastic flange bushing, 12.0B 7.0L 14.0D $5.50 6 usually ships 13-17 days
7 275-5197 Fir tree clip $2.38 2 usually ships 13-17 days
8 175-7812 Washer flat $5.28 4 ships same day
9 375-4180 Flange bushing, 8.3B 11.8D 9.7L $5.61 4 usually ships 13-17 days
10 175-7795 Cable tie $5.15 2 ships same day
11 375-7945 Magnet lift head $332.42 1 usually ships 13-17 days
12 999-1653 Screw M8-1.25 x 30mm hex head stainless steel $4.36 4 ships same day
13 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 4 ships same day
14 375-7946 Head mounting bracket $209.11 1 usually ships 13-17 days
15 375-7947 Head mounting bracket $106.37 1 usually ships 13-17 days
16 999-1530 Washer 3/8 flat nylon $0.99 2 ships same day
17 375-7948 Pull handle (yellow) $44.11 1 usually ships 13-17 days
18 375-7949 Threaded rod $72.27 1 usually ships 13-17 days
19 175-4006 Nut M8 x 1.25 hex jam $4.49 2 usually ships 13-17 days
20 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 usually ships 19-32 days
21 375-9372 Flange bushing 10mm x 12mm x 17mm $37.29 2 usually ships 13-17 days
22 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
23 175-7018 Compression spring $5.50 1 ships same day
24 375-7950 Clevis pin $22.77 1 usually ships 13-17 days
25 375-7951 Release link plate $51.92 1 usually ships 13-17 days
26 999-0566 Washer 1/2 flat nylon $0.99 2 ships same day
27 375-7952 Bushing $42.35 2 usually ships 13-17 days
28 375-7953 Spacer release mounting bracket $16.39 1 usually ships 13-17 days
29 375-7954 Brush release plate $53.68 1 usually ships 13-17 days
30 999-1426 Screw M8-1.25 x 45mm hex head stainless steel $3.04 1 ships same day
