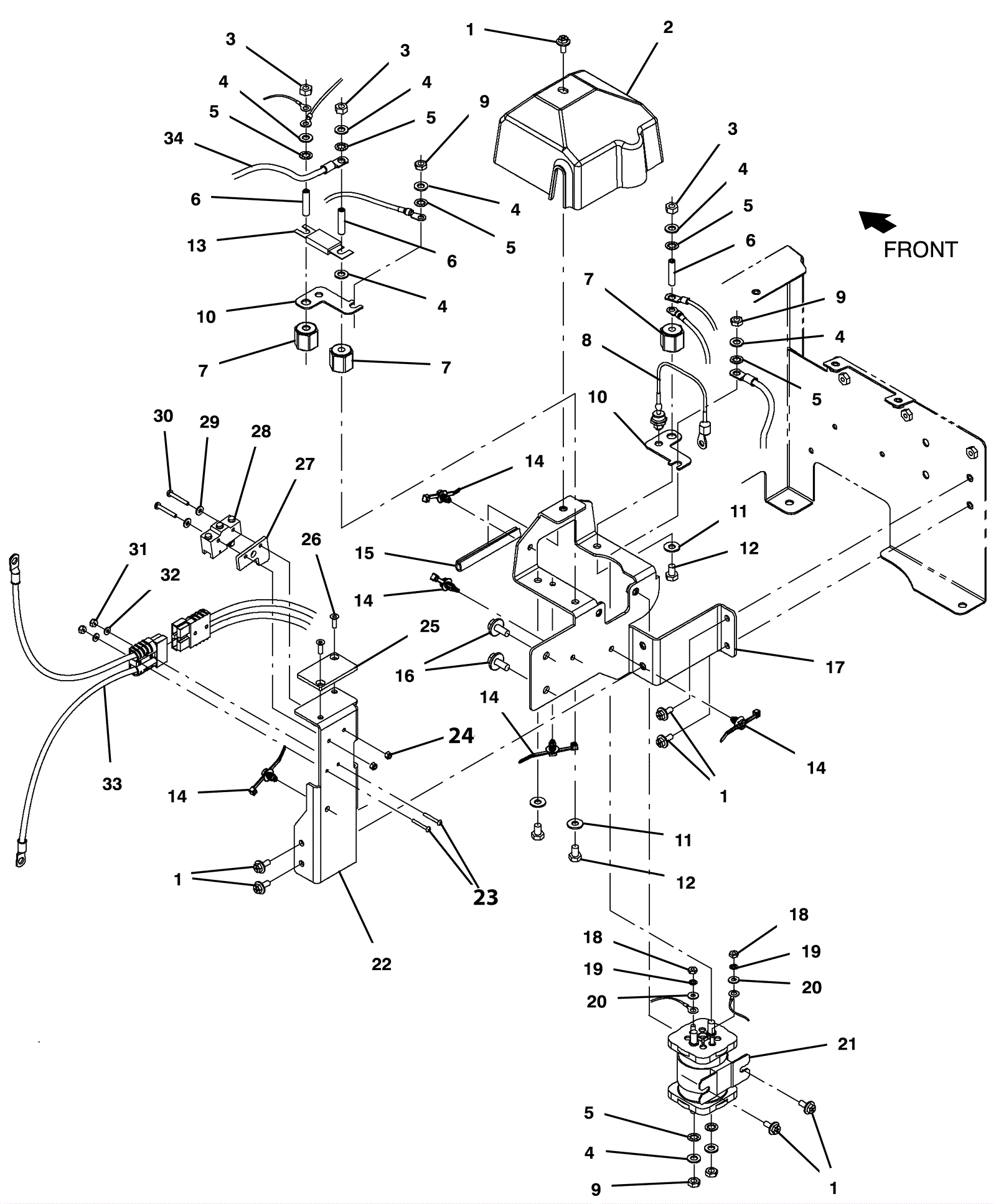

T380AMR Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 7 ships same day
2 375-7929 Contractor cover $154.55 1 usually ships 10-16 days
3 999-0579 Nut M8-1.25 hex coarse thread zinc $0.99 3 ships same day
4 275-5475 Washer M8-.4 x 1.6mm brass $3.04 6 usually ships 1-5 days
5 999-1053 Washer 5/16 internal star lock stainless steel $0.99 6 ships same day
6 175-4271 Screw M8 x 35mm set $4.88 3 usually ships 10-16 days
7 375-0176 Insulated stand-off $13.20 3 usually ships 1-5 days
8 375-7777 Electrical harness $143.99 1 ships same day
9 999-0763 Nut 5/16-24 hex jam plain finish $0.99 4 ships same day
10 375-7930 Busbar $68.64 1 usually ships 10-16 days
11 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
12 175-0591 Bolt M8-1.25 x 12mm hex head $4.88 3 usually ships 1-5 days
13 275-1438 100amp fuse $58.96 1 ships same day
14 275-5197 Fir tree clip $2.11 5 usually ships 10-16 days
15 275-8203 Molding $45.21 1 usually ships 1-5 days
16 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 1 ships same day
17 375-7931 Contactor mounting bracket $123.64 1 usually ships 10-16 days
18 275-8219 Nut 10-32 hex head stainless steel $3.04 2 usually ships 1-5 days
19 999-1026 Washer #10 internal lock stainless steel $0.99 2 ships same day
20 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
21 375-7779 24V 200amp contactor $395.23 1 usually ships 10-16 days
22 375-7933 Charger mounting bracket $60.39 1 usually ships 10-16 days
23 275-8223 SCREW, PAN, PHL, 06-32 X 1.00, G1 (Tennant Industrial) $4.40 2 usually ships 10-16 days
24 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 2 ships same day
25 375-4197 Squeegee rest pad $24.42 1 usually ships 10-16 days
26 175-2897 Screw M5 x 16mm $5.50 2 usually ships 1-5 days
27 375-7932 Guard switch plate $9.90 1 usually ships 10-16 days
28 375-7772 Snap switch $31.13 1 ships same day
29 999-0266 Washer #8 SAE flat stainless steel $0.99 2 ships same day
30 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel $0.99 2 usually ships 12-18 days
31 175-3224 Nut 6-32 hex lock $4.09 2 usually ships 10-16 days
32 999-0377 Washer 6 SAE flat plain finish $0.99 2 ships same day
33 375-7934 Charger cable $72.05 1 usually ships 10-16 days
34 375-7935 Electric cable $128.92 1 usually ships 10-16 days
