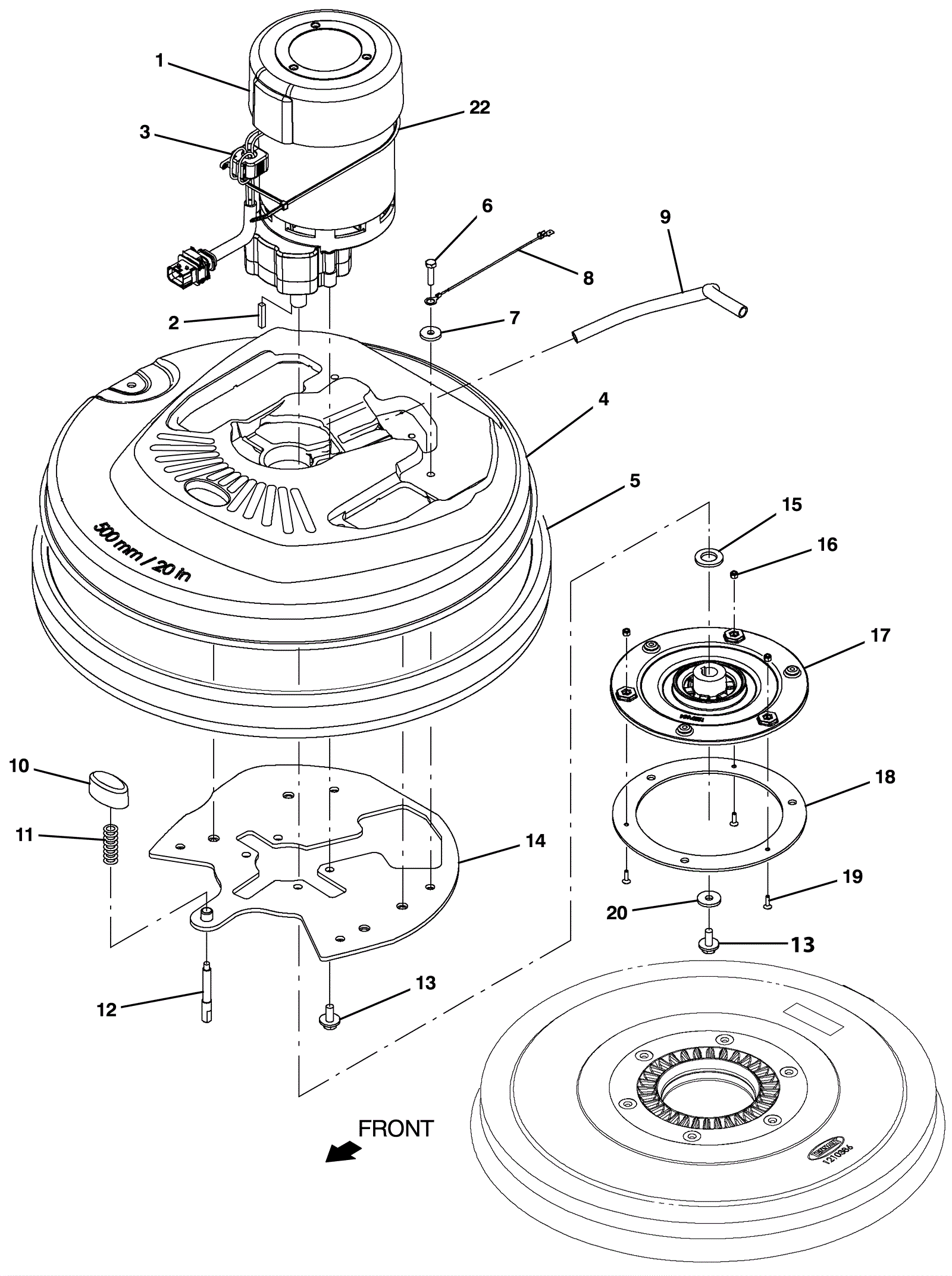

T380AMR Scrub Head Assembly

#PartDescriptionPriceReqNotesAvailability
1a 375-7871 24V motor $740.74 1 (includes 1b-3) usually ships 10-16 days
1b 375-3153 Carbon brush kit (pkg of 4) $40.04 1 usually ships 10-16 days
2 275-1468 Square keyway $4.88 1 usually ships 10-16 days
3 375-7728 Inductor (Tennant Industrial) $19.17 1 usually ships 10-16 days
4 375-0209 20 inch (500mm) brush housing $132.55 1 usually ships 10-16 days
5 175-7916 20 inch (500mm) bumper with bristle skirt $144.76 1 ships same day
6 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 3 ships same day
7 175-1097 Washer flat stainless steel $5.50 3 ships same day
8 375-0108 Electrical harness $6.49 1 usually ships 10-16 days
9 375-7872 Hose $23.98 1 usually ships 10-16 days
10 375-0062 Plunger pad button $11.22 1 usually ships 10-16 days
11 375-0061 Spring $11.44 1 usually ships 10-16 days
12 375-0206 Stop pin $25.63 1 usually ships 10-16 days
13 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 5 ships same day
14 375-3154 Plate weldment $94.71 1 usually ships 10-16 days
15 275-1469 Shaft spacer $8.25 1 usually ships 10-16 days
16 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 3 ships same day
17 375-4183 Magnetic drive hub (OBSOLETE) $159.28 1 usually ships 10-16 days
18 375-0068 Magnetic hub ring $24.64 1 ships same day
19 375-4184 Screw M4-0.7 x 14mm flat head socket stainless steel $1.19 3 usually ships 10-16 days
20 175-7920 Washer M8 flat stainless steel $4.09 1 ships same day
22 175-6617 Cable tie $6.17 1 usually ships 10-16 days
