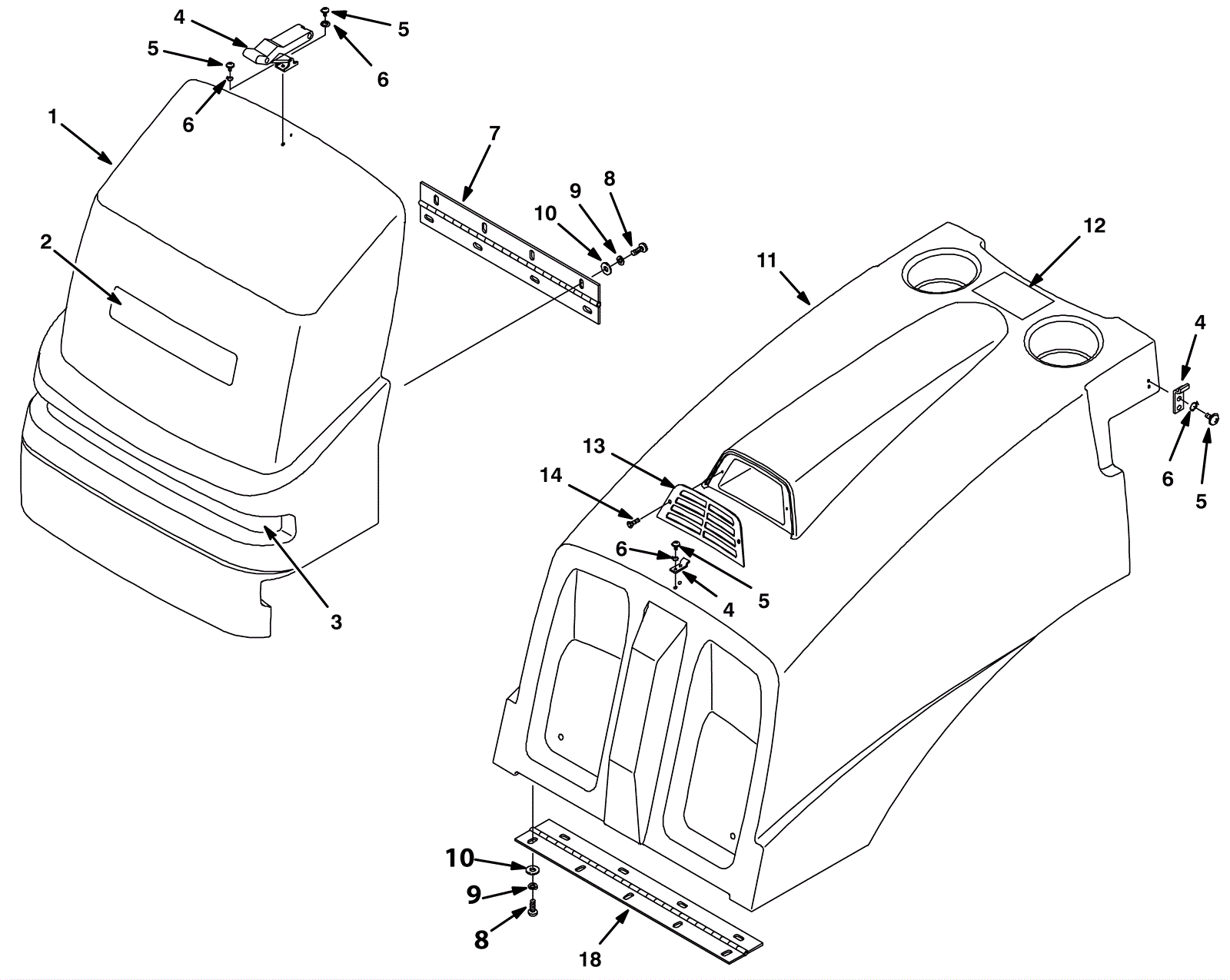

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
275-0758
|
Dust bag cover |
$840.51
|
1 |
|
usually ships 1-5 days |
2 |
275-5867
|
Front decal |
$10.12
|
1 |
(nobles logo decal) |
ships same day |
3 |
175-1223
|
Decal |
$29.15
|
1 |
|
usually ships 10-16 days |
4 |
375-7802
|
Latch |
$41.03
|
3 |
|
usually ships 10-16 days |
5 |
999-0530
|
Screw M4-.7 x 8mm pan head slotted zinc |
$0.99
|
12 |
|
ships same day |
6 |
999-1083
|
Washer #8 internal star lock stainless steel |
$0.99
|
12 |
|
ships same day |
7 |
275-0759
|
Dust cover hinge |
$29.04
|
1 |
|
usually ships 10-16 days |
8 |
999-1041
|
Screw M6-1 x 12mm pan head phillips stainless steel |
$0.99
|
8 |
|
ships same day |
9 |
999-0632
|
Washer 1/4 split lock stainless steel |
$0.99
|
17 |
(before 03/2013) |
ships same day |
10 |
999-0016
|
Washer 1/4 flat plain finish |
$0.99
|
17 |
(before 03/2013) |
ships same day |
11 |
275-6553
|
Battery cover assembly |
$552.09
|
1 |
(battery cover with decal) |
usually ships 1-5 days |
12 |
275-1360
|
Warning decal |
$11.22
|
1 |
|
usually ships 10-16 days |
13 |
175-8792
|
Battery cover grill |
$14.85
|
1 |
|
usually ships 10-16 days |
14 |
999-0447
|
Screw 6-32 x 1/2 pan head phillips zinc plated |
$0.99
|
2 |
|
ships same day |
18 |
175-1224
|
Hinge |
$31.79
|
1 |
|
usually ships 10-16 days |
