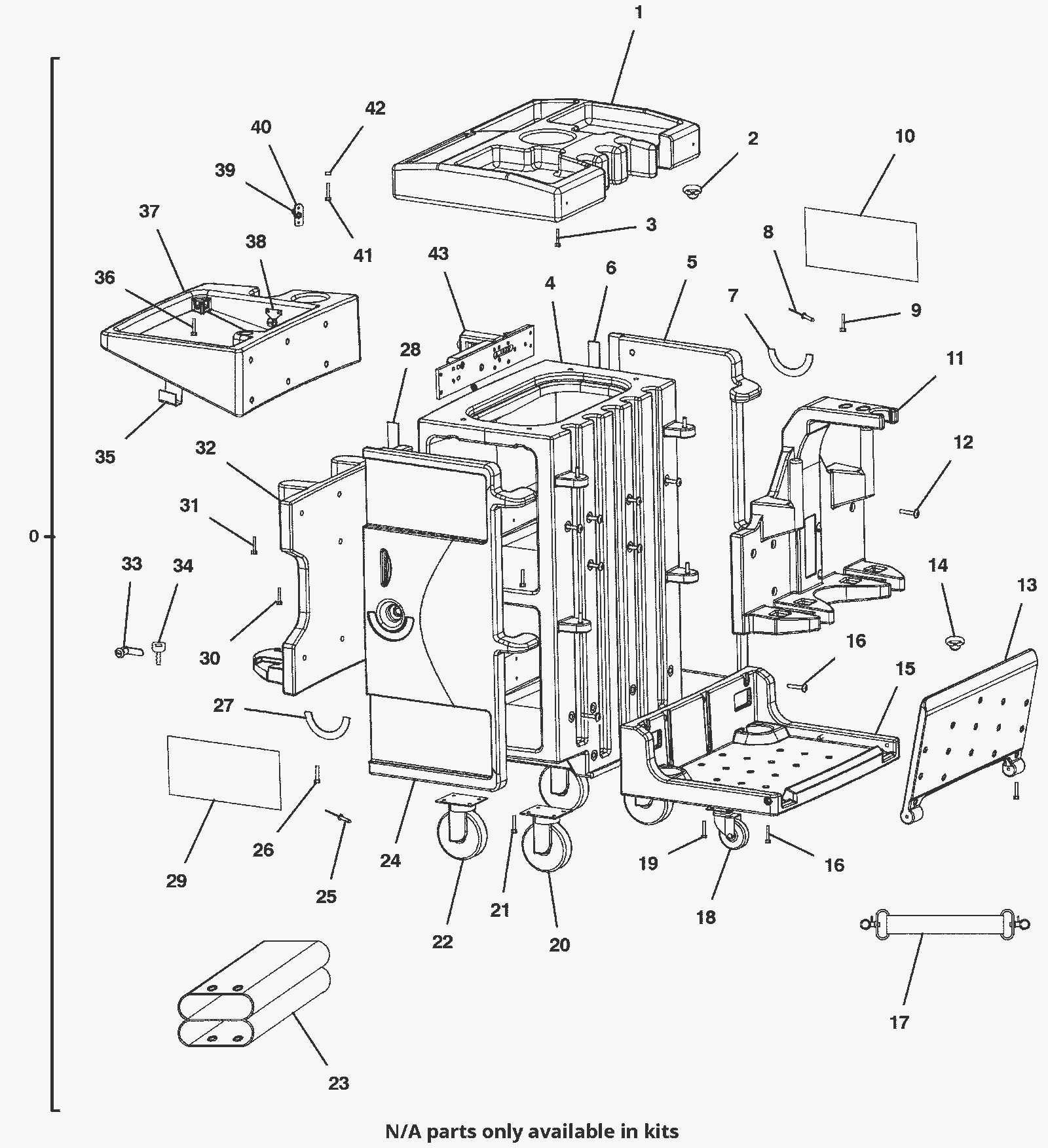

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(top cover) (only available with 0) |
|
2 |
N/A
|
Not available |
1 |
(ring screw) (only available with 0) |
|
3 |
N/A
|
Not available |
4 |
(screw) (only available with 0) |
|
4 |
N/A
|
Not available |
1 |
(main body) (only available with 0) |
|
5 |
475-2576
|
DOOR, CART, FRONT, LH [I-MOP] |
1 |
(includes 6-10) |
|
6 |
N/A
|
Not available |
1 |
(seal) (only available with 0 and 5) |
|
7 |
N/A
|
Not available |
1 |
(arc plate) (only available with 0 and 5) |
|
8 |
N/A
|
Not available |
7 |
(rivet) (only available with 0 and 5) |
|
9 |
N/A
|
Not available |
4 |
(screw) (only available with 0 and 5) |
|
10 |
N/A
|
Not available |
1 |
(plate) (only available with 0 and 5) |
|
11a |
475-2472
|
SUPPORT KIT, TANK, SMALL, CART [I-MOP] |
1 |
(includes 11b-12) |
|
11b |
N/A
|
Not available |
1 |
(tank holder) (only available with 0 and 11a) |
|
12 |
N/A
|
Not available |
6 |
(screw) (only available with 0 and 11a) |
|
13a |
475-2642
|
BASE KIT, CART [I-MOP] |
1 |
(includes 13b-17) |
|
13b |
N/A
|
Not available |
1 |
(bridge) (only available with 0 and 13a) |
|
14 |
N/A
|
Not available |
1 |
(ring screw) (only available with 0 and 13a) |
|
15 |
N/A
|
Not available |
1 |
(shelf) (only available with 0 and 13a) |
|
16 |
N/A
|
Not available |
8 |
(screw) (only available with 0 and 13a) |
|
17 |
375-9039
|
Ramp strap |
1 |
|
|
18a |
475-2509
|
CASTER KIT, CART [I-MOP] |
1 |
(includes 18b-22) |
|
18b |
N/A
|
Not available |
1 |
(caster) (only available with 0 and 18a) |
|
19 |
N/A
|
Not available |
4 |
(screw) (only available with 0 and 18a) |
|
20 |
N/A
|
Not available |
2 |
(front fixed caster) (only available with 0 and 18a) |
|
21 |
N/A
|
Not available |
16 |
(screw) (only available with 0 and 18a) |
|
22 |
N/A
|
Not available |
2 |
(rear caster) (only available with 0 and 18a) |
|
23 |
475-2136
|
BAG, CART [IMOP] |
1 |
|
|
24 |
475-2575
|
DOOR, CART, FRONT, RH [I-MOP] |
1 |
(includes 25-29) |
|
25 |
N/A
|
Not available |
7 |
(rivet) (only available with 0 and 24) |
|
26 |
N/A
|
Not available |
4 |
(screw) (only available with 0 and 24) |
|
27 |
N/A
|
Not available |
1 |
(arc plate) (only available with 0 and 24) |
|
28 |
N/A
|
Not available |
1 |
(seal) (only available with 0 and 24) |
|
29 |
N/A
|
Not available |
1 |
(plate) (only available with 0 and 24) |
|
30 |
N/A
|
Not available |
2 |
(magnet) (only available with 0) |
|
31 |
N/A
|
Not available |
2 |
(screw) (only available with 0) |
|
32 |
N/A
|
Not available |
1 |
(tank holder) (only available with 0) |
|
33 |
475-2155
|
LOCK, W/KEY [IMOP] |
1 |
(includes 34) |
|
34 |
375-9040
|
Key (pkg of 2) |
2 |
|
|
35a |
475-2521
|
HANDLE KIT, CART [I-MOP] |
1 |
(includes 35b-37) |
|
35b |
N/A
|
Not available |
1 |
(sign hanger) (only available with 0 and 35a) |
|
37 |
N/A
|
Not available |
1 |
(handle) (only available with 0 and 35a) |
|
38 |
N/A
|
Not available |
2 |
(hook) (only available with 0) |
|
39 |
475-1516
|
HOOK KIT, CORD, EXT [I-MOP] |
1 |
(includes 40) |
|
40 |
N/A
|
Not available |
1 |
(adapter) (only available with 0 and 39) |
|
41 |
N/A
|
Not available |
1 |
(screw) (only available with 0) |
|
43 |
N/A
|
Not available |
1 |
(plug socket) (only available with 0) |
|
