| # | Part | Description |
Req | Notes | Availability |
|---|

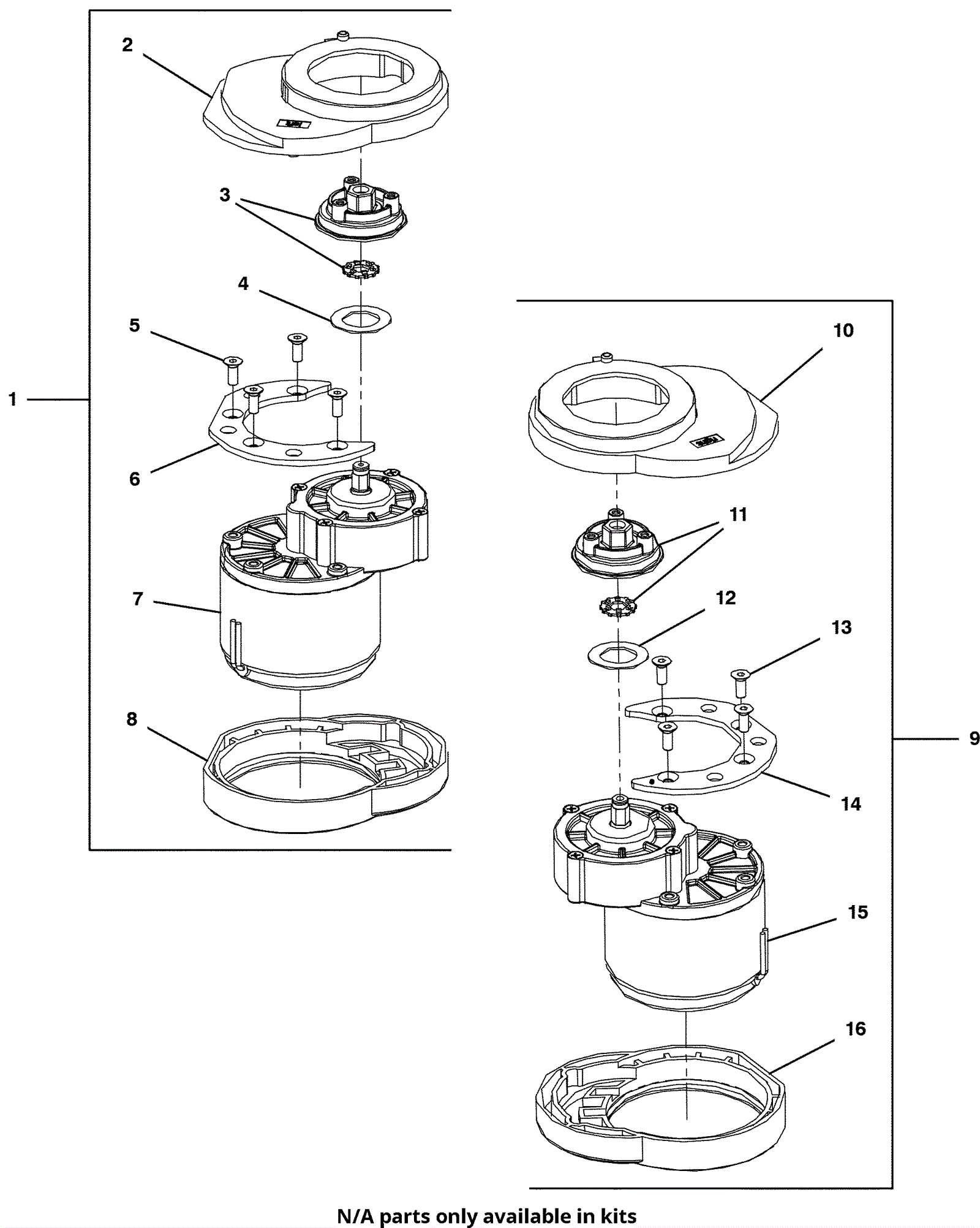

1 |
375-4108
|
Left hand brush motor |
1 |
(includes 2-8) |
|
2 |
N/A
|
Not available |
1 |
(left hand motor support) (only available with 1) |
|
3 |
375-4924
|
Driving wheel w/metal insert |
1 |
|
|
4 |
N/A
|
Not available |
1 |
(felt brush motor) (only available with 1) |
|
5 |
N/A
|
Not available |
4 |
(screw M6 x 16mm counter sunk) (only available with 1) |
|
6 |
N/A
|
Not available |
1 |
(left hand motor construction ring) (only available with 1) |
|
7 |
N/A
|
Not available |
1 |
(left hand helical gear) (only available with 1) |
|
8 |
N/A
|
Not available |
1 |
(left hand conductive rubber) (only available with 1) |
|
9 |
375-4107
|
Right hand brush motor |
1 |
(includes 10-16) |
|
10 |
N/A
|
Not available |
1 |
(right hand motor support) (only available with 9) |
|
11 |
375-4924
|
Driving wheel w/metal insert |
1 |
|
|
12 |
N/A
|
Not available |
1 |
(felt brush motor) (only available with 9) |
|
13 |
N/A
|
Not available |
4 |
(screw M6 x 16mm counter sunk) (only available with 9) |
|
14 |
N/A
|
Not available |
1 |
(right hand motor construction ring) (only available with 9) |
|
15 |
N/A
|
Not available |
1 |
(right hand helical gear) (only available with 9) |
|
16 |
N/A
|
Not available |
1 |
(right hand conductive rubber) (only available with 9) |
|
