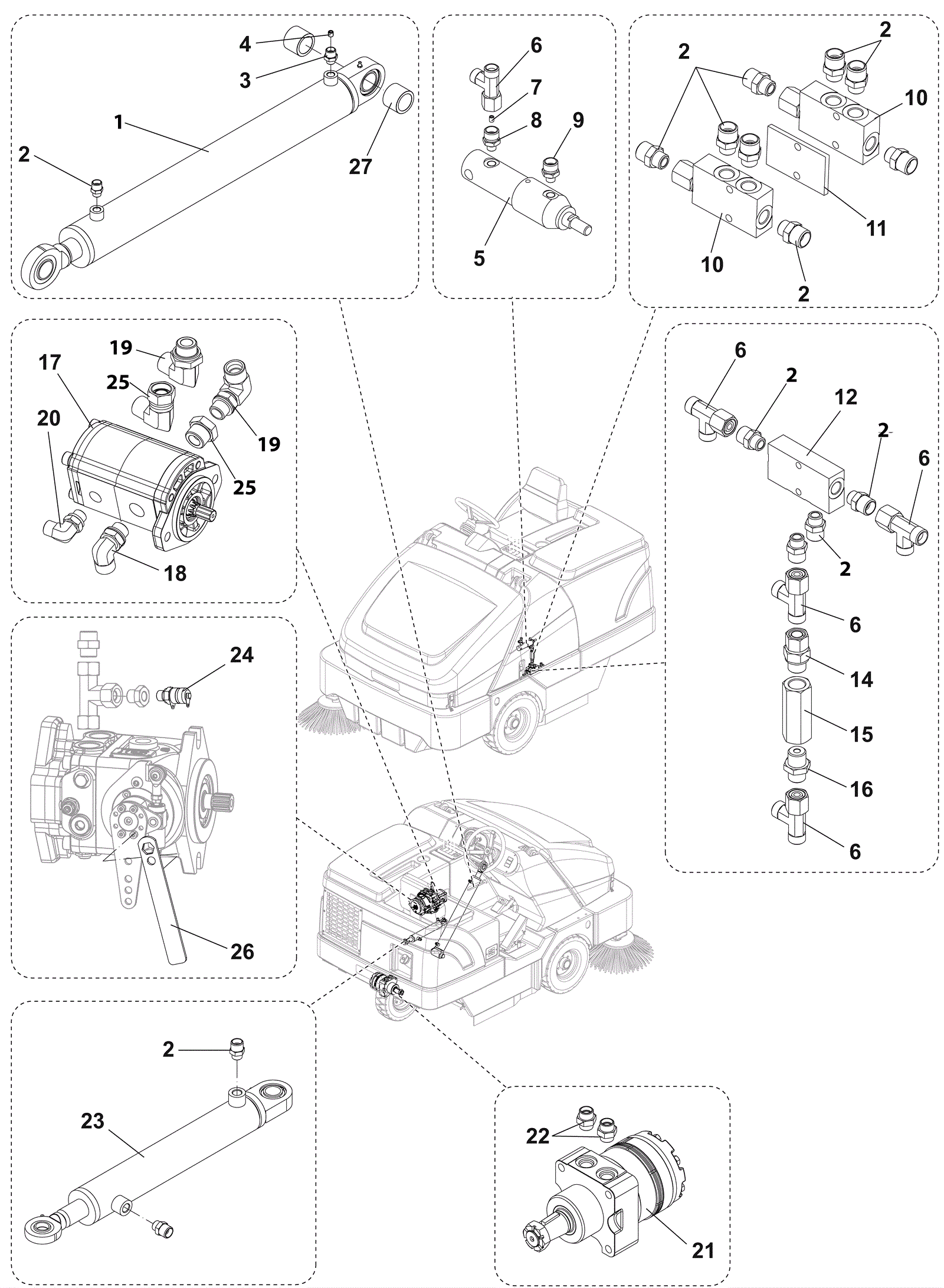

Proterra B Hydraulic Plant Assembly-3

#PartDescriptionPriceReqNotesAvailability
1a 472-3254 HOPPER CYLINDER $857.98 1 usually ships 17-28 days
1b 472-2256 GASKET CYLINDER KIT $147.59 1 usually ships 17-28 days
2 272-4292 1/4 inch pipe fitting $59.31 15 usually ships 1-5 days
3 472-2869 FITTING 1/4 IN $52.67 1 usually ships 17-28 days
4 472-3013 DOWEL M8X8 DIAM 1 $23.01 1 usually ships 17-28 days
5a 472-3252 MCRO CYLINDER 16/25/50 $321.78 1 usually ships 17-28 days
5b 472-3278 GASKET MICRO CYLINDER $124.59 1 usually ships 17-28 days
6 472-0500 PIPE FITTING $51.21 5 usually ships 17-28 days
7 472-2866 DOWEL M5X6 DIAM 0.5 $16.95 1 usually ships 17-28 days
8 472-2870 FITTING 1/8 $29.23 1 usually ships 17-28 days
9 472-2892 FITTINGS 1/8 IN $27.92 1 usually ships 17-28 days
10 572-8172 Check valve $206.91 2 usually ships 1-5 days
11 472-3048 PLATE VALVES $21.57 1 usually ships 17-28 days
12 472-2081 CUTOFF VALVE 1/4 $222.53 1 usually ships 17-28 days
14 472-2868 FITTINGS M3/8 IN-F10L $19.67 1 usually ships 17-28 days
15 472-2080 VALVE 3/8 NONRETURN $107.50 1 usually ships 17-28 days
16 272-4478 Pipe fitting $18.38 1 usually ships 1-5 days
17a 472-3392 PUMP HYDRAULIC TWIN KIT $1,684.68 1 usually ships 17-28 days
17b 472-3208 1 GASKETS HYDRAULIC MOT. KIT $126.03 1 usually ships 17-28 days
18 472-2609 ELBOW 90 M1/2 $77.12 1 usually ships 17-28 days
19a 472-2614 ELBOW $122.22 1 (for model number 13300107 before SN3810123500027) usually ships 17-28 days
19b 572-8173 Fitting $73.07 1 (for model number 13300107 after SN3810123500026) usually ships 1-5 days
20 472-2802 ELBOW $63.07 1 usually ships 17-28 days
21a 572-8174 Motor battery drive machine $2,040.02 1 usually ships 1-5 days
21b 472-3206 1 GASKETS HYDRAULIC MOT. KIT $261.79 1 usually ships 17-28 days
22 272-4244 1/2 inch nipple $26.20 2 usually ships 1-5 days
23a 472-3253 CYLINDER STEERING $498.29 1 usually ships 17-28 days
23b 272-4363 Gasket kit $113.42 1 usually ships 1-5 days
24 272-4488 1/4 inch test port fitting $27.64 1 usually ships 1-5 days
25a 472-0523 REDUCER-- $16.09 1 (for model number 13300107 before SN3810123500027) usually ships 17-28 days
25b 572-8175 Fitting $67.29 1 (for model number 13300107 after SN3810123500026) usually ships 1-5 days
26 472-3285 WRENCH 14 $24.60 1 usually ships 17-28 days
27 472-3226 SPACER $12.31 2 usually ships 17-28 days
