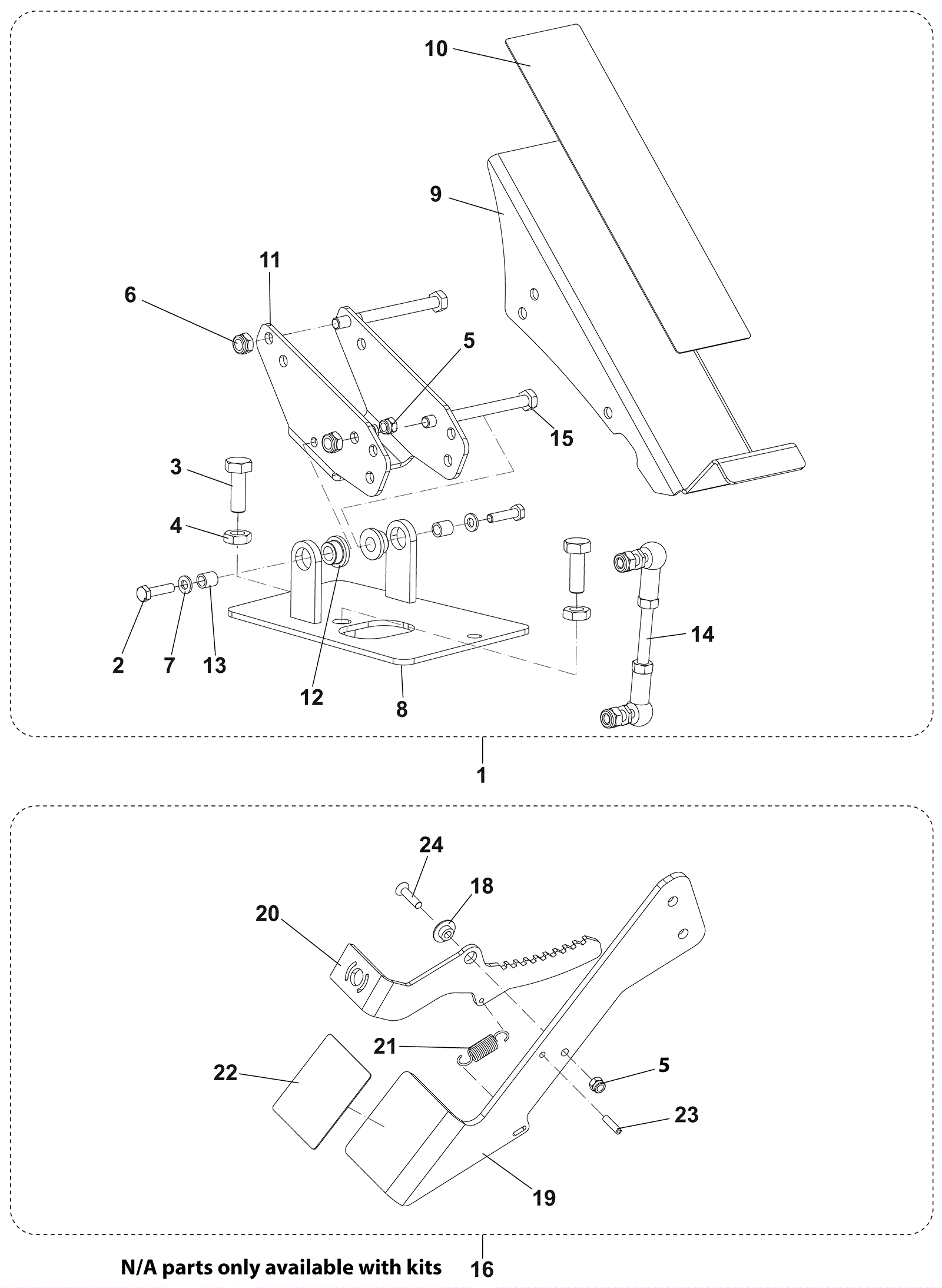

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
472-2956
|
FOOT PEDAL UPPER KIT |
1 |
(includes 1-15) |
|
2 |
999-0779
|
Screw M6-1 x 25mm hex head plain finish |
2 |
(included with KIT1) |
|
3 |
999-0246
|
Bolt M10-1.5 x 35mm hex head full thread |
1 |
(included with KIT1) |
|
4 |
999-6697
|
Nut M10-1.5 hex stainless steel |
2 |
(included with KIT1) |
|
5 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
3 |
(included with KIT1) |
|
6 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
(included with KIT1) |
|
7 |
999-1261
|
Washer M6 flat stainless steel |
2 |
(included with KIT1) |
|
8 |
472-2680
|
MOUNT WELDT PEDAL |
1 |
|
|
9 |
472-2681
|
FOOT PEDAL UPPER |
1 |
|
|
10 |
472-2682
|
MAT PEDAL |
1 |
|
|
11 |
472-2683
|
FOOT PEDAL LOWER |
1 |
|
|
12 |
472-2689
|
BEARING |
2 |
|
|
13 |
472-2690
|
BUSHING |
2 |
|
|
14 |
472-2957
|
CONNECTION PEDAL KIT |
1 |
|
|
15 |
999-9306
|
Screw M8-1.0 x 95 hex cap zinc |
2 |
(included with KIT1) |
|
16 |
472-2959
|
PEDAL BRAKE KIT |
1 |
(includes 5 (1pc), 17-24) |
|
18 |
472-2674
|
BUSH |
1 |
|
|
19 |
472-2675
|
PEDAL BRAKE |
1 |
|
|
20 |
472-2676
|
PARKING BRAKE LEVER |
1 |
|
|
21 |
472-2677
|
SPRING |
1 |
|
|
22 |
472-2719
|
MAT PEDAL |
1 |
|
|
23 |
N/A
|
Not available |
1 |
(spring pin) (only available with KIT1) |
|
24 |
999-1610
|
Screw M6-1 x 25mm flat head socket stainless steel |
1 |
(included with KIT1) |
|
KIT1 |
472-3149
|
PEDAL HARDWARE KIT |
1 |
(includes 2-7, 15, 23-24 |
|
