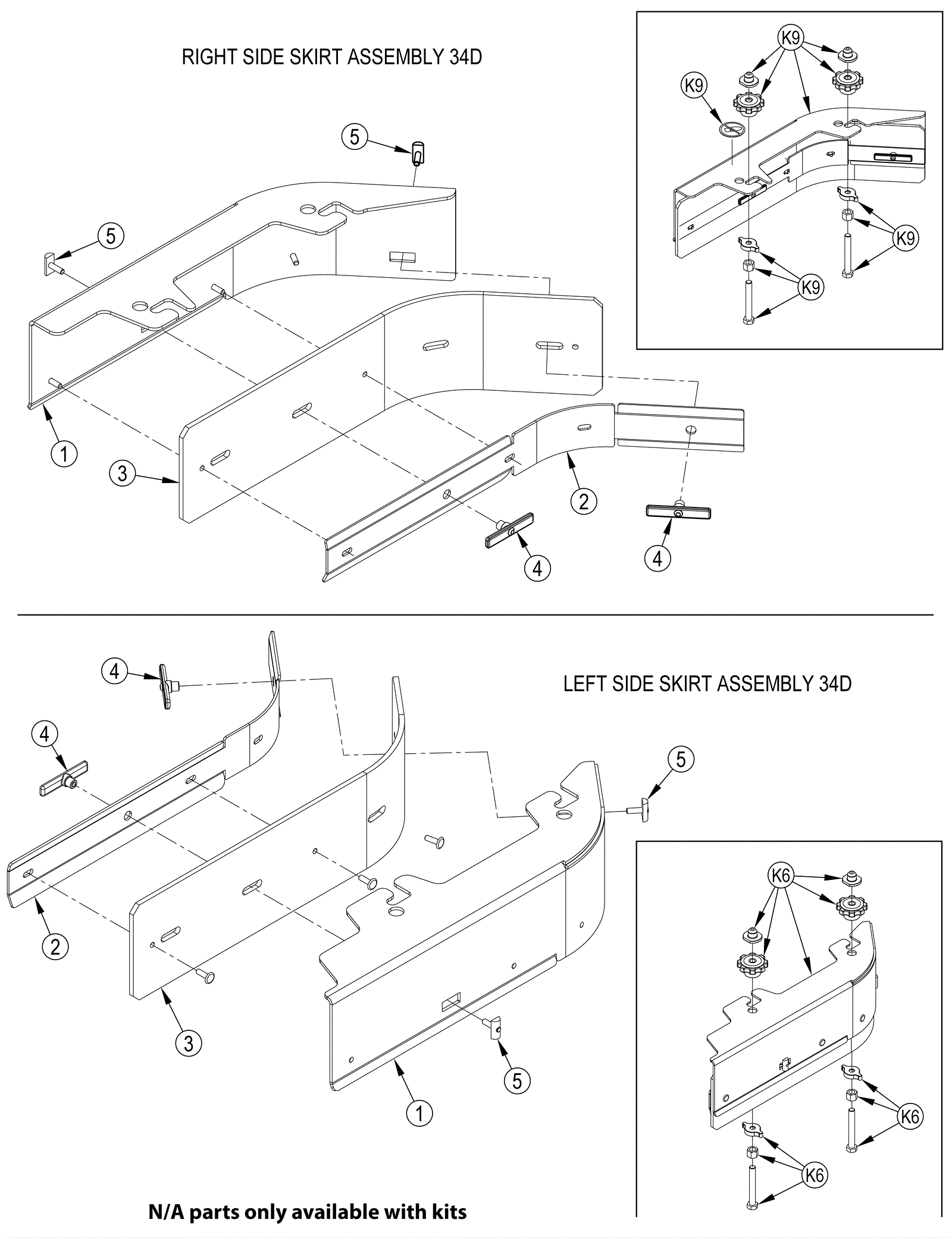

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1a |
572-8107
|
34D right fixed side blade weldment |
$431.86
|
1 |
(right) |
usually ships 16-41 days |
1b |
572-8108
|
34D left fixed side blade weldment |
$431.86
|
1 |
(left) |
usually ships 16-41 days |
2a |
N/A
|
Not available |
Call for price
|
1 |
(34d right strap) |
usually ships 3-26 days |
2b |
N/A
|
Not available |
Call for price
|
1 |
(34d left strap) |
usually ships 3-26 days |
3 |
572-8106
|
34D deck blade linatex |
$91.33
|
1 |
|
usually ships 16-41 days |
4 |
N/A
|
Not available |
Call for price
|
2 |
(thumb nut) |
usually ships 3-26 days |
5 |
272-3519
|
Skirt retainer (screw) |
$31.83
|
2 |
|
usually ships 16-41 days |
KIT6 |
572-8100
|
Left skirt kit |
$804.42
|
1 |
(includes 1b, 2b, 3-5) |
usually ships 16-41 days |
KIT9 |
572-8102
|
Disc right skirt kit |
$818.50
|
1 |
(includes 1a, 2a, 3-5) |
usually ships 16-41 days |
KIT14 |
572-8104
|
Disk right hand strap kit |
$148.63
|
1 |
(includes 2a, 4) |
usually ships 16-41 days |
KIT15 |
572-8105
|
Disk left hand strap kit |
$148.63
|
1 |
(includes 2b, 4) |
usually ships 16-41 days |
