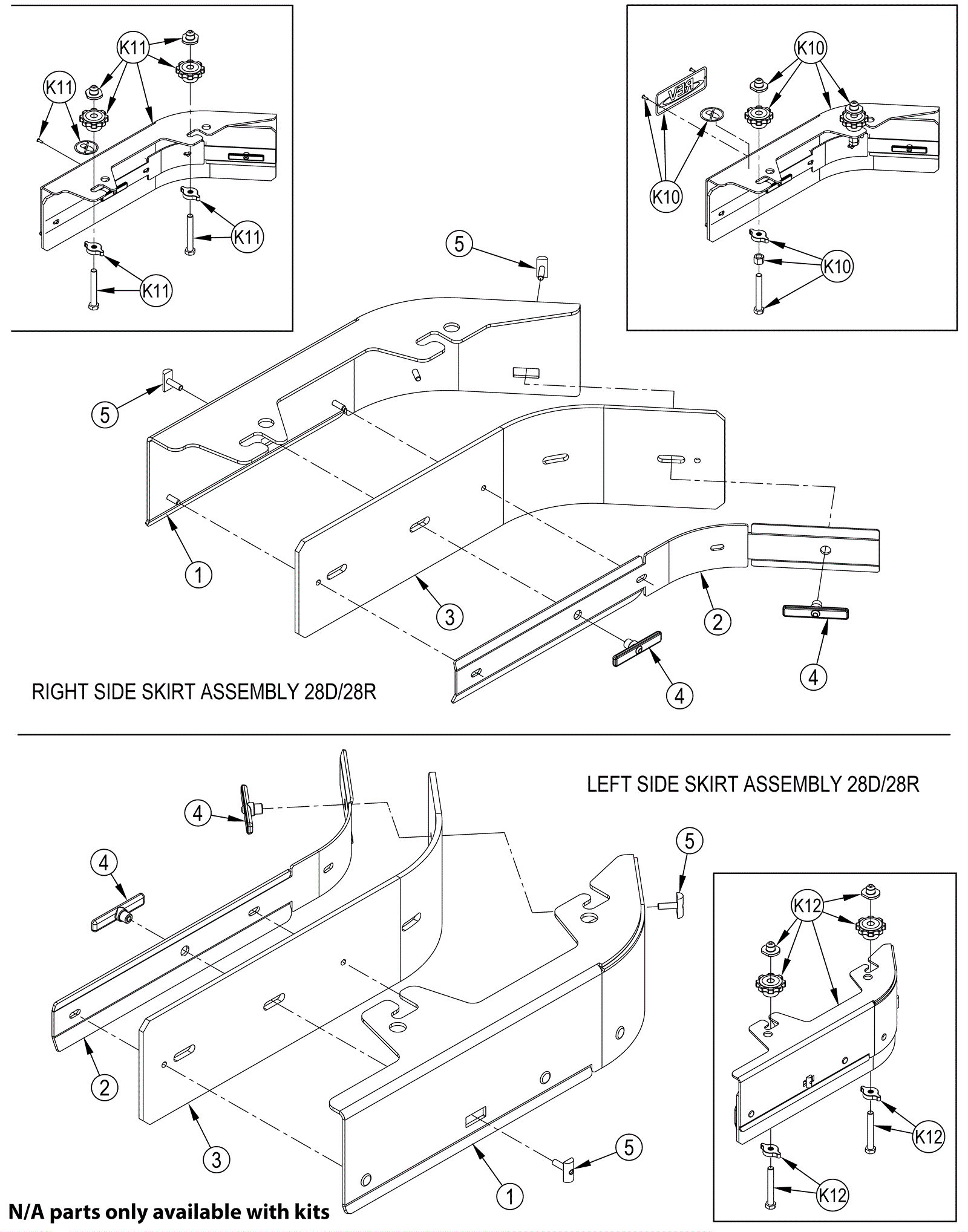

SC4000 28D HP Rev/28D Side Skirt Assembly

#PartDescriptionPriceReqNotesAvailability
1a N/A Not available Call for price 1 (28d right fixed side blade weldment) usually ships 3-26 days
1b 572-8156 28D left hand fixed side blade weldment $249.70 1 usually ships 16-41 days
2a N/A Not available Call for price 1 (34d right strap) usually ships 3-26 days
2b N/A Not available Call for price 1 (34d left strap) usually ships 3-26 days
3 572-8106 34D deck blade linatex $91.33 1 usually ships 16-41 days
4 N/A Not available Call for price 2 (thumb nut) usually ships 3-26 days
5 272-3519 Skirt retainer (screw) $31.83 2 usually ships 16-41 days
KIT1 572-8151 28D right skirt kit $983.72 1 (includes 1a, 2a, 3-5) usually ships 16-41 days
KIT2 572-8145 28D/28R left skirt kit $589.05 1 (includes 1b, 2b, 3-5) usually ships 16-41 days
KIT10 N/A Not available Call for price 1 (28r right skirt kit) usually ships 3-26 days
KIT11 572-8104 Disk right hand strap kit $148.63 1 (includes 2a, 4) usually ships 16-41 days
KIT12 572-8105 Disk left hand strap kit $148.63 1 (includes 2b, 4) usually ships 16-41 days
