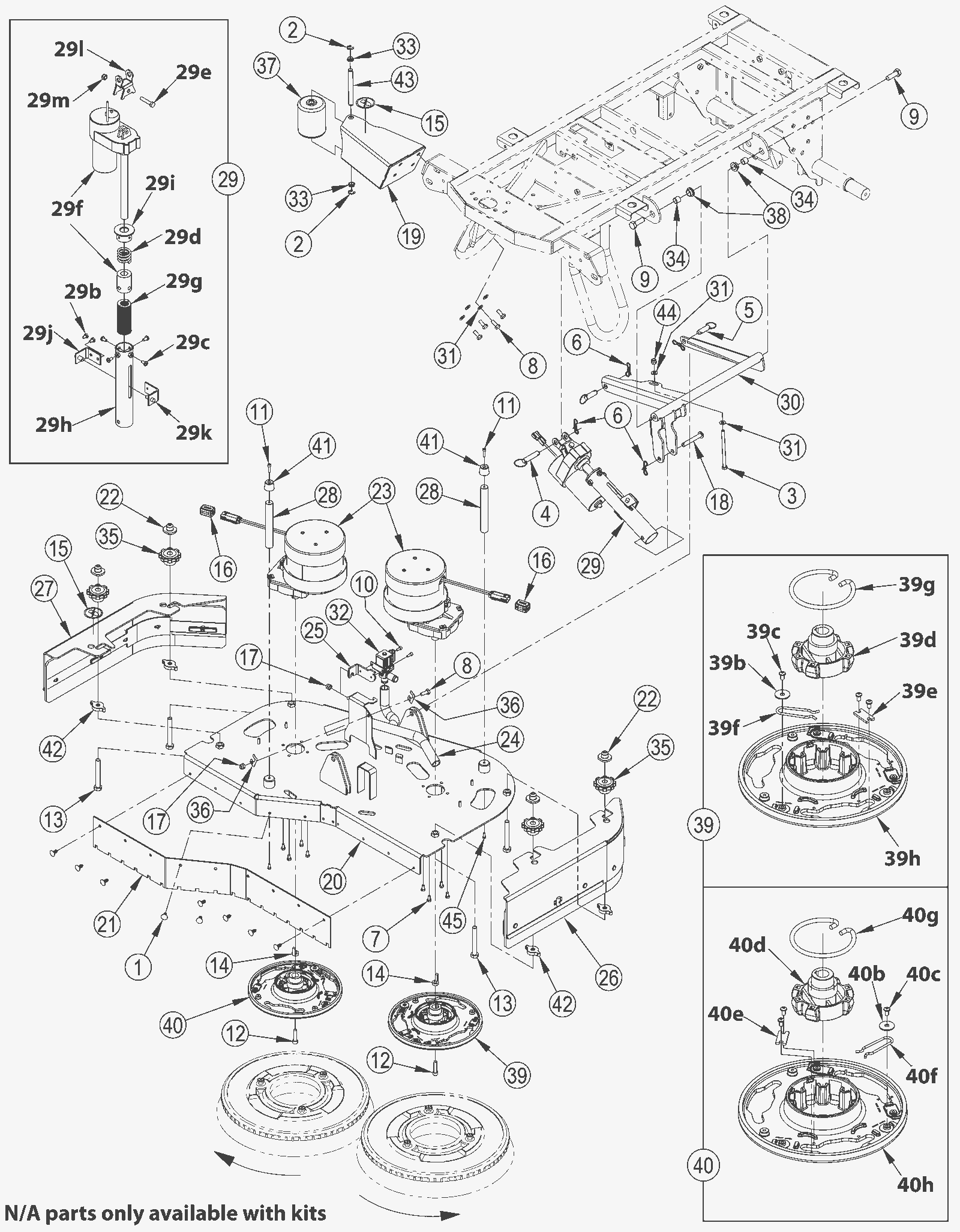

34D Disc Deck Scrub Assembly-1

#PartDescription ReqNotesAvailability
1 N/A Not available 9 (rivet)
2 N/A Not available 2 (retaining ring)
3 999-0782 Screw M8-1.25 x 120mm hex head 1
4 N/A Not available 1 (ring pin)
5 N/A Not available 2 (ring pin)
6 N/A Not available 4 (bow tie cotter pin)
7 999-9116 Screw M6-1 x 12mm hex head stainless steel 8
8 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 5
9 999-0504 Bolt M12-1.75 x 35mm hex hd stainless steel full thread 2
10 999-9096 Screw M5-.8 x 12mm socket head stainless steel 2
11 999-1664 Screw M5-.8 x 20mm socket head stainless steel 2
12 999-9217 Screw M8-1.25 x 35 socket head stainless steel 2
13 999-1987 Screw M12-1.75 x 90mm hex cap 4
14 N/A Not available 2 (key assembly weldment)
15 N/A Not available 2 (no step decal)
16 472-4939 FERRITE BEAD 2
17 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
18 N/A Not available 1 (clevis pin)
19 N/A Not available 1 (roller weldment)
20 N/A Not available 1 (34d scrub deck weldment)
21 N/A Not available 1 (34d front blade)
22 572-8098 Side skirt holder cap 4
23 N/A Not available 2 (36V motor)
24 572-8099 28/34 disc solution hose feed 1
25 572-8069 Valve plate 1
26 N/A Not available 1 (34d left side skirt assembly)
27 N/A Not available 1 (34d right side skirt assembly)
28 N/A Not available 2 (up stop rod)
29a N/A Not available 1 (disk deck actuator assembly) (includes 29b-29m)
29b 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted 2
29c 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 4
29d N/A Not available 1 (compression spring)
29e 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 1
29f 572-8079 Deck actuator 1
29g N/A Not available 1 (compression spring)
29h N/A Not available 1 (spring housing weldment)
29i 272-8539 Spring housing guide 1
29j 172-8954 Nut retainer 1
29k 172-8955 Nut retainer 1
29l 272-3550 Actuator yoke 1
29m 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
30 N/A Not available 1 (deck linkage weldment)
31 N/A Not available 6 (washer M8 x 16)
32 N/A Not available 1 (36V solenoid valve)
33 N/A Not available 2 (flange bearing)
34 N/A Not available 2 (bushing)
35 N/A Not available 4 (knob)
36 N/A Not available 2 (tie down mount clip)
37 N/A Not available 1 (roller wheel)
38 N/A Not available 2 (flange bearing)
39a N/A Not available 1 (brush plate assembly) (includes 39b-39h)
39b 172-0553 Washer 17/64 x 1/16 flat 1
39c 999-1833 Screw 10-14 x 3/8 pan head phillips stainless steel 3
39d 272-7257 6 tab gimbal and collar assembly 1
39e 172-0155 Stop plate 1
39f 272-5779 Spring retainer 1
39g 272-9884 Brush holder spring 1
39h 272-9885 Brush plate 1
40a N/A Not available 1 (brush plate assembly) (includes 40b-40h)
40b 172-0553 Washer 17/64 x 1/16 flat 1
40c 999-1833 Screw 10-14 x 3/8 pan head phillips stainless steel 3
40d 272-7257 6 tab gimbal and collar assembly 1
40e 172-0155 Stop plate 1
40f 272-5779 Spring retainer 1
40g 272-9884 Brush holder spring 1
40h 272-9885 Brush plate 1
41 N/A Not available 2 (up stop mount)
42 N/A Not available 4 (knob)
43 N/A Not available 1 (pin)
44 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
45 999-1220 Screw M5-.8 x 12mm hex head stainless steel 2
KIT2 572-8062 Up stop kit 1 (includes 11, 28, 41, 45)
KIT3 572-8061 Solenoid valve kit 1 (includes 10, 25, 32)
KIT4 572-8094 Disc scrub motor kit 1 (includes 7, 12, 14, 23, and N/S)
KIT5 572-8095 Disk deck actuator kit 1 (includes 4, 6, 18, 29a)
KIT6 572-8100 Left skirt kit 1 (includes 13, 22, 26, 35, 42)
KIT7 572-8066 Deck linkage kit 1 (includes 5-6, 9, 18, 30, 34, 38)
KIT8 572-8101 Disc deck weldment kit 1 (includes 1, 7-8, 12-14, 17, 20, 36, 45, and N/S)
KIT9 572-8102 Disc right skirt kit 1 (includes 13, 15, 22, 27, 35, 42)
KIT10 572-8072 Roller kit 1 (includes 2, 8, 19, 31, 33, 37, 43)
KIT11 572-8103 Front blade kit 1 (includes 1, 21)
KIT12 572-8096 Right brush plate kit 1 (includes 12, 14, 40a, and N/S)
KIT13 572-8097 Left brush plate kit 1 (includes 12, 14, 39a, and N/S)
KIT14 572-8104 Disk right hand strap kit 1
KIT15 572-8105 Disk left hand strap kit 1
KIT16 572-8065 Roller wheel kit 1 (includes 2, 33, 37, 43)
KIT17 472-5228 SPRING HOUSING KIT-ACTUATOR 1 (includes 29b-29d, 29g-29k)
