| # | Part | Description |
Req | Notes | Availability |
|---|

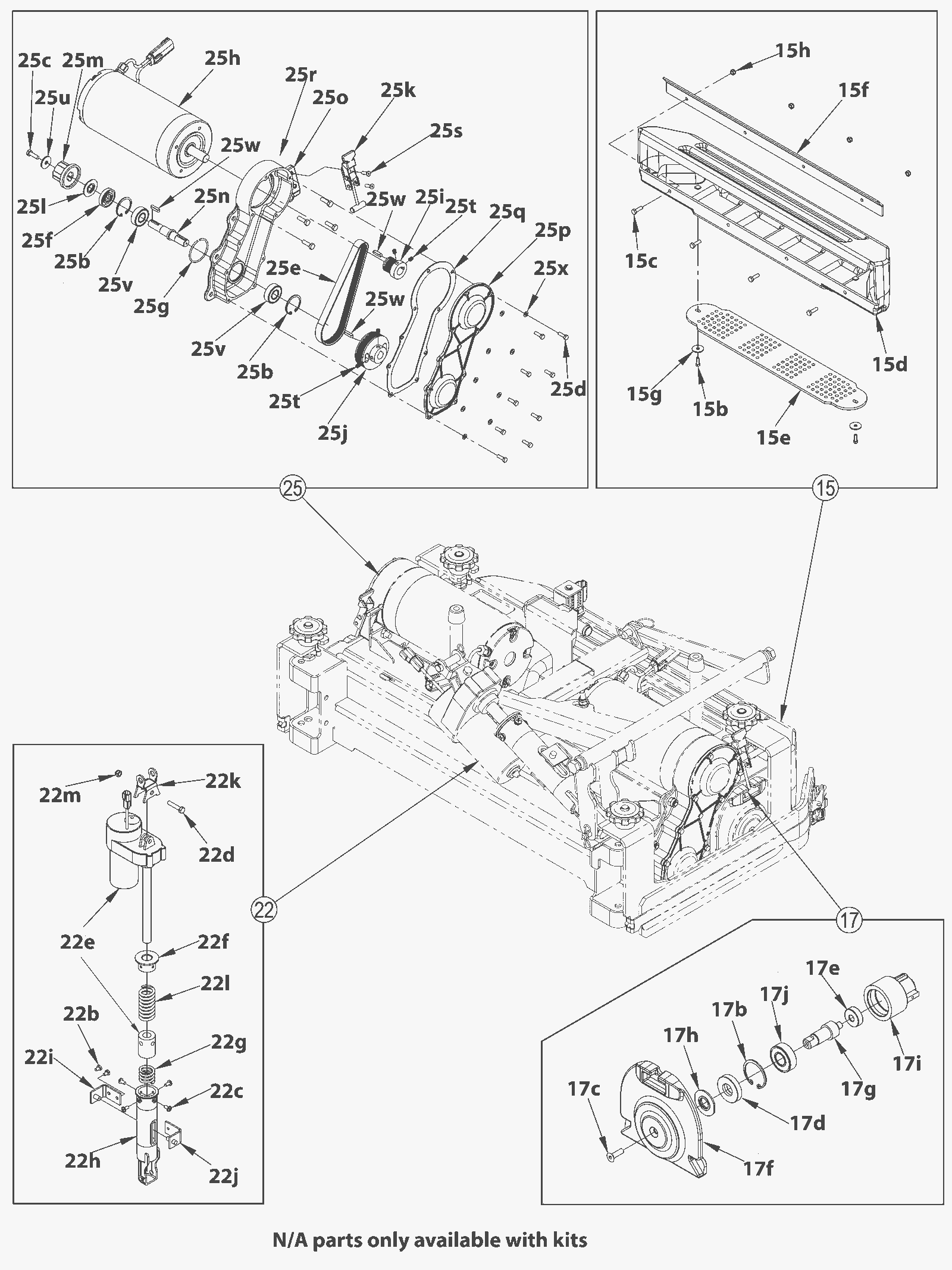

15a |
N/A
|
Not available |
1 |
(includes 15b-15h) (28 inch hopper assembly) |
|
15b |
999-0498
|
Bolt M5-.8 x 20mm hex head full thread zinc |
2 |
|
|
15c |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
4 |
|
|
15d |
N/A
|
Not available |
1 |
(28 inch hopper) |
|
15e |
N/A
|
Not available |
1 |
(28 inch hopper screen) |
|
15f |
N/A
|
Not available |
1 |
(28 inch hopper bracket) |
|
15g |
N/A
|
Not available |
2 |
(washer M6 x 24 x 2 stainless steel) |
|
15h |
999-9131
|
Nut M6 x 1 nylon lock stainless steel |
4 |
|
|
17a |
572-8058
|
Cylindrical idler assembly |
2 |
(includes 17b-17j) |
|
17b |
472-1816
|
RING RET. INT. |
1 |
|
|
17c |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
17d |
572-8073
|
Bearing seal |
1 |
|
|
17e |
572-8074
|
Ball bearing |
1 |
|
|
17f |
572-8075
|
Cylindrical casting idler end |
1 |
|
|
17g |
572-8076
|
Cylindrical spindle idler end |
1 |
|
|
17h |
572-8077
|
Bearing washer |
1 |
|
|
17i |
572-8078
|
Cylindrical deck idler lug |
1 |
|
|
17j |
272-0813
|
Ball bearing |
1 |
|
|
22a |
572-8060
|
Cylindrical deck actuator kit |
1 |
(includes 22b-22m) |
|
22b |
999-0360
|
Screw 1/4-20 x 3/8 hex head thread rolling unslotted |
2 |
|
|
22c |
999-1129
|
Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc |
4 |
|
|
22d |
999-0787
|
Bolt M8-1.25 x 40mm hex head full thread stainless steel |
1 |
|
|
22e |
572-8079
|
Deck actuator |
1 |
|
|
22f |
272-8539
|
Spring housing guide |
1 |
|
|
22g |
172-8941
|
Compression spring |
1 |
|
|
22h |
172-8952
|
Spring housing |
1 |
|
|
22i |
172-8954
|
Nut retainer |
1 |
|
|
22j |
172-8955
|
Nut retainer |
1 |
|
|
22k |
272-3550
|
Actuator yoke |
1 |
|
|
22l |
272-3552
|
Compression spring |
1 |
|
|
22m |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
25a |
572-8059
|
Cylindrical drive assembly |
2 |
(includes 25b-25x) |
|
25b |
472-1816
|
RING RET. INT. |
2 |
|
|
25c |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
5 |
|
|
25d |
999-1618
|
Bolt M5-.8 x 16mm hex head stainless steel |
9 |
|
|
25e |
N/A
|
Not available |
1 |
(auto tension belt) |
|
25f |
572-8073
|
Bearing seal |
1 |
|
|
25g |
572-8080
|
Retaining ring |
1 |
|
|
25h |
N/A
|
Not available |
1 |
(36v motor) |
|
25i |
N/A
|
Not available |
1 |
(poly v sheave) |
|
25j |
N/A
|
Not available |
1 |
(poly v sheave) |
|
25k |
N/A
|
Not available |
1 |
(draw latch) |
|
25l |
572-8077
|
Bearing washer |
1 |
|
|
25m |
572-8081
|
Drive end lug |
1 |
|
|
25n |
572-8082
|
Cylindrical spindle drive end |
1 |
|
|
25o |
572-8083
|
Cylindrical drive housing |
1 |
|
|
25p |
N/A
|
Not available |
1 |
(belt housing cover) |
|
25q |
572-8084
|
Cylindrical drive housing gasket |
1 |
|
|
25r |
572-8085
|
Latch plate nut |
1 |
|
|
25s |
999-6763
|
Screw M5-.8 x 16mm socket cap zinc |
2 |
|
|
25t |
999-1413
|
Screw M6-1 x 8mm socket cup point set |
4 |
|
|
25u |
572-3657
|
WASHER 6.6X24X2 UNI6593 SS 10 (pkg of 10) |
1 |
|
|
25v |
272-0813
|
Ball bearing |
2 |
|
|
25w |
N/A
|
Not available |
3 |
(key 5 x 5 x 20) |
|
25x |
N/A
|
Not available |
9 |
(washer M6 x 10 plain stainless steel) |
|
KIT12 |
N/A
|
Not available |
1 |
(includes 15b, 15e, 15g) (28 inch hopper screen kit) |
|
KIT13 |
572-8086
|
Cylindrical deck motor kit |
1 |
(includes 25c, 25h, 25w) |
|
KIT14 |
572-8087
|
Cylindrical latch kit |
1 |
(includes 25k, 25r-25s) |
|
KIT15 |
572-8088
|
Motor sheave kit |
1 |
(includes 25i, 25t, 25w) |
|
KIT16 |
572-8089
|
Belt auto tension kit |
1 |
(includes 25d-25e, 25p-25q, 25x) |
|
KIT17 |
572-8090
|
Drive sheave kit |
1 |
(includes 25j, 25t) |
|
KIT18 |
572-8091
|
Cylindrical drive housing kit |
1 |
(includes 25b, 25f-25g, 25l, 25n-25o, 25v) |
|
