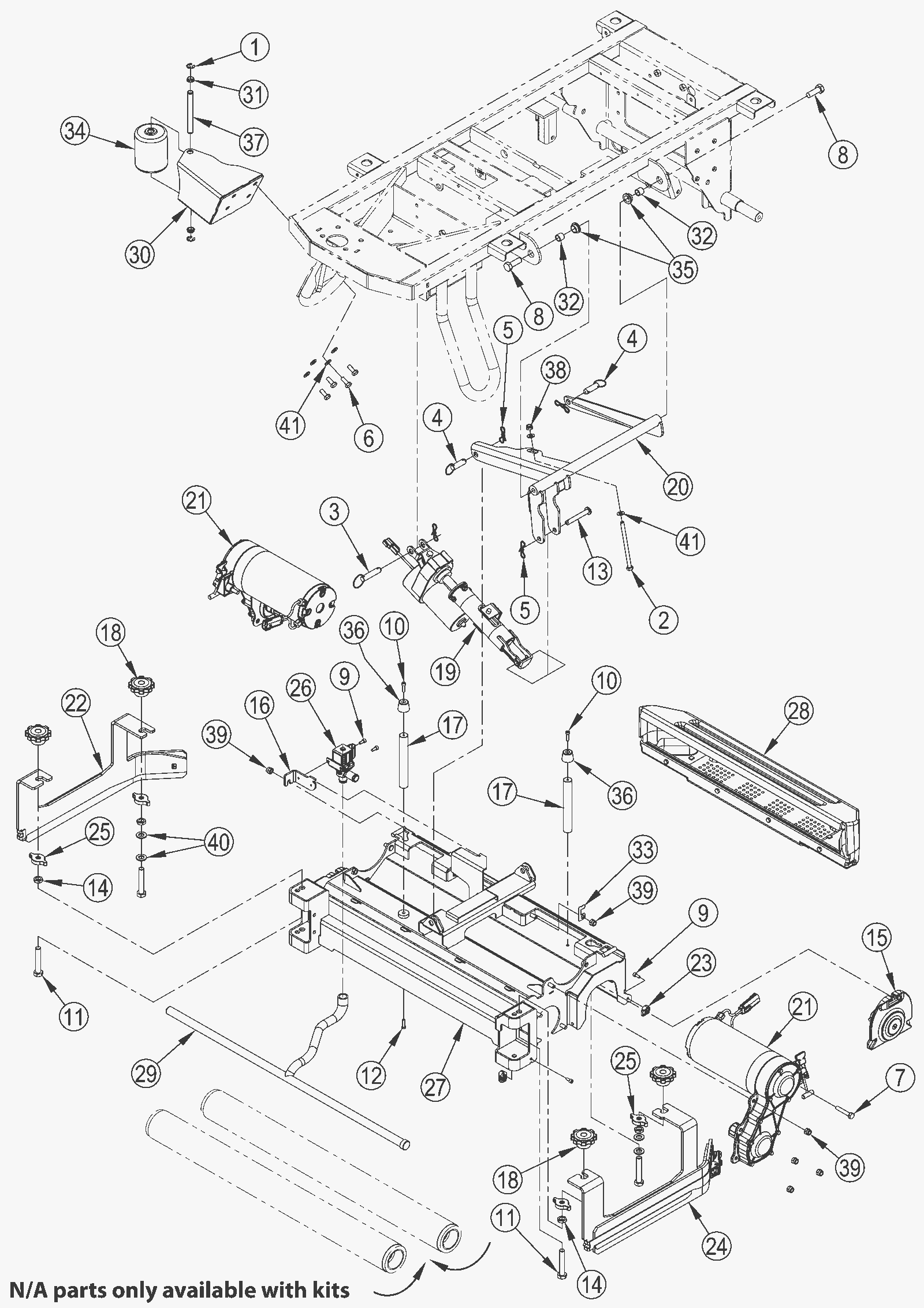

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
2 |
(retaining ring) |
|
2 |
999-0782
|
Screw M8-1.25 x 120mm hex head |
1 |
|
|
3 |
N/A
|
Not available |
1 |
(ring pin) |
|
4 |
N/A
|
Not available |
2 |
(ring pin) |
|
5 |
N/A
|
Not available |
4 |
(bow tie pin) |
|
6 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
4 |
|
|
7 |
999-1426
|
Screw M8-1.25 x 45mm hex head stainless steel |
2 |
|
|
8 |
999-0504
|
Bolt M12-1.75 x 35mm hex hd stainless steel full thread |
2 |
|
|
9 |
999-6690
|
Screw M5-.8 x 12mm hex head stainless steel |
6 |
|
|
10 |
N/A
|
Not available |
2 |
(screw M5 x 20 torx with thread lock) |
|
11 |
999-1349
|
Screw M12-1.75 x 70mm full thread hex head stainless steel |
4 |
|
|
12 |
999-1322
|
Screw M5-.8 x 20mm hex head stainless steel |
2 |
|
|
13 |
N/A
|
Not available |
1 |
(clevis pin) |
|
14 |
999-1377
|
Nut M12-1.75 hex jam |
4 |
|
|
15 |
572-8058
|
Cylindrical idler assembly |
2 |
|
|
16 |
N/A
|
Not available |
1 |
(valve plate) |
|
17 |
N/A
|
Not available |
2 |
(up stop rod) |
|
18 |
572-9330
|
Knob |
4 |
|
|
19 |
N/A
|
Not available |
1 |
(cylindrical deck actuator assembly) |
|
20 |
N/A
|
Not available |
1 |
(deck linkage weldment) |
|
21 |
572-8059
|
Cylindrical drive assembly |
2 |
|
|
22 |
N/A
|
Not available |
1 |
(right side blade assembly) |
|
23 |
N/A
|
Not available |
4 |
(wear guide) |
|
24 |
N/A
|
Not available |
1 |
(left side blade assembly) |
|
25 |
172-9282
|
Knob |
4 |
|
|
26 |
N/A
|
Not available |
1 |
(36V solenoid valve) |
|
27 |
N/A
|
Not available |
1 |
(28 inch cylindrical deck weldment) |
|
28 |
N/A
|
Not available |
1 |
(28 inch hopper assembly) |
|
29 |
N/A
|
Not available |
1 |
(28 inch applicator tube assembly) |
|
30 |
N/A
|
Not available |
1 |
(28c roller weldment) |
|
31 |
N/A
|
Not available |
2 |
(flange bearing) |
|
32 |
N/A
|
Not available |
2 |
(bushing) |
|
33 |
472-8247
|
CLIP-MOUNT-TIE DOWN |
2 |
|
|
34 |
N/A
|
Not available |
1 |
(roller wheel) |
|
35 |
N/A
|
Not available |
2 |
(flange bearing) |
|
36 |
N/A
|
Not available |
2 |
(up stop mount) |
|
37 |
N/A
|
Not available |
1 |
(pin) |
|
38 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
39 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
11 |
|
|
40 |
272-9498
|
Washer flat |
4 |
|
|
41 |
N/A
|
Not available |
5 |
(washer M8 x 16 plain stainless steel) |
|
KIT1 |
572-8060
|
Cylindrical deck actuator kit |
1 |
(includes 3, 5, 13, 19) |
|
KIT2 |
572-8061
|
Solenoid valve kit |
1 |
(includes 9, 16, 26) |
|
KIT3 |
572-8062
|
Up stop kit |
1 |
(includes 10, 17, 36) |
|
KIT4 |
N/A
|
Not available |
1 |
(includes 7, 11, 14, 18, 27, 39-40) (28 inch cylindrical deck weldment kit) |
|
KIT5 |
572-8063
|
Left blade kit |
1 |
(includes 11, 14, 18, 22, 24-25) |
|
KIT6 |
572-8064
|
Right blade kit |
1 |
(includes 11, 14, 18, 22, 24-25, 40) |
|
KIT7 |
572-8065
|
Roller wheel kit |
1 |
(includes 1, 31, 34, 37) |
|
KIT8 |
N/A
|
Not available |
1 |
(includes 1, 6, 30-31, 34, 37, 41) (roller kit) |
|
KIT9 |
572-8066
|
Deck linkage kit |
1 |
(includes 4-5, 13, 20, 32, 35) |
|
