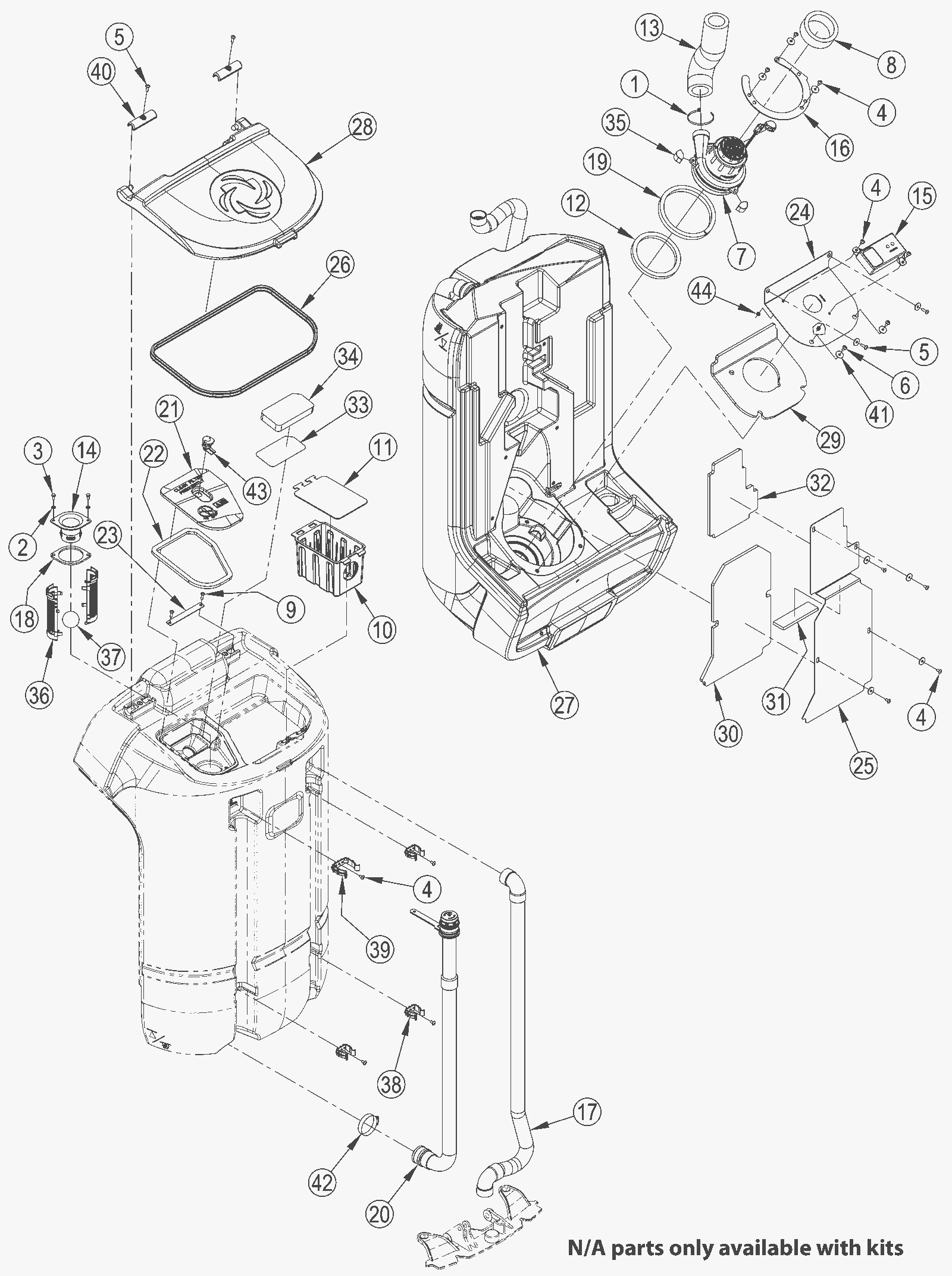

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(cable tie) |
|
2 |
999-1261
|
Washer M6 flat stainless steel |
2 |
|
|
3 |
999-9116
|
Screw M6-1 x 12mm hex head stainless steel |
2 |
|
|
4 |
N/A
|
Not available |
13 |
(screw M6 x 12 torx head with thread lock) |
|
5 |
N/A
|
Not available |
4 |
(screw M6 x 20 torx head with thread lock) |
|
6 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
|
7a |
N/A
|
Not available |
1 |
(standard models) (36V vacuum motor) (KIT2 should be ordered if you have the Standard Vacuum Motor on your Recovery System) |
|
7b |
N/A
|
Not available |
1 |
(HP models) (36V vacuum motor) (KIT7 should be ordered if you have the High Power Vacuum Motor for your recovery system) |
|
8 |
N/A
|
Not available |
1 |
(inlet seal) |
|
9 |
572-9154
|
Screw M6 x 20 |
2 |
|
|
10 |
N/A
|
Not available |
1 |
(debris tray) |
|
11 |
N/A
|
Not available |
1 |
(debris tray cover) |
|
12 |
N/A
|
Not available |
1 |
(vac inlet gasket) |
|
13 |
572-8053
|
Exhaust foam tube |
1 |
|
|
14 |
N/A
|
Not available |
1 |
(float cage mount) |
|
15 |
N/A
|
Not available |
1 |
(vacuum inlet resonator) |
|
16 |
N/A
|
Not available |
1 |
(vacuum motor retainer) |
|
17 |
572-8054
|
Squeegee hose assembly |
1 |
|
|
18 |
N/A
|
Not available |
1 |
(float cage gasket) |
|
19 |
N/A
|
Not available |
1 |
(vac housing gasket) |
|
20 |
572-8148
|
Drain hose assembly |
1 |
|
|
21 |
N/A
|
Not available |
1 |
(filter cover) |
|
22 |
N/A
|
Not available |
1 |
(filter cover gasket) |
|
23 |
N/A
|
Not available |
1 |
(cover latch plate) |
|
24 |
N/A
|
Not available |
1 |
(upper vacuum exhaust panel) |
|
25 |
N/A
|
Not available |
1 |
(lower vacuum exhaust panel) |
|
26 |
N/A
|
Not available |
1 |
(recovery cover seal) |
|
27 |
N/A
|
Not available |
1 |
(recovery tank) |
|
28 |
N/A
|
Not available |
1 |
(recovery tank cover) |
|
29 |
N/A
|
Not available |
1 |
(vac cover sound foam) |
|
30 |
N/A
|
Not available |
1 |
(upper exhaust vac sound foam) |
|
31 |
N/A
|
Not available |
1 |
(mid exhaust vac sound foam) |
|
32 |
N/A
|
Not available |
1 |
(lower exhaust vac sound foam) |
|
33 |
172-3347
|
Filter screen |
1 |
|
|
34 |
172-3348
|
Filter |
1 |
|
|
35 |
N/A
|
Not available |
3 |
(vibration mount) |
|
36 |
N/A
|
Not available |
2 |
(float half cage) |
|
37 |
N/A
|
Not available |
1 |
(floating ball) |
|
38 |
272-1159
|
Plastic clamp |
3 |
|
|
39 |
272-1317
|
Plastic clamp |
1 |
|
|
40 |
N/A
|
Not available |
2 |
(hinge clamp) |
|
41 |
N/A
|
Not available |
11 |
(washer M6 x 24 x 2 plain stainless steel) |
|
42 |
270-8257
|
Clamp |
1 |
|
|
43 |
N/A
|
Not available |
1 |
(latch with fold away) |
|
44 |
999-9131
|
Nut M6 x 1 nylon lock stainless steel |
2 |
|
|
KIT1 |
572-8055
|
Float cage kit |
1 |
(includes 4, 14, 18, 36-37) |
|
KIT2 |
572-8056
|
Standard vacuum motor kit |
1 |
(includes 7a, 8, 12, 19, 35) |
|
KIT3 |
N/A
|
Not available |
1 |
(includes 5, 26, 28, 40) (recovery tank lid kit) |
|
KIT4 |
N/A
|
Not available |
1 |
(includes 21-22, 43) (filter cover kit) |
|
KIT5 |
N/A
|
Not available |
1 |
(includes 4, 25, 30-32, 41) (lower vacuum exhaust panel kit) |
|
KIT6 |
N/A
|
Not available |
1 |
(includes 5-6, 24, 29, 41) (upper vacuum exhaust panel kit) |
|
KIT7 |
572-8057
|
High power vacuum motor kit |
1 |
(includes 7b) |
|
