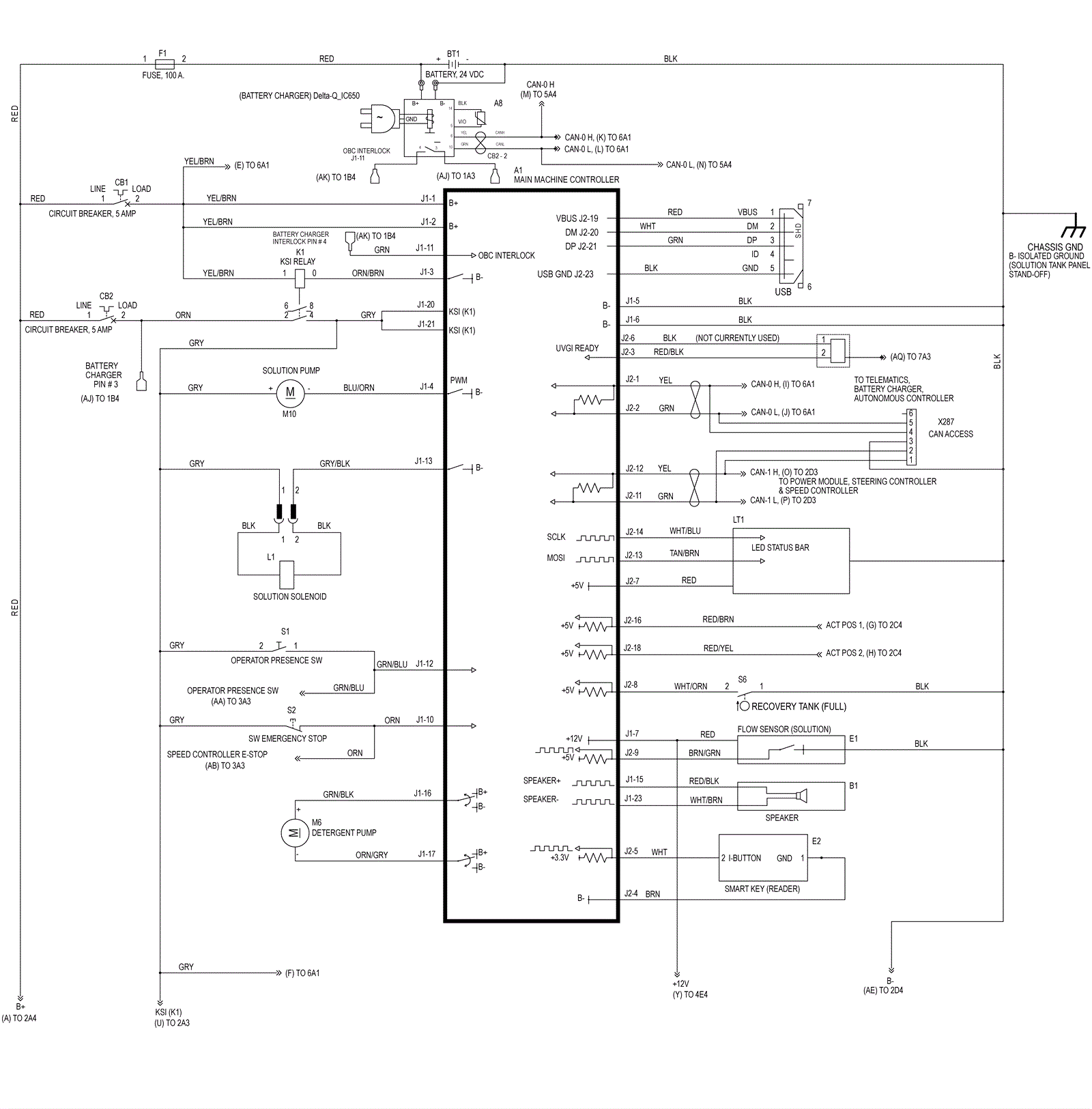

Liberty SC50 Ladder Diagram Assembly- 1

#PartDescriptionPriceReqNotesAvailability
A1 572-6053 User interface kit $1,395.46 1 usually ships 16-41 days
A7 572-7082 Liberty sc50 trackclean kit $1,103.92 1 usually ships 16-41 days
A8 270-8393 24V onboard battery charger $693.32 1 ships same day
B1 572-6054 Speaker kit $49.63 1 usually ships 16-41 days
BT1 162-0043 6V 224Ah AGM battery (Group GC2) $456.50 1 usually ships 4-19 days
CB1 991-1628 5amp circuit breaker $13.76 2 usually ships 16-41 days
CB2 991-1628 5amp circuit breaker $13.76 2 usually ships 16-41 days
LT1 572-6049 Light bar kit $229.88 1 usually ships 16-41 days
E1 572-7020 24v max flow meter $169.43 1 usually ships 16-41 days
E2 472-5047 IBUTTON-PROBE $78.58 1 usually ships 16-41 days
F1 572-6088 100 amp fuse $15.48 1 usually ships 16-41 days
K1 270-0781 Relay $105.77 1 usually ships 1-5 days
L1 572-7019 Solenoid valve assembly $152.05 1 usually ships 16-41 days
M6 272-7679 12V detergent pump $291.39 1 usually ships 1-5 days
M10 N/A Not available Call for price 1 (solution pump assembly) usually ships 3-26 days
S1 572-6040 Switch harness $64.85 1 ships same day
S2 572-6040 Switch harness $64.85 1 ships same day
S6 572-7016 Float switch kit $116.47 1 usually ships 16-41 days
