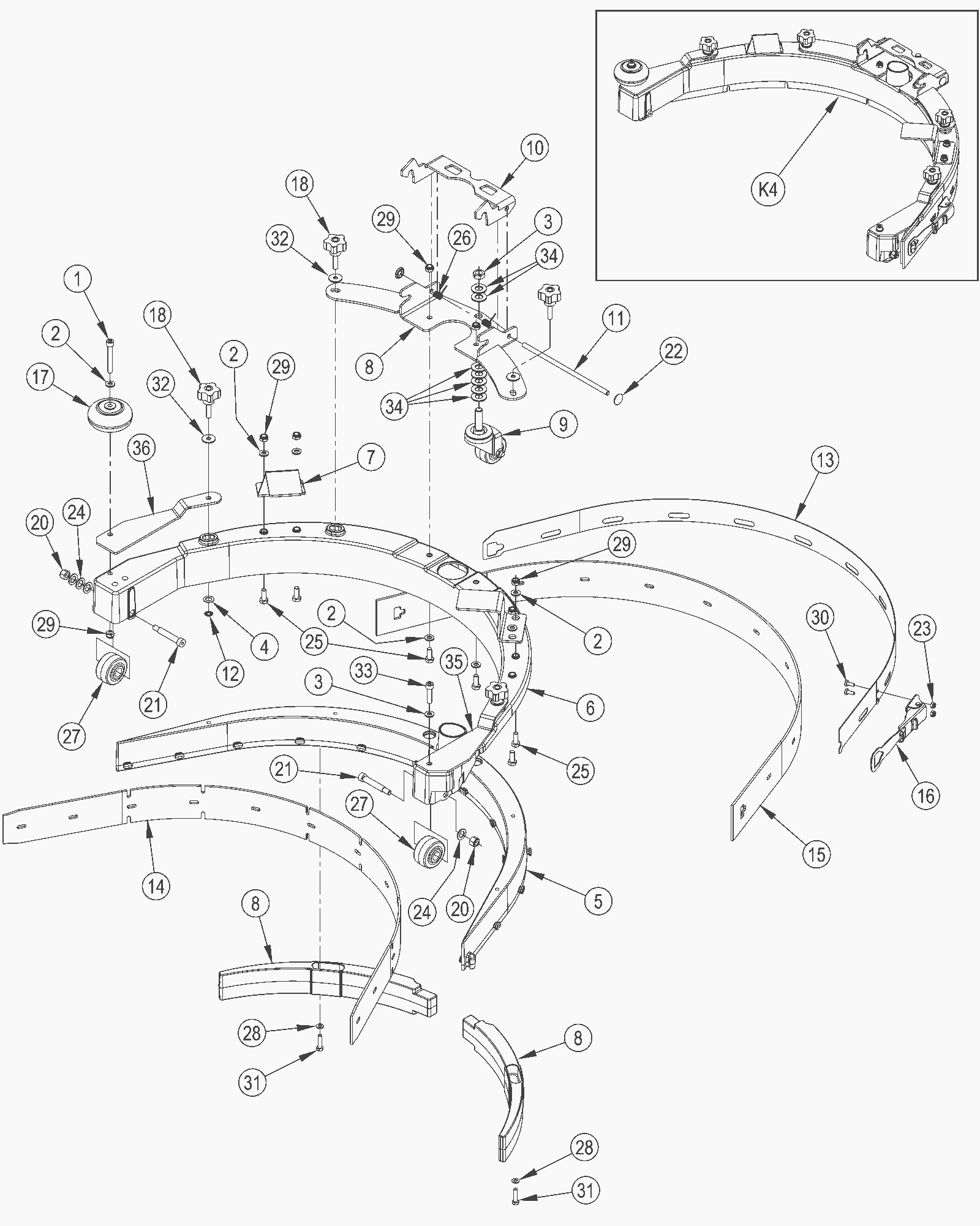

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(only available in KIT4 and KIT6)(screw M6 x 45) |
|
2 |
N/A
|
Not available |
8 |
(only available in KIT3, KIT4 and KIT6)(washer) |
|
3 |
999-0628
|
Nut 3/8-16 hex jam stainless steel |
1 |
(included in KIT4 and KIT6) |
|
4 |
N/A
|
Not available |
4 |
(only available in KIT4 and KIT5)(washer) |
|
5 |
N/A
|
Not available |
1 |
(only available in KIT4)(squeegee casting) |
|
6 |
472-3861
|
SQUEEGEE COVER |
1 |
(included in KIT4) |
|
7 |
N/A
|
Not available |
2 |
(only available in KIT4)(squeegee lift bracket) |
|
8 |
N/A
|
Not available |
2 |
(only available in KIT4 and KIT8)(squeegee plate) |
|
9 |
472-3868
|
CASTER WHEEL |
1 |
(only available in KIT4 and KIT6) |
|
10 |
N/A
|
Not available |
1 |
(only available in KIT4 and KIT8)(squeegee mount bracket) |
|
11 |
N/A
|
Not available |
1 |
(only available in KIT4 and KIT8)(pivot pin) |
|
12 |
N/A
|
Not available |
4 |
(only available in KIT4 and KIT5)(retaining ring) |
|
13 |
N/A
|
Not available |
1 |
(only available in KIT4 and KIT7)(squeegee rear strap) |
|
14 |
N/A
|
Not available |
1 |
(squeegee blade linatex front) |
|
14a |
N/A
|
Not available |
1 |
(squeegee blade polyurethane front )(only available in KIT1)(all squeegee blades kits include both front and rear squeegee blades) |
|
15 |
N/A
|
Not available |
1 |
(only available in KIT2 and KIT4)(squeegee linatex blade rear)(all squeegee blades kits include both front and rear squeegee blades) |
|
15a |
N/A
|
Not available |
1 |
(only available in KIT1)(squeegee polyurethane blade rear)(all squeegee blades kits include both front and rear squeegee blades) |
|
16 |
N/A
|
Not available |
1 |
(only available in KIT4 and KIT7)(t-latch tab assembly) |
|
17 |
N/A
|
Not available |
1 |
(only available in KIT4 and KIT6)(roller wheel) |
|
18 |
N/A
|
Not available |
4 |
(only available in KIT4 and KIT5)(knob) |
|
19 |
N/A
|
Not available |
1 |
(only available in KIT4 and KIT8)(squeegee bracket weldment) |
|
20 |
N/A
|
Not available |
2 |
(only available in KIT4 and KIT6)(nut 1/4-20 nylon hex loc stainless steel) |
|
21 |
N/A
|
Not available |
2 |
(only available in KIT4 and KIT6)(bolt) |
|
22 |
N/A
|
Not available |
2 |
(only available in KIT4 and KIT8)(6mm pin cover) |
|
23 |
N/A
|
Not available |
2 |
(only available in KIT4 and KIT7)(nut M4 nylon hex loc thin stainless steel) |
|
24 |
N/A
|
Not available |
4 |
(only available in KIT4 and KIT6)(spacer) |
|
25 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
6 |
(included in KIT3 and KIT4) |
|
26 |
N/A
|
Not available |
2 |
(only available in KIT4 and KIT8)(spring) |
|
27 |
N/A
|
Not available |
2 |
(only available in KIT4 and KIT6)(front wheel) |
|
28 |
N/A
|
Not available |
2 |
(only available in KIT3 and KIT4)(washer) |
|
29 |
N/A
|
Not available |
7 |
(only available in KIT3, KIT4 and KIT6)(nut M6 nylon hex loc stainless steel) |
|
30 |
N/A
|
Not available |
2 |
(only available in KIT4 and KIT7)(screw M4 x 10 pan head phillips stainless steel) |
|
31 |
N/A
|
Not available |
2 |
(only available in KIT3 and KIT4)(screw M5 x 20 hex head stainless steel) |
|
32 |
N/A
|
Not available |
4 |
(only available in KIT4 and KIT5)(washer) |
|
33 |
N/A
|
Not available |
1 |
(only available in KIT4)(screw) |
|
34 |
999-9128
|
Washer 3/8 SAE flat stainless steel |
7 |
(inlcuded in KIT4 and KIT6) |
|
35 |
572-7077
|
Squeegee bracket-left |
1 |
(included in KIT4) |
|
36 |
572-7078
|
Squeegee bracket-right |
1 |
(included in KIT4) |
|
KIT1 |
272-7356
|
Squeegee blade kit polyurethane |
1 |
(includes 14a and 15a) |
|
KIT2 |
272-7357
|
Squeegee blade kit linatex |
1 |
(includes 14 and 15) |
|
KIT3 |
272-6771
|
Squeegee hardware kit |
1 |
(includes 25,28,29 and 31) |
|
KIT4 |
572-7079
|
Squeegee assembly kit |
1 |
(includes 1-14, 15,16-36) |
|
KIT5 |
572-7080
|
Squeegee knob kit |
1 |
(includes 4,12,18 and 32) |
|
KIT6 |
572-7081
|
Squeegee wheels kit |
1 |
(includes 1-3,9,17,20,21,24,27,29 and 34) |
|
KIT7 |
272-6774
|
Squeegee strap kit |
1 |
(includes 13,16,23 and 30) |
|
KIT8 |
272-6775
|
Squeegee mounting bracket kit |
1 |
(includes 8,10,11,19,22 and 26) |
|
