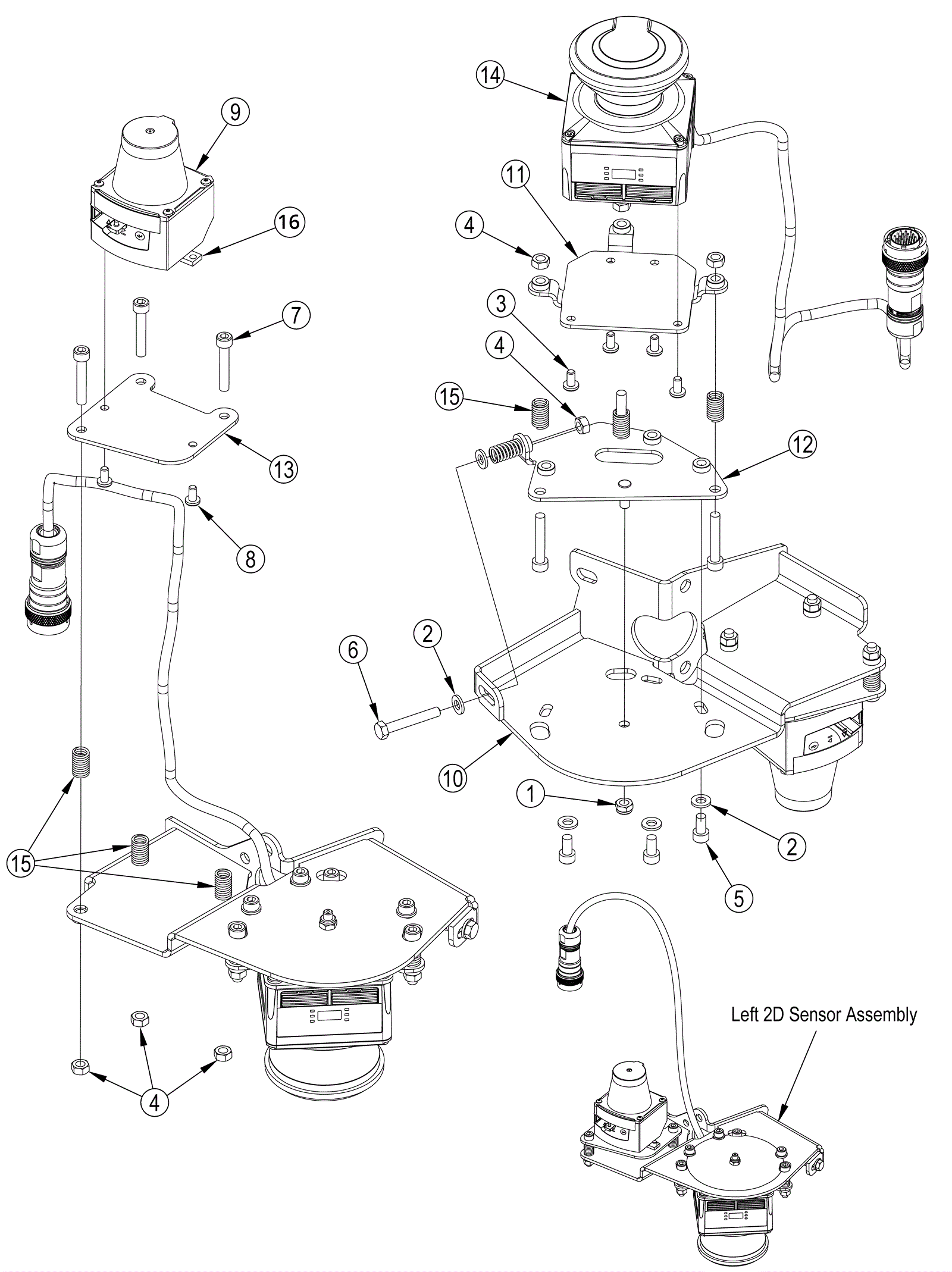

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(only available in KIT7)(nut M6 nylon hex loc thin) |
|
2 |
999-6714
|
Washer M6 x 12mm flat stainless steel |
5 |
|
|
3 |
N/A
|
Not available |
4 |
(only available in KIT13)(screw M5-0.8 x 10mm pan head phillips) |
|
4 |
999-1308
|
Nut M6-1 hex stainless steel |
7 |
|
|
5 |
N/A
|
Not available |
3 |
(only available in KIT7)(screw M6 x 12 socket head) |
|
6 |
999-1147
|
Bolt M6-1 x 40mm hex head stainless steel |
1 |
(included in KIT7) |
|
7 |
999-1953
|
Screw M6-1 x 35mm socket stainless steel |
6 |
(included in KIT7)
(included in KIT7) |
|
8 |
N/A
|
Not available |
2 |
(only available in KIT12)(screw 10-24 x .38 pan head phillips) |
|
9 |
N/A
|
Not available |
1 |
(only available in KIT12)(2d sensor) |
|
10 |
N/A
|
Not available |
1 |
(only available in KIT7)(2d sensor bracket weldment) |
|
11 |
N/A
|
Not available |
1 |
(only available in KIT7)(laser mount bracket) |
|
12 |
N/A
|
Not available |
1 |
(only available in KIT7)(laser adjust bracket) |
|
13 |
N/A
|
Not available |
1 |
(only available in KIT7)(2d laser mounting plate) |
|
14 |
N/A
|
Not available |
1 |
(only available in KIT13)(2d sensor left configured-a50)(also refered as safety sensor) |
|
15 |
N/A
|
Not available |
7 |
(only available in KIT7)(spring) |
|
16 |
N/A
|
Not available |
1 |
(only available in KIT15)(2d mounting feet sensor) |
|
KIT7 |
572-7071
|
Safety sensor mtg kit-left |
1 |
(includes 1-2, 4-7, 10-13, and 15) |
|
KIT12 |
572-7072
|
Mapping sensor kit |
1 |
(includes 8 and 9) |
|
KIT13 |
572-7073
|
Safety sensor kit-left |
1 |
(includes 3 and 14) |
|
KIT15 |
572-7074
|
2d sensor mounting feet |
1 |
(includes 16) |
|
