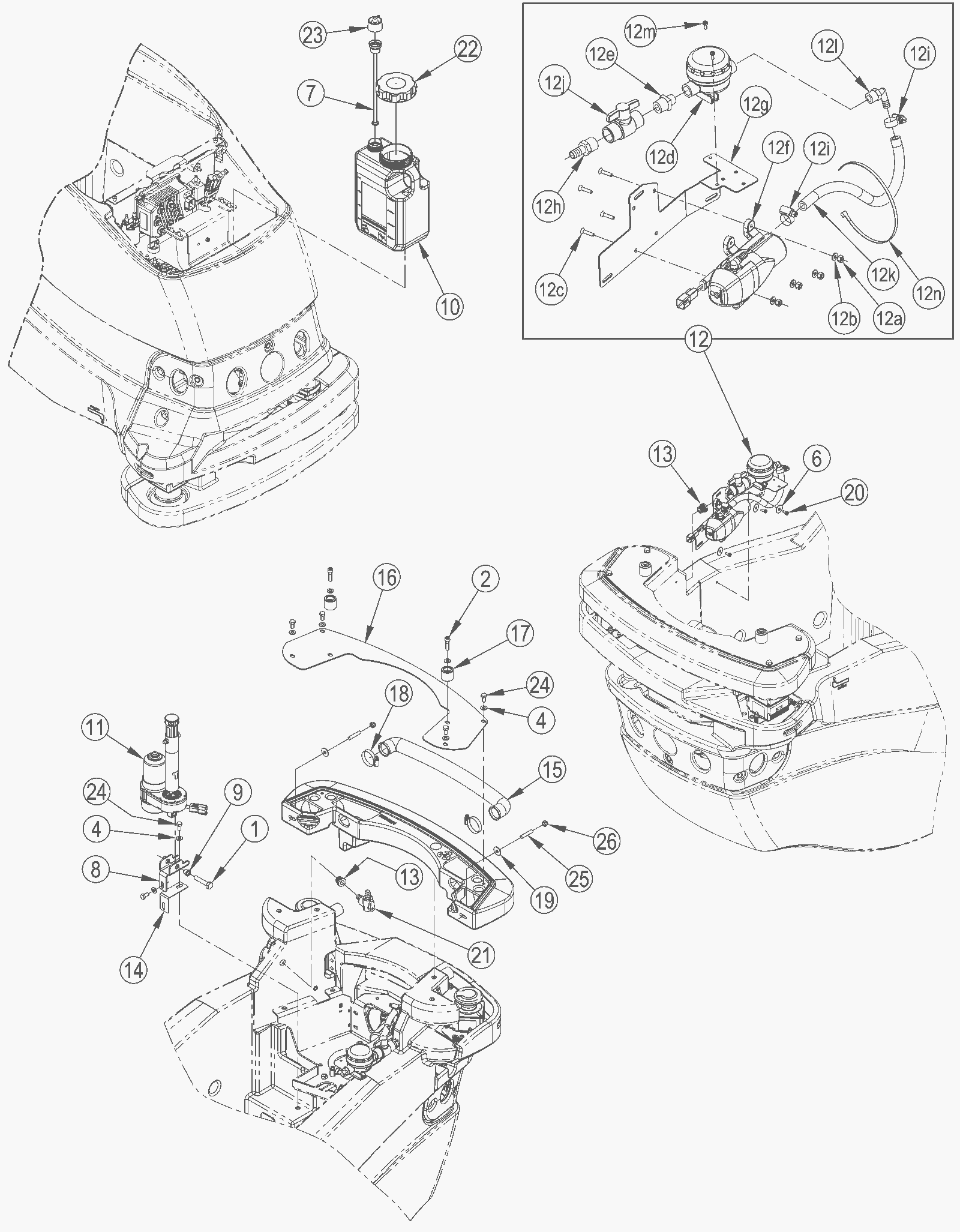

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(only available in KIT3 and KIT6) (screw M10 x 50 hex head) |
|
2 |
N/A
|
Not available |
2 |
(only available in KIT4 and KIT6)(screw M8 x 30 cap hex head sock stainless steel) |
|
4 |
N/A
|
Not available |
8 |
(only available in KIT4 and KIT6)(washer M8) |
|
6 |
N/A
|
Not available |
3 |
(only available in KIT6)(washer stainless steel) |
|
7 |
272-6752
|
Dry brake insert |
1 |
|
|
8 |
272-6758
|
Actuator bracket |
1 |
|
|
9 |
N/A
|
Not available |
1 |
(only available in KIT3 and KIT6)(spacer) |
|
10 |
272-6762
|
Chemical bottle assembly |
1 |
|
|
11 |
N/A
|
Not available |
1 |
(only available in KIT3)(actuator assembly) |
|
12 |
N/A
|
Not available |
1 |
(solution pump assembly) |
|
12a |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
4 |
|
|
12b |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
12c |
172-4936
|
Screw 10-24 x 7/8 flat head phillips stainless steel |
4 |
|
|
12d |
N/A
|
Not available |
1 |
(only available in KIT5)(solution filter) |
|
12e |
N/A
|
Not available |
1 |
(only available in KIT5)(pipe reducer) |
|
12f |
572-7057
|
24VDC pump |
1 |
|
|
12g |
572-7058
|
Pump support bracket |
1 |
|
|
12h |
N/A
|
Not available |
1 |
(only available in KIT5)(adapter barb 1/2 x 1/2 npt) |
|
12i |
N/A
|
Not available |
2 |
(only available in KIT10 and KIT11)(hose clamp) |
|
12j |
N/A
|
Not available |
1 |
(only available in KIT5)(ball valve) |
|
12k |
N/A
|
Not available |
1 |
(only available in KIT10 and KIT11)(vinyl tube) |
|
12l |
N/A
|
Not available |
1 |
(only available in KIT5, KIT10 and KIT11)(barb 90 elbow) |
|
12m |
N/A
|
Not available |
2 |
(only available in KIT6)(screw M4 x 10 pan head phillips stainless steel) |
|
12n |
N/A
|
Not available |
1 |
(only available in KIT10 and KIT11)(cable tie) |
|
13 |
N/A
|
Not available |
2 |
(only available in KIT1,KIT5 and KIT6)(grommet seal) |
|
14 |
572-7059
|
Actuator bracket gasket |
1 |
|
|
15 |
572-7060
|
Crossover hose |
1 |
|
|
16 |
572-7061
|
Bumper plate |
1 |
|
|
17 |
N/A
|
Not available |
2 |
(only available in KIT4)(tip pad) |
|
18 |
N/A
|
Not available |
2 |
(only available in KIT6)(hose clamp) |
|
19 |
N/A
|
Not available |
2 |
(only available in KIT6 and KIT8)(washer) |
|
20 |
N/A
|
Not available |
3 |
(only available in KIT6)(screw M5 x 12 pan head phillips head stainless steel) |
|
21 |
N/A
|
Not available |
1 |
(only available in KIT1 and KIT6)(valve elbow) |
|
22 |
272-2180
|
Solution fill cap |
1 |
|
|
23 |
272-2182
|
Dry break cap |
1 |
|
|
24 |
N/A
|
Not available |
6 |
(only available in KIT6)(screw M8 x 16 hex head) |
|
25 |
572-7064
|
Stud M8-1.25 x 40 stainless steel |
2 |
|
|
26 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
N/S |
572-7070
|
3/8 qd elbows pump port kit |
1 |
|
|
KIT1 |
572-7046
|
Solution drain kit |
1 |
(includes 13 and 21) |
|
KIT2 |
572-7047
|
Solution cap kit |
1 |
|
|
KIT3 |
572-7024
|
Actuator kit |
1 |
(includes 1,9 and 11) |
|
KIT4 |
572-7048
|
Tip pad kit |
1 |
(includes 2,4 and 17) |
|
KIT5 |
572-7049
|
Pump filter and valve kit |
1 |
(includes 12d-12h, 12j,12l and 13) |
|
KIT6 |
572-7033
|
Solution hardware kit |
1 |
(includes 1-9, 13m, 13, 18-21, and 24) |
|
KIT9 |
572-7050
|
Distance sensor kit |
1 |
|
|
KIT10 |
572-7023
|
Disc deck solution hose kit |
1 |
(includes 12i,12k,12l, and 12n) |
|
KIT11 |
572-7032
|
Solution hose kit rev-deck |
1 |
(includes 12i, 12k,12l, and 12n) |
|
