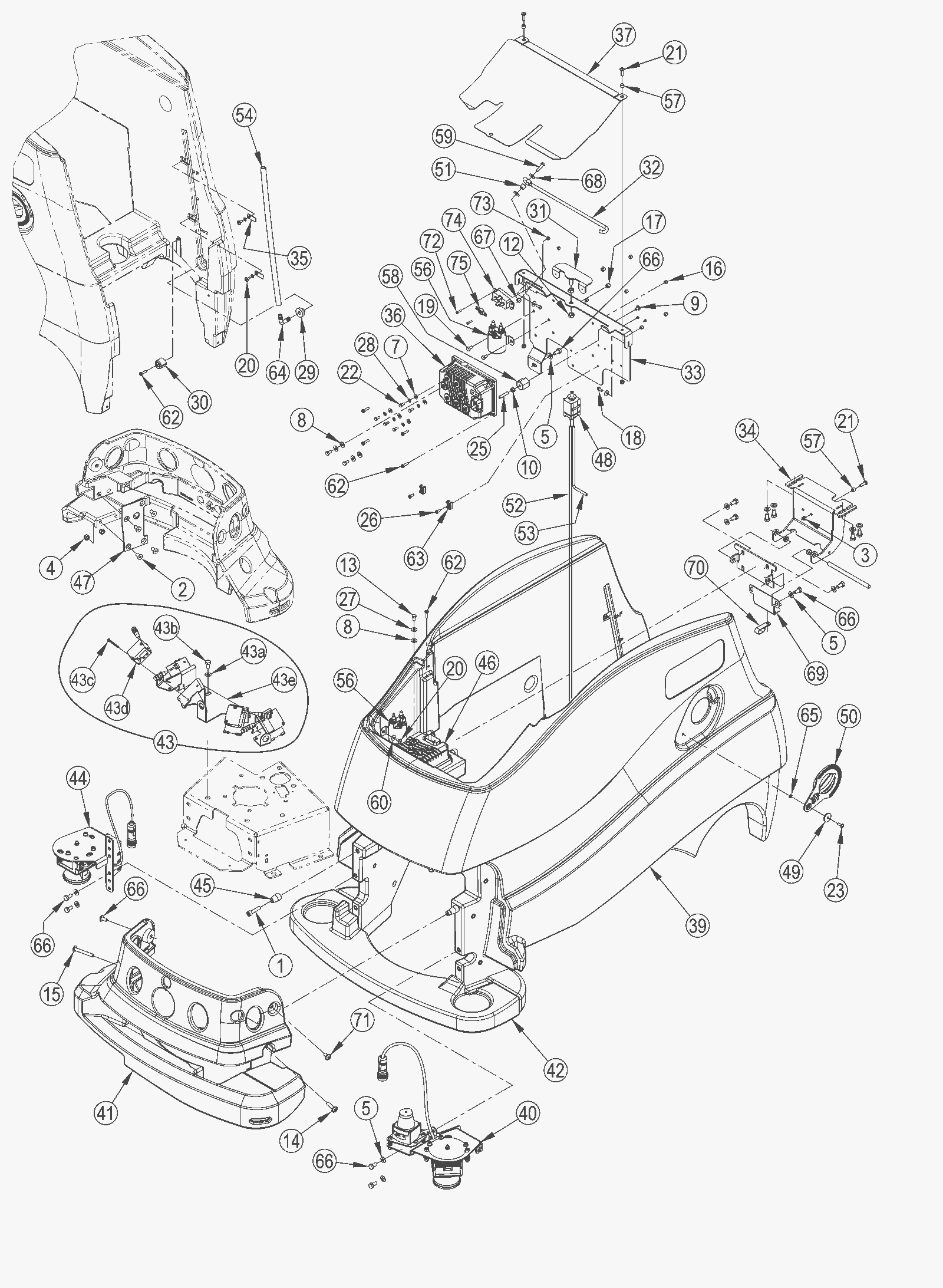

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
2 |
(only available in KIT6)(screw M8 x 35 socket cap head stainless steel) |
|
2 |
N/A
|
Not available |
4 |
(only available in KIT6)(vite) |
|
3 |
N/A
|
Not available |
3 |
(only available in KIT6)(nut M6 nylon hex loc thin) |
|
4 |
N/A
|
Not available |
2 |
(only available in KIT6)(nut M8 hex) |
|
5 |
N/A
|
Not available |
15 |
(only available in KIT6)(washer M8) |
|
7 |
N/A
|
Not available |
5 |
(only available in KIT6)(washer flat sae #10) |
|
8 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
6 |
(included in KIT6) |
|
9 |
N/A
|
Not available |
1 |
(only available in KIT6)(screw 1/4-20 x .38 pan head phillips) |
|
10 |
N/A
|
Not available |
1 |
(only available in KIT6)(nut 1/4-20 hex) |
|
12 |
N/A
|
Not available |
2 |
(only available in KIT6)(nut 3/8-16 nylon hex loc thin stainless steel) |
|
13 |
999-9166
|
Screw M4-.7 x 20mm socket cap stainless steel |
8 |
(included in KIT6) |
|
14 |
N/A
|
Not available |
1 |
(only available in KIT6)(screw M8 x 35) |
|
15 |
N/A
|
Not available |
1 |
(only available in KIT6)(screw M8 x 60) |
|
16 |
N/A
|
Not available |
4 |
(only available in KIT6)(nut M5-0.8 nylon hex loc) |
|
17 |
N/A
|
Not available |
2 |
(only available in KIT6)(nut M6-1 nylon hex loc) |
|
18 |
N/A
|
Not available |
2 |
(only available in KIT6)(screw M5-0.8 x 5mm hec loc) |
|
20 |
N/A
|
Not available |
4 |
(only available in KIT6)(screw M5-0.8 x 12mm phillips) |
|
21 |
999-1168
|
Screw M6-1 x 20mm pan head phillips stainless steel |
3 |
(included in KIT6) |
|
22 |
N/A
|
Not available |
5 |
(only available in KIT6)(screw M5-0.8 x 12mm hex thd to hd stainless steel) |
|
23 |
N/A
|
Not available |
1 |
(only available in KIT2 and KIT6)(screw M5 x 16) |
|
25 |
N/A
|
Not available |
1 |
(only available in KIT6)(stud) |
|
26 |
N/A
|
Not available |
2 |
(only available in KIT6)(screw 10-24 x .50 pan phillips thread forming) |
|
27 |
N/A
|
Not available |
6 |
(only available in KIT6)(washer 1/4) |
|
28 |
N/A
|
Not available |
5 |
(only aavailable in KIT6)(washer 5mm) |
|
29 |
N/A
|
Not available |
1 |
(only available in KIT6)(grommet) |
|
30 |
N/A
|
Not available |
2 |
(only available in KIT6)(pivot block) |
|
31 |
272-6761
|
Adjustment pad |
1 |
|
|
32 |
272-6763
|
Prop rod |
1 |
|
|
33 |
572-7035
|
Tank support bracket |
1 |
|
|
34 |
N/A
|
Not available |
1 |
(hinge assembly) |
|
34a |
572-7036
|
Hinge weldment |
1 |
|
|
34b |
272-6754
|
Hinge pin |
1 |
|
|
34c |
272-6757
|
Flange bearing |
1 |
|
|
34d |
272-6756
|
Hinge bracket |
1 |
|
|
35 |
N/A
|
Not available |
2 |
(only available in KIT6)(hose retainer plate) |
|
36 |
572-7037
|
High power module |
1 |
|
|
37 |
572-7038
|
Drip guard |
1 |
|
|
39 |
572-7039
|
Solution tank |
1 |
|
|
40 |
N/A
|
Not available |
1 |
(2d sensor assembly left) |
|
41 |
572-7040
|
Front cover |
1 |
|
|
42 |
572-7041
|
Front bumper |
1 |
|
|
43 |
N/A
|
Not available |
1 |
(sensor bracket assembly) |
|
43a |
N/A
|
Not available |
2 |
(only availablein KIT6)(washer M8 x 16) |
|
43b |
999-0783
|
Screw M8-1.25 x 16mm hex head |
2 |
|
|
43c |
N/A
|
Not available |
8 |
(only available in KIT9)(screw M4-0.7 x 40mm pan head phillips) |
|
43d |
N/A
|
Not available |
4 |
(only available in KIT9)(distance sensor) |
|
43e |
572-7042
|
Sensor mount weldment |
1 |
|
|
44 |
N/A
|
Not available |
1 |
(2d sensor assembly right) |
|
45 |
N/A
|
Not available |
2 |
(only available in KIT6)(tapered guide) |
|
46 |
572-7043
|
Speed controller |
1 |
|
|
47 |
572-7044
|
Front cover support plate |
1 |
|
|
48 |
272-7679
|
12V detergent pump |
1 |
|
|
49 |
N/A
|
Not available |
1 |
(only available in KIT2 and KIT6)(bushing) |
|
50 |
N/A
|
Not available |
1 |
(only available in KIT2)(solution fill cap) |
|
51 |
172-0068
|
Bushing |
1 |
(included in KIT6) |
|
53 |
N/A
|
Not available |
1 |
(only available in KIT10)(14" chemical reistant hose) |
|
54 |
209-0040
|
Hose 3/8 x 24 inch |
1 |
|
|
56 |
172-2163
|
24V solenoid 4 post (2 large 2 small) |
2 |
|
|
57 |
172-0185
|
Bushing |
3 |
|
|
58 |
N/A
|
Not available |
1 |
(only available in KIT6)(electrical mount) |
|
59 |
N/A
|
Not available |
1 |
(only available in KIT6)(screw M6-1.0 x 25mm hex thdtohd stainless steel) |
|
60 |
N/A
|
Not available |
2 |
(only available in KIT6)(washer M5 x 15 stainless steel) |
|
62 |
N/A
|
Not available |
8 |
(only available in KIT6)(screw M5 x 20 pan head phillips) |
|
63 |
N/A
|
Not available |
2 |
(only available in KIT6)(flat tie holder) |
|
64 |
N/A
|
Not available |
1 |
(only available in KIT6)(90 degree hosebarb) |
|
65 |
N/A
|
Not available |
3 |
(only available in KIT6)(washer M5 x 10 stainless steel) |
|
66 |
N/A
|
Not available |
15 |
(only available in KIT6)(screw M8 x 16) |
|
67 |
N/A
|
Not available |
1 |
(only available in KIT6)(nut M6 nylon hex loc stainless steel) |
|
69 |
572-6075
|
Bracket main harness connector |
1 |
|
|
70 |
N/A
|
Not available |
1 |
(only available in KIT12)(clamp) |
|
71 |
N/A
|
Not available |
2 |
(only available in KIT6)(screw M8 x 16) |
|
72 |
999-6705
|
Screw 6-32 x 5/8 inch pan head stainless steel |
2 |
|
|
73 |
370-0937
|
NUT-HEX INS-FIBRE 6-32 ZN |
2 |
|
|
74 |
572-7045
|
Midi fuse holder |
1 |
|
|
75 |
272-7716
|
100amp fuse |
1 |
|
|
KIT1 |
572-7046
|
Solution drain kit |
1 |
|
|
KIT2 |
572-7047
|
Solution cap kit |
1 |
(includes 23,49 and 50) |
|
KIT3 |
572-7024
|
Actuator kit |
1 |
|
|
KIT4 |
572-7048
|
Tip pad kit |
1 |
|
|
KIT5 |
572-7049
|
Pump filter and valve kit |
1 |
|
|
KIT6 |
572-7033
|
Solution hardware kit |
1 |
(includes 1-30, 35,43a,45,49,51,58-68) |
|
KIT9 |
572-7050
|
Distance sensor kit |
1 |
(includes 43c and 43d) |
|
KIT10 |
572-7023
|
Disc deck solution hose kit |
1 |
(includes 53) |
|
KIT11 |
572-7032
|
Solution hose kit rev-deck |
1 |
(includes 52) |
|
KIT12 |
572-6050
|
Electrical hardware kit |
1 |
(includes 70) |
|
