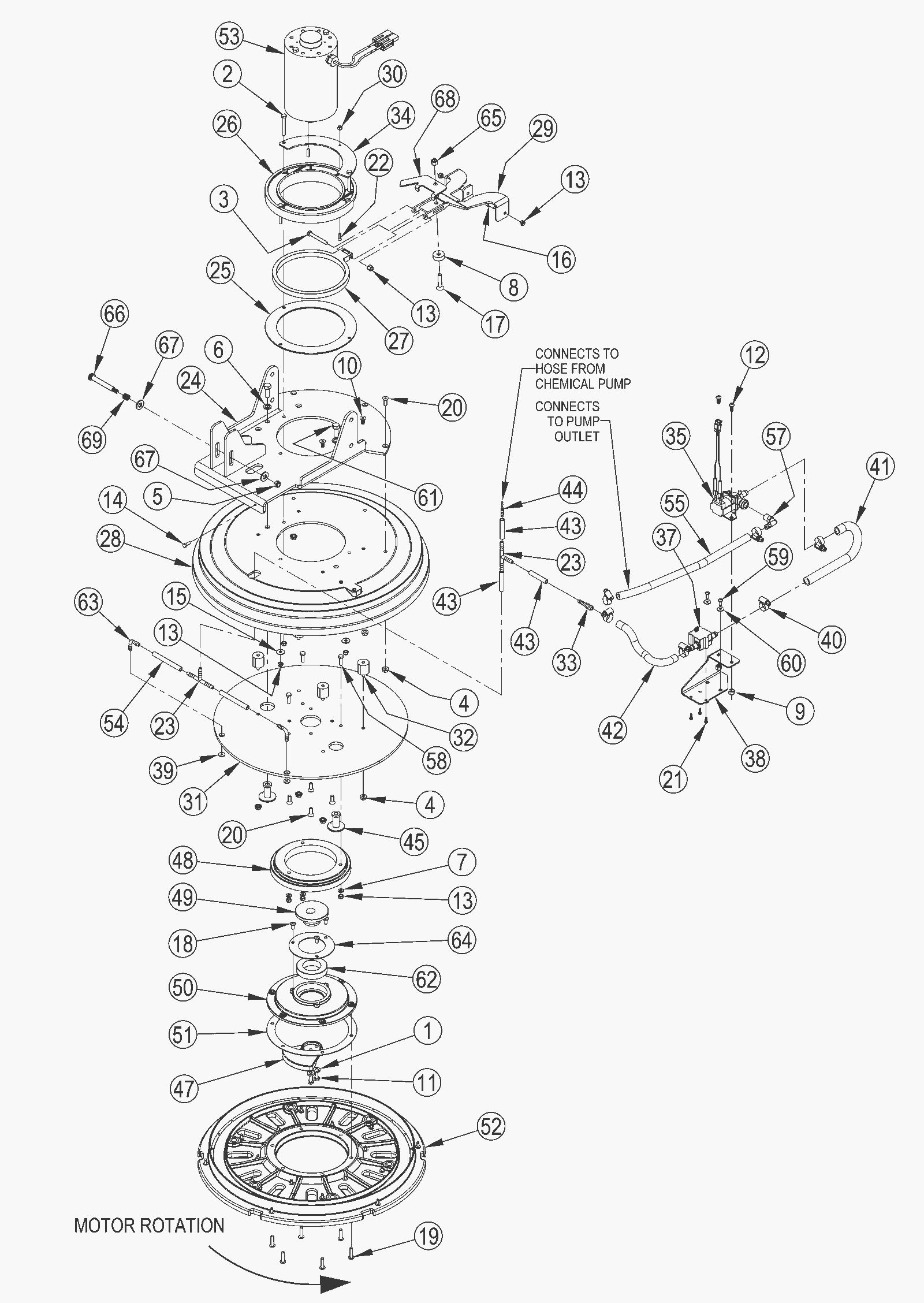

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
2 |
(only available in KIT1)(washer) |
|
2 |
N/A
|
Not available |
1 |
(only available in KIT1 and KIT2)(screw M6 x 45 hex head) |
|
3 |
N/A
|
Not available |
3 |
(only available in KIT1)(screw M6 x 50 hex head) |
|
4 |
N/A
|
Not available |
9 |
(only available in KIT1 and KIT3)(nut serrated hex) |
|
5 |
N/A
|
Not available |
1 |
(only available in KIT1 and KIT5)(nut M8 nylon hex loc thin) |
|
6 |
N/A
|
Not available |
2 |
(only available in KIT1)(washer spilt lock) |
|
7 |
N/A
|
Not available |
3 |
(only available in KIT1)(washer) |
|
8 |
N/A
|
Not available |
1 |
(only available in KIT1)(glide spacer) |
|
9 |
N/A
|
Not available |
2 |
(only available in KIT1)(nut 1/4-20 nylon hex loc stainless steel) |
|
10 |
999-1824
|
Screw 1/4-20 x 5/8 flat head socket stainless steel |
4 |
(included in KIT1 and KIT3) |
|
11 |
N/A
|
Not available |
2 |
(only available in KIT1)(screw 1/4-20 x .75 hex head loc) |
|
12 |
999-1480
|
Screw 1/4-20 x 5/8 button head socket cap stainless steel |
2 |
(included in KIT1) |
|
14 |
N/A
|
Not available |
1 |
(only available in KIT1)(screw M5-0.8 x 16mm hex loc stainless steel) |
|
15 |
N/A
|
Not available |
2 |
(only available in KIT1 and KIT2)(washer) |
|
16 |
N/A
|
Not available |
2 |
(only available in KIT1)(screw M8 x 16mm x M6-1.00 socket) |
|
17 |
999-1825
|
Screw 5/16-18 x 1 1/2 flat head socket SS |
1 |
(included in KIT1) |
|
18 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
3 |
(included in KIT1) |
|
19 |
999-0342
|
Screw 1/4-20 x 1 pan head phillips stainless steel |
6 |
(included in KIT1) |
|
20 |
999-1571
|
Screw 1/4-20 x 3/4 flat head socket stainless steel |
9 |
(included in KIT1) |
|
21 |
N/A
|
Not available |
3 |
(only available in KIT1)(screw M4 x 12mm t20 pan head plastite) |
|
22 |
N/A
|
Not available |
1 |
(only available in KIT1 and KIT2)(screw flat head phillips) |
|
23 |
N/A
|
Not available |
2 |
(only available in KIT4)(tee 1/4 hose barb) |
|
24 |
572-7027
|
Rev deck plate weldment |
1 |
|
|
25 |
N/A
|
Not available |
1 |
(only available in KIT2)(squeegee washer) |
|
26 |
N/A
|
Not available |
1 |
(only available in KIT2)(squeegee bushing) |
|
27 |
N/A
|
Not available |
1 |
(only available in KIT2)(pivot plate) |
|
28 |
272-6741
|
Scrub deck housing |
1 |
|
|
29 |
272-6742
|
Squeegee link weldment |
1 |
|
|
30 |
N/A
|
Not available |
1 |
(only available in KIT1 and KIT2)(nut 8-32 nylon hex loc) |
|
31 |
272-6743
|
Motor plate |
1 |
|
|
32 |
N/A
|
Not available |
4 |
(only available in KIT3)(isolator) |
|
33 |
N/A
|
Not available |
1 |
(only available in KIT4)(barb reducer) |
|
34 |
N/A
|
Not available |
1 |
(only available in KIT2)(squeegee bracket bushing) |
|
35 |
572-7019
|
Solenoid valve assembly |
1 |
|
|
37 |
572-7020
|
24v max flow meter |
1 |
|
|
38 |
572-7028
|
Valve bracket |
1 |
|
|
39 |
N/A
|
Not available |
2 |
(only available in KIT1 and KIT4)(washer) |
|
40 |
N/A
|
Not available |
6 |
(only available in KIT1 and KIT4)(Hose clamp) |
|
41 |
N/A
|
Not available |
1 |
(only available in KIT4)(spiral hose) |
|
42 |
N/A
|
Not available |
1 |
(only available in KIT4)(tube) |
|
43 |
N/A
|
Not available |
3 |
(only available in KIT4)(2 inch chemical resistant hose) |
|
44 |
N/A
|
Not available |
1 |
(only available in KIT4)(barb reducer) |
|
45 |
N/A
|
Not available |
2 |
(only available in KIT1)(short stud stablizer) |
|
47 |
272-9946
|
Counter weight |
1 |
|
|
48 |
272-6548
|
Splash shield |
1 |
|
|
49 |
272-6366
|
Eccentric |
1 |
|
|
50 |
272-9947
|
Motor driver |
1 |
|
|
51 |
272-6368
|
Driver gasket |
1 |
|
|
52 |
272-7405
|
Pad driver assembly |
1 |
|
|
53a |
272-9948
|
24V brush motor |
1 |
|
|
53b |
172-8951
|
Carbon brush and spring kit |
1 |
|
|
54 |
N/A
|
Not available |
2 |
(only available in KIT4)(pvc clear hose) |
|
55 |
N/A
|
Not available |
1 |
(only available in KIT4)(vinyl tube) |
|
57 |
N/A
|
Not available |
1 |
(only available in KIT4)(90 elbow 3/8 x 1/4npt barb) |
|
58 |
N/A
|
Not available |
3 |
(only available in KIT1)(screw M6 x 20 hex head f/thd stainless steel) |
|
59 |
N/A
|
Not available |
2 |
(only available in KIT1)(screw pan head thread forming) |
|
60 |
N/A
|
Not available |
2 |
(only availablein KIT1)(washer) |
|
61 |
999-1498
|
Screw 3/8-24 x 1 hex head stainless steel |
2 |
(included in KIT1) |
|
62 |
270-0065
|
Bearing |
1 |
|
|
63 |
N/A
|
Not available |
2 |
(only available in KIT4)(barbed elbow) |
|
64 |
572-7029
|
Bearing retainer |
1 |
|
|
65 |
N/A
|
Not available |
1 |
(only available in KIT1)(nut 5/16-18 nylon hex loc) |
|
66 |
N/A
|
Not available |
1 |
(only available in KIT1 , KIT5 and KIT6)(screw M8-1.25 x 10 x 65 socket shoulder) |
|
67 |
N/A
|
Not available |
2 |
(only available in KIT1 , KIT5 and KIT6)(washer) |
|
68 |
572-7030
|
Squeegee rev rotation stop |
1 |
|
|
69 |
N/A
|
Not available |
1 |
(only available in KIT1 , KIT5 and KIT6)(spring) |
|
KIT1 |
572-7031
|
Rev deck hardware kit |
1 |
(includes 1-22, 30,39,40,45 and 69) |
|
KIT2 |
272-6747
|
Squeegee pivot kit |
1 |
(includes 2,13, 15,22,25-30 and 34) |
|
KIT3 |
272-6748
|
Isolator kit |
1 |
(includes 4,10 and 32) |
|
KIT4 |
572-7032
|
Solution hose kit rev-deck |
1 |
(inlcudes 13, 23,33,39-41 and 44) |
|
KIT5 |
572-7024
|
Actuator kit |
1 |
(inlcudes 5 and 66-69) |
|
KIT6 |
572-7033
|
Solution hardware kit |
1 |
(includes 66-69) |
|
