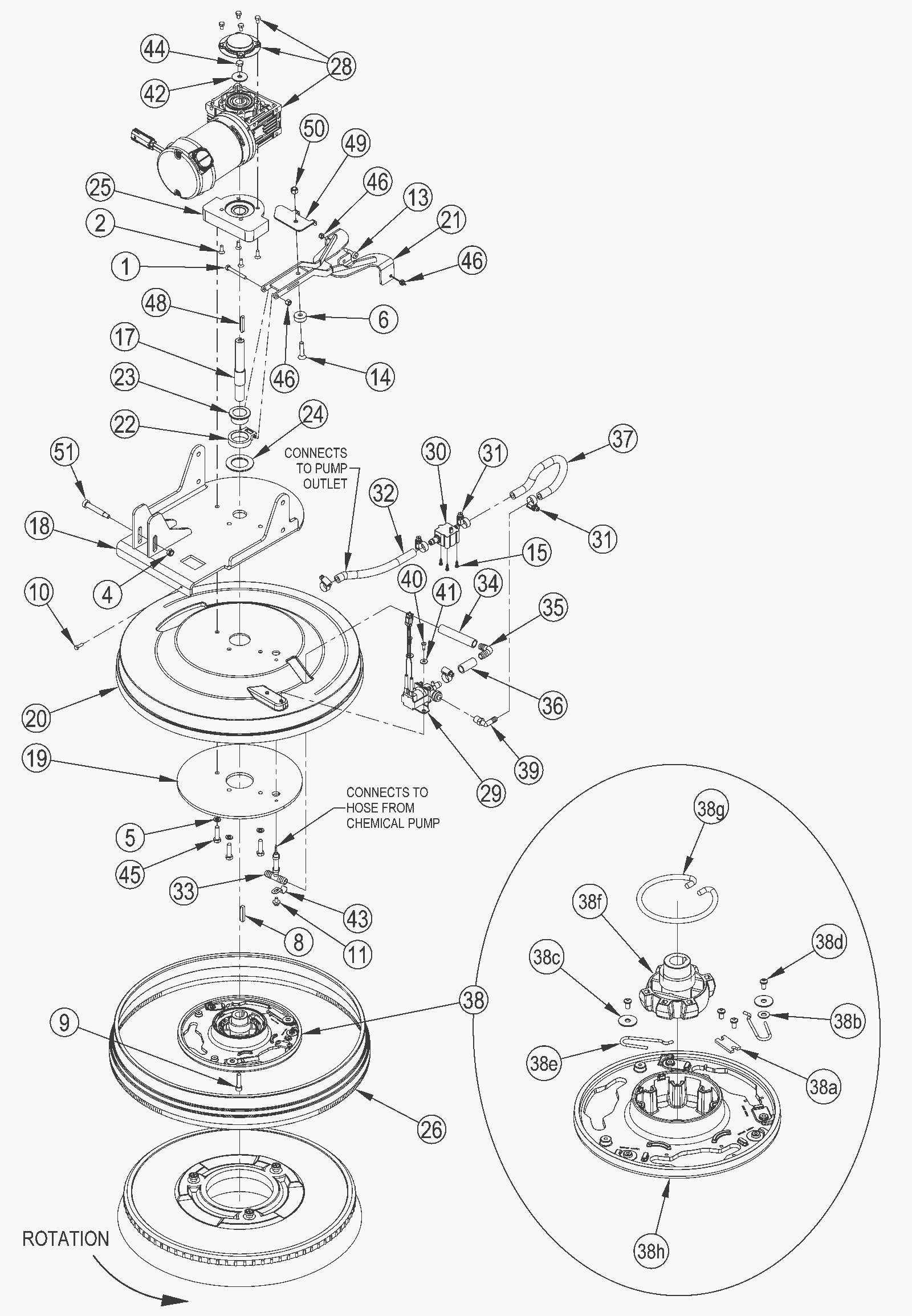

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(only available in KIT2)(screw M6 x 50 hex head full thread) |
|
2 |
N/A
|
Not available |
4 |
(only available in KIT2)(screw M6 x 16.0 flat socket head) |
|
4 |
N/A
|
Not available |
1 |
(only available in KIT2 and KIT4)(nut M8 nylon hex loc thin) |
|
5 |
N/A
|
Not available |
3 |
(only available in KIT2)(washer D.8 spilt lock) |
|
6 |
N/A
|
Not available |
1 |
(only available in KIT2)(glide spacer) |
|
8 |
N/A
|
Not available |
1 |
(only available in KIT2)(square keyway) |
|
9 |
999-1667
|
Screw 5/16-18 x 1 1/4 socket head stainless steel |
1 |
|
|
10 |
N/A
|
Not available |
1 |
(only available in KIT2)(screw M5-0.8 x 16mm hex loc stainless steel) |
|
11 |
N/A
|
Not available |
1 |
(only available in KIT2)(screw M6 x 10mm hex thread forming) |
|
13 |
N/A
|
Not available |
2 |
(only available in KIT2)(screw M8 x 16mm x M6 -1.00 socket head) |
|
14 |
999-1825
|
Screw 5/16-18 x 1 1/2 flat head socket SS |
1 |
|
|
15 |
N/A
|
Not available |
3 |
(only available in KIT2)(screw M4 x 12mm t20 pan head plastite) |
|
17 |
272-6727
|
Brush motor shaft |
1 |
|
|
18 |
272-6728
|
Deck lift plate weldment |
1 |
|
|
19 |
272-6729
|
Lower deck plate |
1 |
|
|
20 |
272-6730
|
Brush housing |
1 |
|
|
21 |
272-6731
|
Squeegee link weldment |
1 |
|
|
22 |
N/A
|
Not available |
1 |
(only available in KIT1)(squeegee pivot block) |
|
23 |
N/A
|
Not available |
1 |
(only available in KIT1)(flange bearing) |
|
24 |
N/A
|
Not available |
1 |
(only available in KIT1)(squeegee pivot washer) |
|
25 |
272-6732
|
Motor spacer |
1 |
|
|
26 |
272-6734
|
Bristle skirt |
1 |
|
|
28 |
572-7018
|
24VDC 140RPM 50HP motor |
1 |
|
|
29 |
572-7019
|
Solenoid valve assembly |
1 |
|
|
30 |
572-7020
|
24v max flow meter |
1 |
|
|
31 |
N/A
|
Not available |
5 |
(only available in KIT3)(hose clamp) |
|
32 |
N/A
|
Not available |
1 |
(only available in KIT3)(tube) |
|
33 |
N/A
|
Not available |
1 |
(only available in KIT3)(tee assembly) |
|
34 |
N/A
|
Not available |
1 |
(only available in KIT3)(hose PVC) |
|
35 |
N/A
|
Not available |
1 |
(only available in KIT3)(barbed elbow) |
|
36 |
N/A
|
Not available |
1 |
(only available in KIT3)(pvc clear hose) |
|
37 |
N/A
|
Not available |
1 |
(only available in KIT3)(spiral hose) |
|
38 |
272-3613
|
Right brush plate assembly |
1 |
|
|
38a |
172-0155
|
Stop plate |
1 |
|
|
38b |
999-1416
|
Washer 7/16 flat stainless steel |
1 |
|
|
38c |
172-0553
|
Washer 17/64 x 1/16 flat |
2 |
|
|
38d |
999-1833
|
Screw 10-14 x 3/8 pan head phillips stainless steel |
4 |
|
|
38e |
272-9883
|
Retainer spring |
2 |
|
|
38f |
272-7257
|
6 tab gimbal and collar assembly |
1 |
|
|
38g |
272-9884
|
Brush holder spring |
1 |
|
|
38h |
272-9885
|
Brush plate |
1 |
|
|
39 |
N/A
|
Not available |
1 |
(only available in KIT3(barb) |
|
40 |
N/A
|
Not available |
2 |
(only available in KIT2)(screw) |
|
41 |
N/A
|
Not available |
2 |
(only available in KIT2)(washer M5 x 15 stainless steel) |
|
42 |
N/A
|
Not available |
1 |
(only available in KIT2)(washer M8 plain) |
|
43 |
272-0742
|
Clamp |
1 |
|
|
44 |
N/A
|
Not available |
1 |
(only available in KIT2)(screw M8 x 16 hex head scotch grip) |
|
45 |
N/A
|
Not available |
3 |
(only available in KIT2)(screw M8 x 30 hex head stainless steel) |
|
48 |
N/A
|
Not available |
1 |
(only available in KIT2)(key) |
|
49 |
572-7021
|
Squeegee rotation stop disc |
1 |
|
|
50 |
N/A
|
Not available |
1 |
(only available in KIT2)(nut 5/16-18 nylon hex loc) |
|
51 |
N/A
|
Not available |
1 |
(only available in KIT2 and KIT4)(screw M10 x 50mm x M8-1.25 socket head) |
|
KIT1 |
272-6736
|
Squeegee pivot kit |
1 |
(includes 22-24) |
|
KIT2 |
572-7022
|
Disc deck hardware kit |
1 |
(includes 1-15 and 39-51) |
|
KIT3 |
572-7023
|
Disc deck solution hose kit |
1 |
(includes 31-37 and 39) |
|
KIT4 |
572-7024
|
Actuator kit |
1 |
(includes 51) |
|
