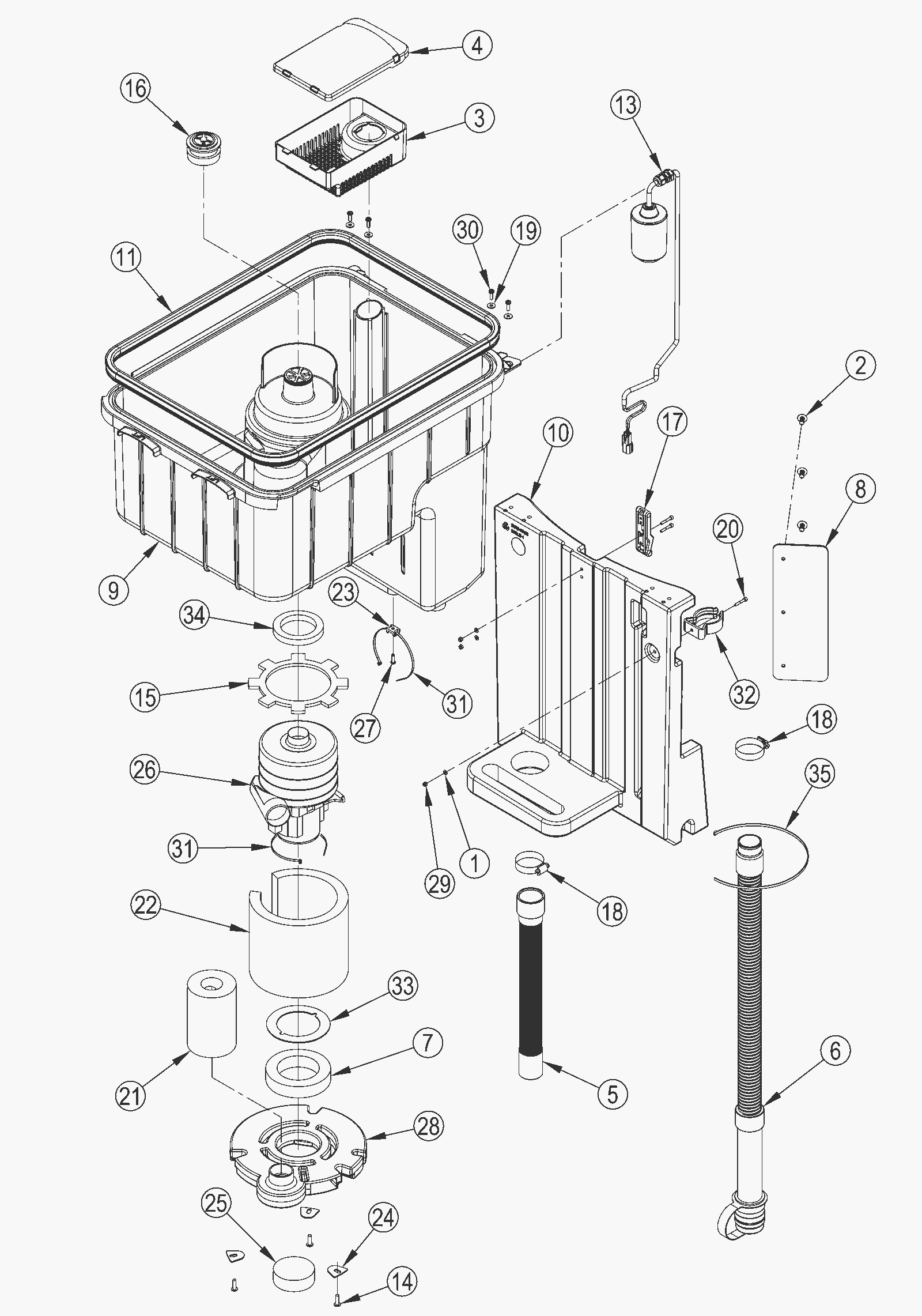

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
3 |
(only available in KIT1,KIT3 and KIT6)(washer) |
|
2 |
N/A
|
Not available |
3 |
(only available in KIT6)(nylon rivet) |
|
3 |
N/A
|
Not available |
1 |
(only available in KIT2)(debris cage) |
|
4 |
N/A
|
Not available |
1 |
(only available in KIT2)(debris tray cover) |
|
5 |
572-7010
|
Modified vac hose assembly |
1 |
|
|
6 |
272-6716
|
Drain hose 1 1/2 x 34 inches |
1 |
|
|
7 |
N/A
|
Not available |
1 |
(vacuum support motor gasket) |
|
8 |
272-6718
|
Splash guard |
1 |
|
|
9 |
572-7011
|
Recovery tank |
1 |
|
|
10 |
572-7012
|
Back panel |
1 |
|
|
11 |
572-7013
|
Recovery tank gasket |
1 |
|
|
13 |
N/A
|
Not available |
1 |
(only available in KIT7)(120v mechanical float switch) |
|
14 |
N/A
|
Not available |
3 |
(only available in KIT6)(screw M6 x 20) |
|
15 |
172-1356
|
Vac motor gasket |
1 |
(included in KIT4) |
|
16 |
272-2106
|
Inlet screen |
1 |
|
|
17 |
N/A
|
Not available |
1 |
(only available in KIT1)(draw latch) |
|
18 |
997-2000
|
Hose clamp |
2 |
(included in KIT6) |
|
19 |
N/A
|
Not available |
4 |
(only available in KIT6)(washer M5 stainless steel) |
|
20 |
N/A
|
Not available |
3 |
(only available in KIT1,KIT3 and KIT6)(screw M4 x 25 cap hex head socket) |
|
21 |
N/A
|
Not available |
1 |
(only available in KIT5)(insulation tube) |
|
22 |
N/A
|
Not available |
1 |
(only available in KIT5)(insulation acoustic panel) |
|
23 |
N/A
|
Not available |
1 |
(only available in KIT6)(flat tie holder) |
|
24 |
N/A
|
Not available |
3 |
(only available in KIT6)(cover plate) |
|
25 |
272-6344
|
Filter |
1 |
|
|
26a |
N/A
|
Not available |
1 |
(only available in KIT4)(24v 3 stage vacuum motor) |
|
26b |
270-8269
|
Carbon brush kit |
1 |
|
|
27 |
N/A
|
Not available |
1 |
(only available in KIT6)(screw 5 x 16 rolling thread) |
|
28 |
572-3651
|
COVER-VACUUM MOTOR PKD |
1 |
|
|
29 |
N/A
|
Not available |
3 |
(only available in KIT1,KIT3 and KIT6)(nut M4 nylon thin hex loc stainless steel) |
|
30 |
N/A
|
Not available |
4 |
(only available in KIT6)(screw M5 x 16 pan head phillips stainless steel) |
|
31 |
N/A
|
Not available |
2 |
(only available in KIT6)(cable tie) |
|
32 |
N/A
|
Not available |
1 |
(only available in KIT3 and KIT6)(hose clamp) |
|
33 |
572-7014
|
Vacuum ring |
1 |
|
|
34 |
272-0430
|
Vacuum duct gasket |
1 |
|
|
35 |
N/A
|
Not available |
1 |
(only available in KIT6)(cable tie) |
|
KIT1 |
272-6692
|
Draw latch kit |
1 |
(includes 1,17,20 and 29) |
|
KIT2 |
272-6721
|
Debris cage kit |
1 |
(includes 3, and 4) |
|
KIT3 |
272-6722
|
Hose clamp kit |
1 |
(includes 1,20,29, and 32) |
|
KIT4 |
272-6723
|
Vacuum motor kit |
1 |
(includes 15 and 26a) |
|
KIT5 |
272-6725
|
Vacuum motor insulation kit |
1 |
(includes 21 and 22) |
|
KIT6 |
572-7015
|
Recovery hardware kit |
1 |
(includes 1,2,14,18-20,23,24,27,29-32, and 35) |
|
KIT7 |
572-7016
|
Float switch kit |
1 |
(inlcudes 13) |
|
N/S |
572-7017
|
Jumper harness |
1 |
|
|
