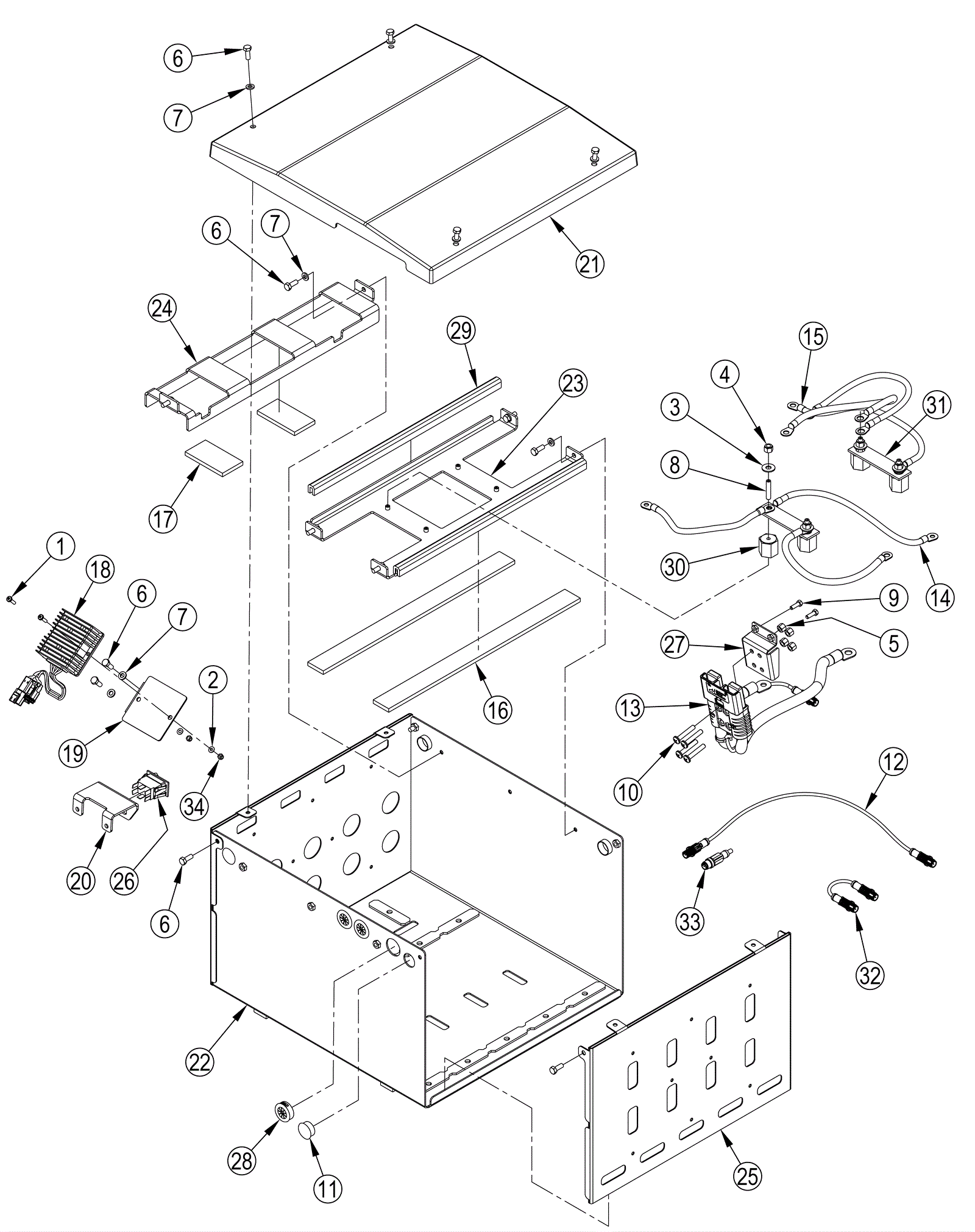

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
272-9523
|
Washer 4 x 9 |
2 |
|
|
3 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
4 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
|
5 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
4 |
|
|
6 |
272-1599
|
Bolt M6 x 15mm hex head nylok |
16 |
|
|
7 |
372-1036
|
Washer 6mm |
12 |
|
|
8 |
472-3537
|
SCR SOC SET LOC 1/4-20X1.25 ZP |
4 |
|
|
9 |
472-3552
|
SCR-HEX LOC SS M5-0.8 X 16MM |
2 |
|
|
11 |
572-6092
|
Cap-7/8 dia black |
4 |
|
|
12 |
572-6093
|
0.5m long control cable assembly |
1 |
|
|
13 |
572-6094
|
Power/ control bracket harness assembly |
1 |
|
|
14 |
572-6095
|
Battery to busbar negative cable assembly |
3 |
|
|
15 |
572-6096
|
Battery to busbar positive cable assembly |
3 |
|
|
16 |
572-6097
|
395 x 32mm vibration foam |
2 |
|
|
17 |
572-6098
|
77 x 42mm virbration foam |
2 |
|
|
18 |
572-6099
|
24v dc converter |
1 |
|
|
19 |
572-7000
|
Regulator bracket |
1 |
|
|
20 |
572-7001
|
Switch bracket |
1 |
|
|
21 |
572-7002
|
Sc50 battery box cover |
1 |
|
|
22 |
572-7003
|
Battery box base weldment |
1 |
|
|
23 |
572-7004
|
Battery box brace assembly |
1 |
|
|
24 |
572-7005
|
Battery box retainer |
1 |
|
|
25 |
572-7006
|
Side cover weldment |
2 |
|
|
26 |
272-0487
|
2 position rocker switch |
1 |
|
|
27 |
572-6089
|
Power cable bracket |
1 |
|
|
28 |
572-7007
|
20mm expandable grommet |
3 |
|
|
29 |
272-9689
|
Trim |
2 |
|
|
30 |
172-0103
|
Electrical mount |
4 |
|
|
31 |
372-1517
|
Ground bar |
2 |
|
|
32 |
572-7008
|
Neigbour module control cable |
1 |
|
|
33 |
572-7009
|
Termination resistor |
1 |
|
|
34 |
999-0955
|
Nut M4-.7 hex nylon lock |
2 |
|
|
