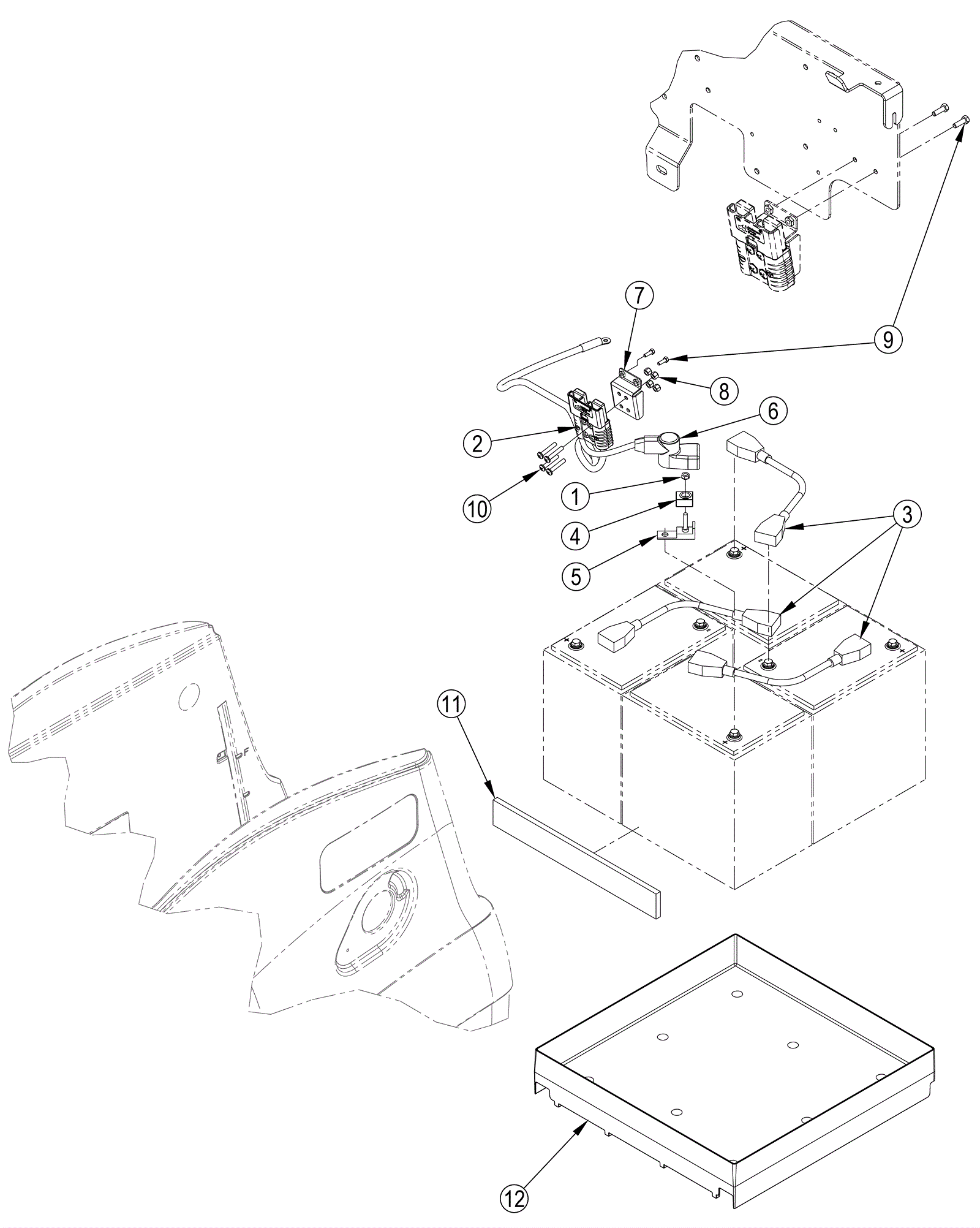

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(only available in KIT1)(nut 1/4-20 hex) |
|
2 |
572-6087
|
Battery power harness assembly |
1 |
|
|
3 |
272-8585
|
Battery jumper cable |
3 |
|
|
4 |
572-6088
|
100 amp fuse |
1 |
|
|
5 |
472-4933
|
HOLDER-FUSE |
1 |
|
|
6 |
372-1324
|
Fuse boot holder |
1 |
|
|
7 |
572-6089
|
Power cable bracket |
1 |
|
|
8 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
4 |
|
|
9 |
472-3552
|
SCR-HEX LOC SS M5-0.8 X 16MM |
2 |
|
|
11 |
572-6090
|
15.0 x 4 x 2.0 battery spacer |
1 |
|
|
12 |
272-6647
|
Battery tray |
1 |
|
|
KIT1 |
572-6050
|
Electrical hardware kit |
1 |
(includes 1) |
|
