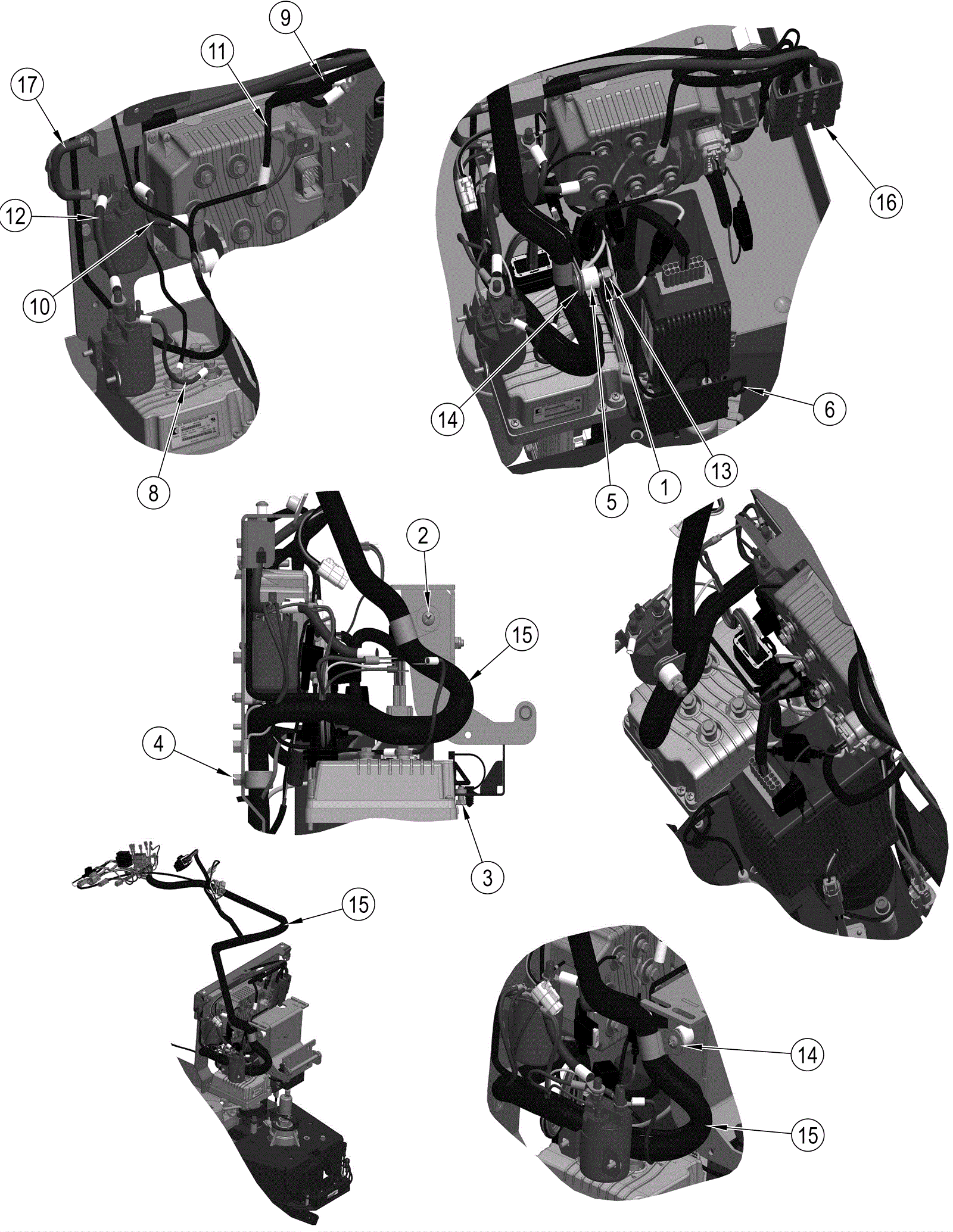

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
172-3762
|
Washer 6 X 12 1/2 flat (OBSOLETE) |
$7.59
|
1 |
|
usually ships 1-5 days |
2 |
999-0523
|
Screw 1/4-20 x 1 1/2 pan head phillips stainless steel |
$0.99
|
1 |
|
ships same day |
3 |
999-9116
|
Screw M6-1 x 12mm hex head stainless steel |
$0.99
|
1 |
|
ships same day |
4 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
$1.32
|
2 |
|
ships same day |
5 |
572-6074
|
Hinge spacer |
$9.27
|
1 |
|
usually ships 16-41 days |
6 |
572-6075
|
Bracket main harness connector |
$27.64
|
1 |
|
usually ships 16-41 days |
8 |
572-6076
|
10 awg red wire assembly |
$23.01
|
1 |
|
usually ships 16-41 days |
9 |
572-6077
|
10 awg black wire assembly |
$21.57
|
1 |
|
usually ships 16-41 days |
10 |
572-6078
|
8 awg red wire assembly |
$23.01
|
1 |
|
usually ships 16-41 days |
11 |
572-6079
|
8 awg black assembly |
$21.57
|
1 |
|
usually ships 16-41 days |
12 |
572-6080
|
6 awg red wire assembly |
$23.01
|
1 |
|
usually ships 16-41 days |
13 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
$1.18
|
1 |
|
ships same day |
14 |
272-9984
|
Washer .266 x .906 x .06 flat stainless steel |
$9.26
|
1 |
|
usually ships 1-5 days |
15a |
572-6081
|
Main harness |
$2,119.68
|
1 |
(included in KIT1 and KIT2) (after SN 1000073529) |
usually ships 16-41 days |
15b |
372-3737
|
Main harness |
$1,684.68
|
1 |
(before SN 1000072368) |
usually ships 16-41 days |
16 |
572-6082
|
power mach/control harness assembly |
$220.21
|
1 |
|
usually ships 16-41 days |
17 |
572-6083
|
Fuse to cont pos cable assembly |
$21.64
|
1 |
|
usually ships 16-41 days |
KIT1 |
572-6084
|
Main harness speed pot kit |
$104.61
|
1 |
(includes 15) |
usually ships 16-41 days |
KIT2 |
572-6085
|
Sc50 fuse kit |
$18.26
|
1 |
(includes 15) |
usually ships 16-41 days |
N/S |
572-6086
|
Mini 3A fuse |
$6.22
|
1 |
|
usually ships 16-41 days |
