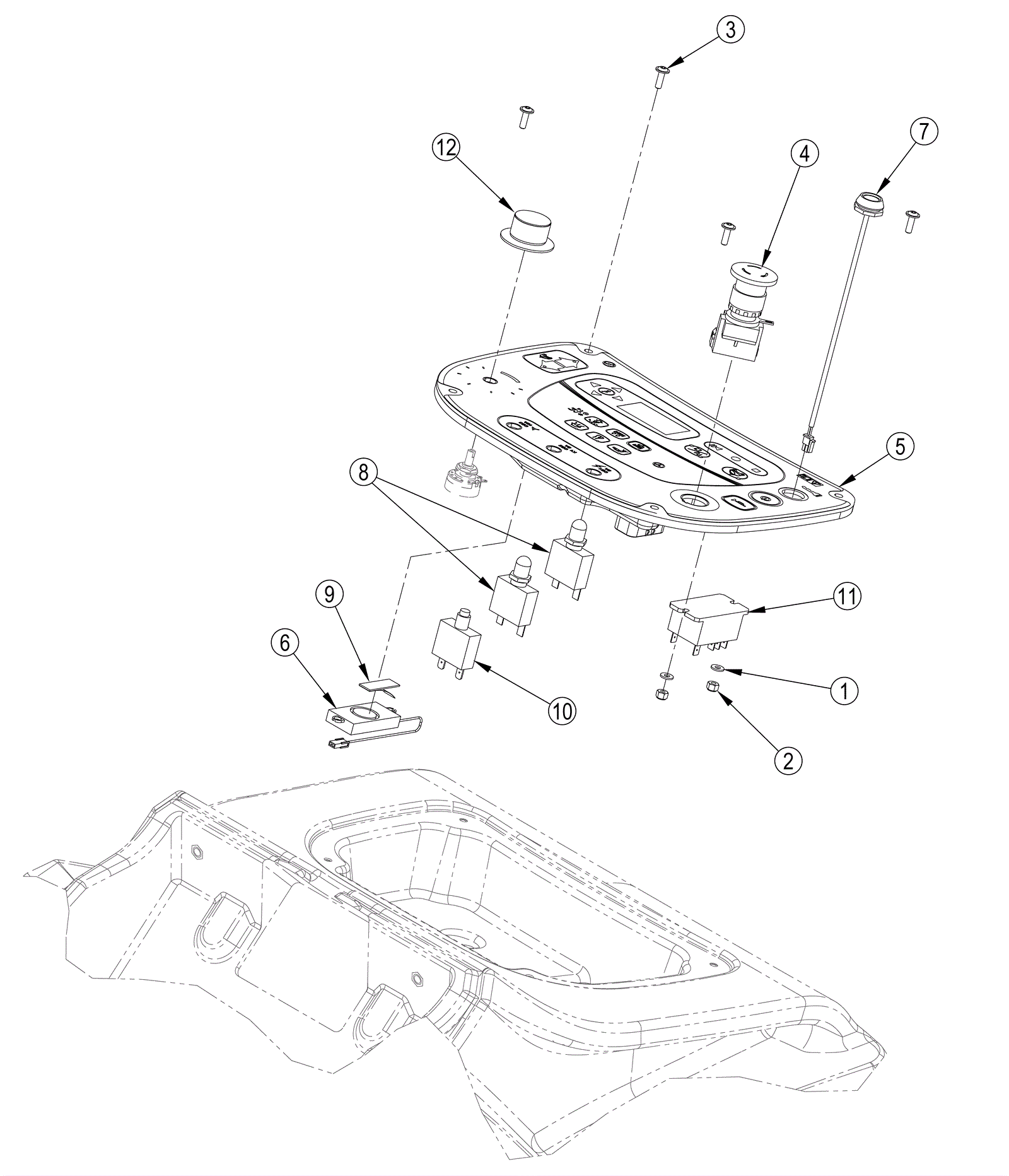

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0412
|
Washer #8 SAE flat |
2 |
|
|
2 |
N/A
|
Not available |
2 |
(only available in KIT1)(nut 8-32 nylon hex loc) |
|
3 |
N/A
|
Not available |
4 |
(only available in KIT1,KIT2 AND KIT5)(screw M5 x 15) |
|
4 |
172-9233
|
Emergency stop button |
1 |
|
|
5a |
N/A
|
Not available |
1 |
(only available in KIT2)(interface panel assembly) |
|
5b |
572-6052
|
Interface panel kit |
1 |
(included in KIT5) |
|
6 |
N/A
|
Not available |
1 |
(only available in KIT4)(speaker 4-w) |
|
7 |
472-5047
|
IBUTTON-PROBE |
1 |
|
|
8 |
991-1628
|
5amp circuit breaker |
2 |
|
|
9 |
N/A
|
Not available |
1 |
(only available in KIT4)(heavy duty adhesion tape 1.5in) |
|
10 |
272-9755
|
15amp circuit breaker |
1 |
|
|
11 |
270-0781
|
Relay |
1 |
|
|
12 |
170-1876
|
Traverse control knob |
1 |
|
|
KIT1 |
572-6050
|
Electrical hardware kit |
1 |
(includes 1-3) |
|
KIT2 |
572-6053
|
User interface kit |
1 |
(includes 3 and 5a) |
|
KIT4 |
572-6054
|
Speaker kit |
1 |
(includes 6 and 9) |
|
KIT5 |
572-6052
|
Interface panel kit |
1 |
(includes 3 and 5b) |
|
