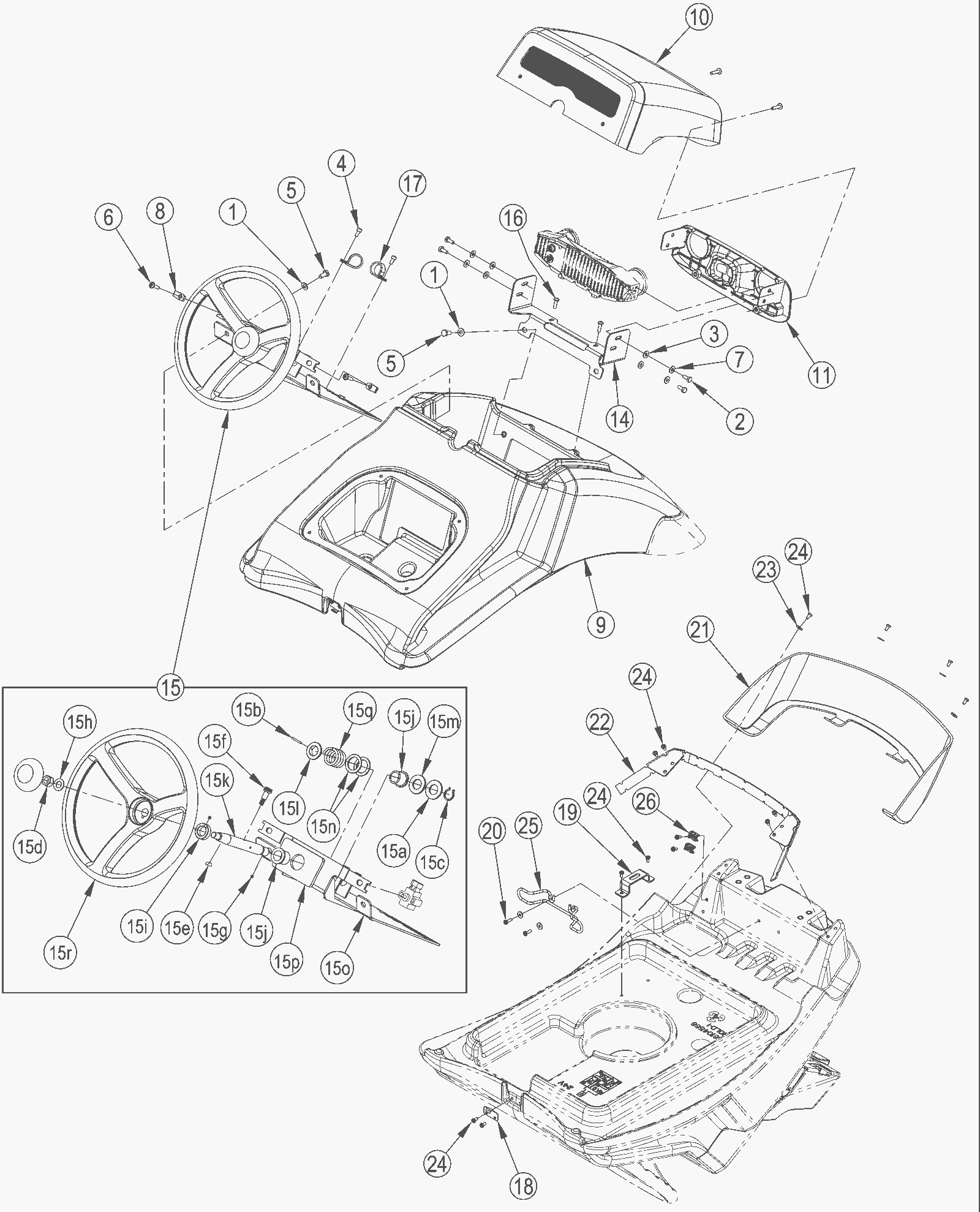

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
6 |
(only available in KIT3)(washer M8 x 16) |
|
2 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
4 |
|
|
3 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
|
|
4 |
172-0768
|
Screw 6 x 12 socket thread to head |
1 |
|
|
5 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
6 |
|
|
6 |
N/A
|
Not available |
4 |
(only available in KIT3)(screw M6 x 25) |
|
7 |
372-1011
|
Washer 1/4 |
4 |
|
|
8 |
N/A
|
Not available |
2 |
(only available in KIT3)(long M6 U-nut) |
|
9 |
572-6042
|
Top hood |
1 |
|
|
10 |
572-6043
|
Hood cover assembly |
1 |
|
|
11 |
572-6044
|
Camera bezel |
1 |
|
|
14 |
572-6045
|
Camera brakcet |
1 |
|
|
15 |
N/A
|
Not available |
1 |
(steering assembly) |
|
15a |
999-0630
|
Washer 3/4 SAE flat |
1 |
|
|
15b |
N/A
|
Not available |
1 |
(only available in KIT2)(dowel pin) |
|
15c |
N/A
|
Not available |
1 |
(only available in KIT2)(750 shaft ret ext ring) |
|
15d |
999-1122
|
Nut M12-1.75 hex nylon insert lock stainless steel |
1 |
|
|
15e |
N/A
|
Not available |
1 |
(only available in KIT2)(key 5 x 6.5 din 6888 din) |
|
15f |
N/A
|
Not available |
1 |
(only available in KIT2)(screw 10 x 16-M8-1.25 socket head shoulder) |
|
15g |
N/A
|
Not available |
2 |
(only available in KIT2)(screw M5-0 8 x 5 socket head) |
|
15h |
N/A
|
Not available |
1 |
(only available in KIT3)(washer) |
|
15i |
N/A
|
Not available |
1 |
(only available in KIT2)(collar) |
|
15j |
N/A
|
Not available |
2 |
(only available in KIT2)(flange bearing) |
|
15k |
N/A
|
Not available |
1 |
(only available in KIT2)(steering shaft) |
|
15l |
N/A
|
Not available |
1 |
(only available in KIT2)(Spring support bracket) |
|
15m |
N/A
|
Not available |
1 |
(only available in KIT2)(washer) |
|
15n |
N/A
|
Not available |
2 |
(only available in KIT2)(washer) |
|
15o |
N/A
|
Not available |
1 |
(only available in KIT2)(electrical panel weldment hood) |
|
15p |
N/A
|
Not available |
1 |
(only available in KIT2)(electrical plate gasket) |
|
15q |
N/A
|
Not available |
1 |
(only available in KIT2)(compression spring) |
|
15r |
272-8887
|
Steering wheel |
1 |
|
|
16 |
N/A
|
Not available |
2 |
(only available in KIT3)(screw M6 x 20) |
|
17 |
N/A
|
Not available |
1 |
(only available in KIT6)(p clamp 56e00623) |
|
18 |
N/A
|
Not available |
1 |
(only available in KIT1 and KIT3)(latch hook) |
|
19 |
272-6693
|
Prop rod bracket |
1 |
|
|
20 |
N/A
|
Not available |
2 |
(only available in KIT3)(screw M5 x 15 pan head stainless steel) |
|
21 |
572-6046
|
Light bar lens |
1 |
|
|
22 |
N/A
|
Not available |
1 |
(only available in KIT4)(lightstrip weldment) |
|
23 |
N/A
|
Not available |
6 |
(only available in KIT3)(washer M5 x 15 stainless steel) |
|
24 |
N/A
|
Not available |
14 |
(only available in KIT1 and KIT3)(screw M5 x 10 pan head phillips stainless steel) |
|
25 |
N/A
|
Not available |
1 |
(only available in KIT5)(cable support) |
|
26 |
N/A
|
Not available |
2 |
(only available in KIT3)(flat tie holder) |
|
KIT1 |
272-6692
|
Draw latch kit |
1 |
(includes 18 and 24) |
|
KIT2 |
572-6047
|
Steering assembly kit |
1 |
(includes 15a-15c,15e-15g,15i-15q) |
|
KIT3 |
572-6048
|
Control hardware kit |
1 |
(includes 1-8,15d,15h,16,18,20,23,24, and 26) |
|
KIT4 |
572-6049
|
Light bar kit |
1 |
(includes 22) |
|
KIT5 |
372-1321
|
Cable support |
1 |
(includes 25) |
|
KIT6 |
572-6050
|
Electrical hardware kit |
1 |
(includes 17) |
|
